3.3.4.2 Digital Input 2

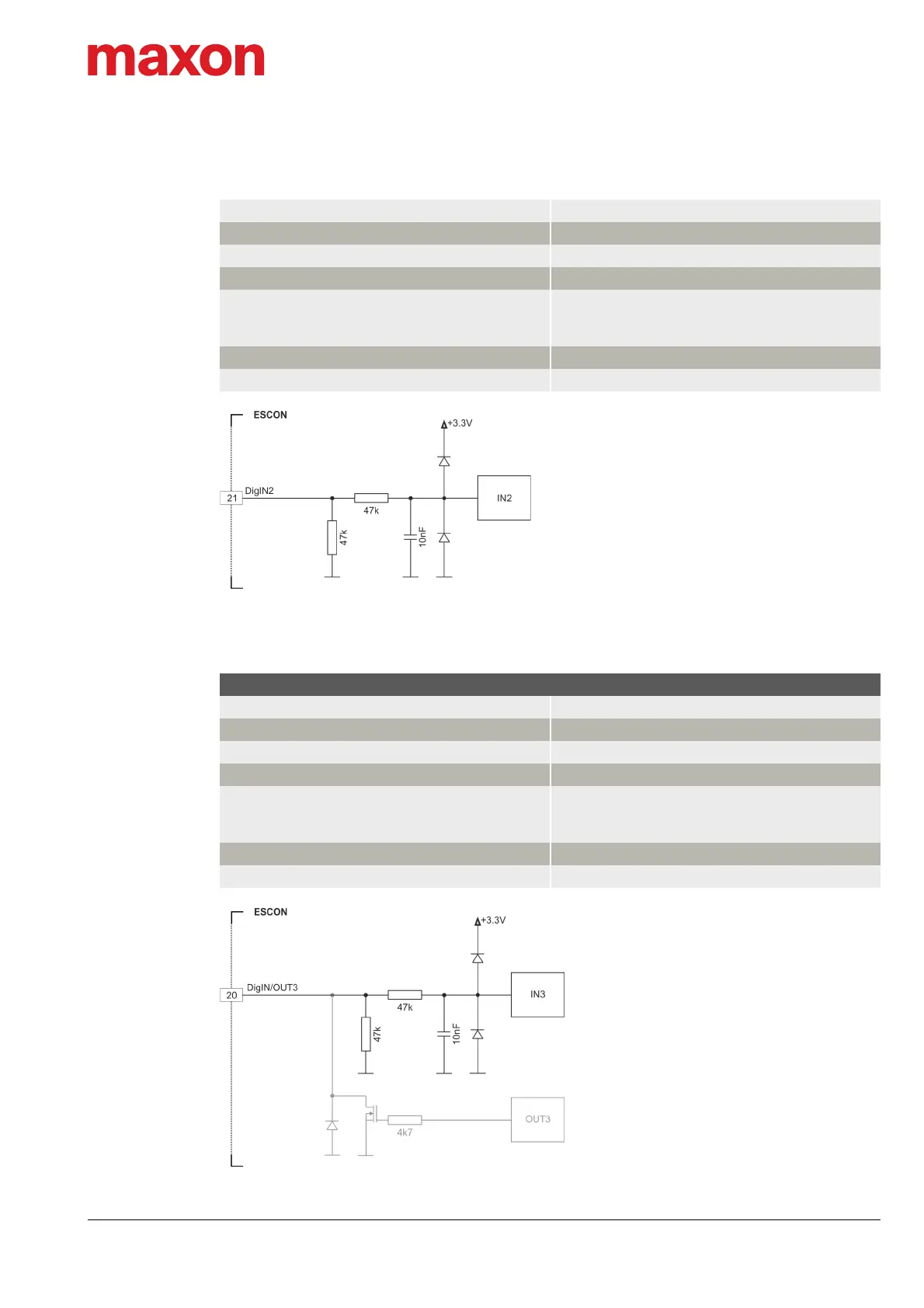

Figure 3-9 DigIN2 Circuit
3.3.4.3 Digital Inputs/Outputs 3 and 4
Figure 3-10 DigIN3 Circuit (analogously valid also for DigIN4)
Input voltage 0…36 VDC
Max. input voltage +36 VDC/−36 VDC
Logic 0 typically <1.0 V
Logic 1 typically >2.4 V
Input resistance
typically 47 kΩ (<3.3 V)
typically 38.5 kΩ (@ 5 V)
typically 25.5 kΩ (@ 24 V)
Input current at logic 1 typically 130 µA @ +5 VDC
Switching delay <8 ms
DigIN
Input voltage 0…36 VDC
Max. input voltage +36 VDC
Logic 0 typically <1.0 V
Logic 1 typically >2.4 V
Input resistance
typically 47 kΩ (<3.3 V)
typically 38.5 kΩ (@ 5 V)
typically 25.5 kΩ (@ 24 V)
Input current at logic 1 typically 130 µA @ +5 VDC
Switching delay <8 ms
