Maxon ESCON 50/5 - 5.7.3 MoBo Wiring; 5.7.3.1 MoBo DC Motor Wiring

Motherboard Design Guide
ESCON Module Motherboard (438779)
ESCON Module 50/5 Hardware Reference
5-46 CCMC | 2021-08 | rel9051
5.7.3 Wiring
Note
The USB interface is located directly at the ESCON Module 50/5.
Note
The subsequent diagrams feature this symbol:
• Ground safety earth connection (optional)
5.7.3.1 DC Motors
MAXON DC MOTOR

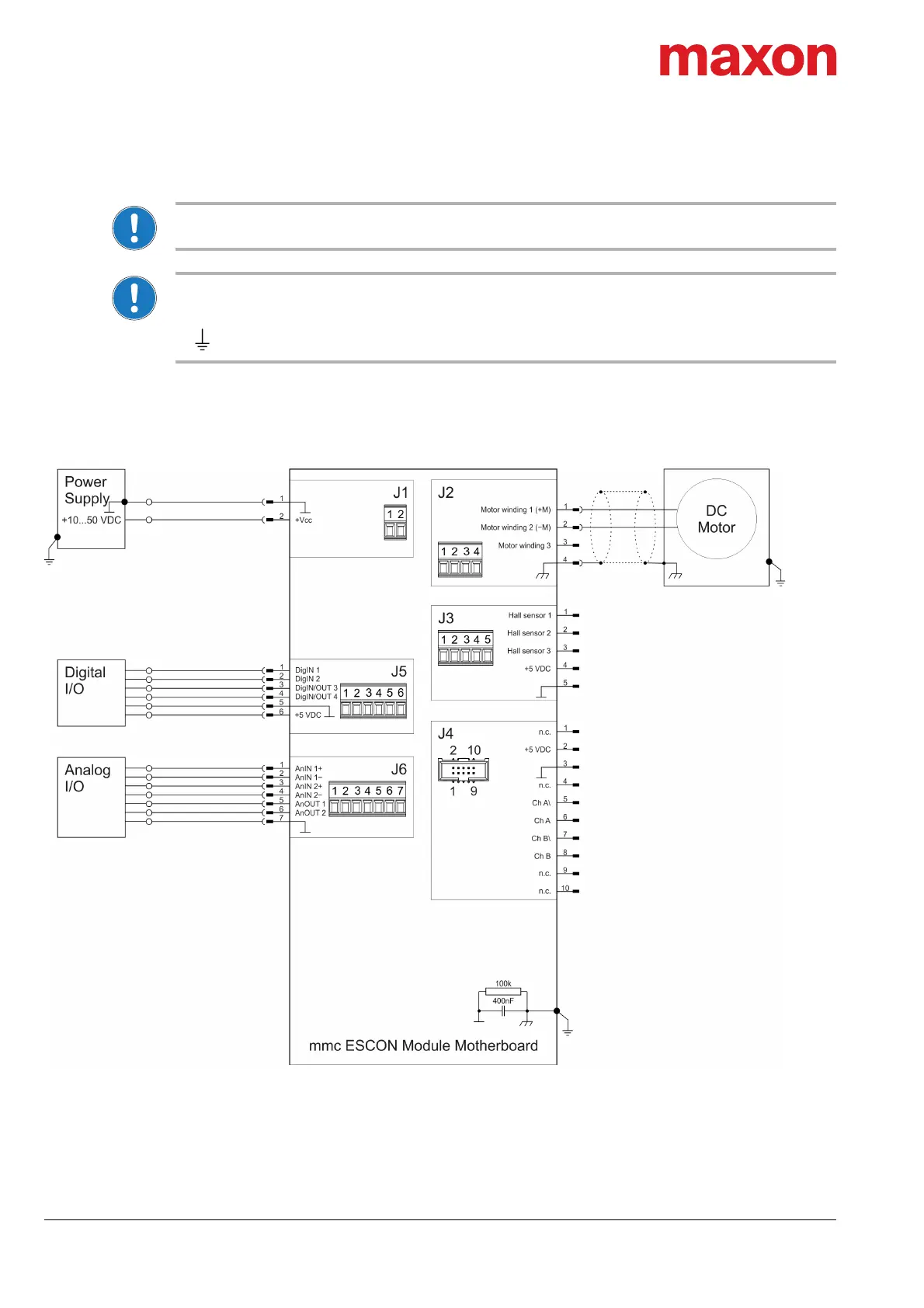

Figure 5-36 ESCON Module MoBo – maxon DC motor (J2)
