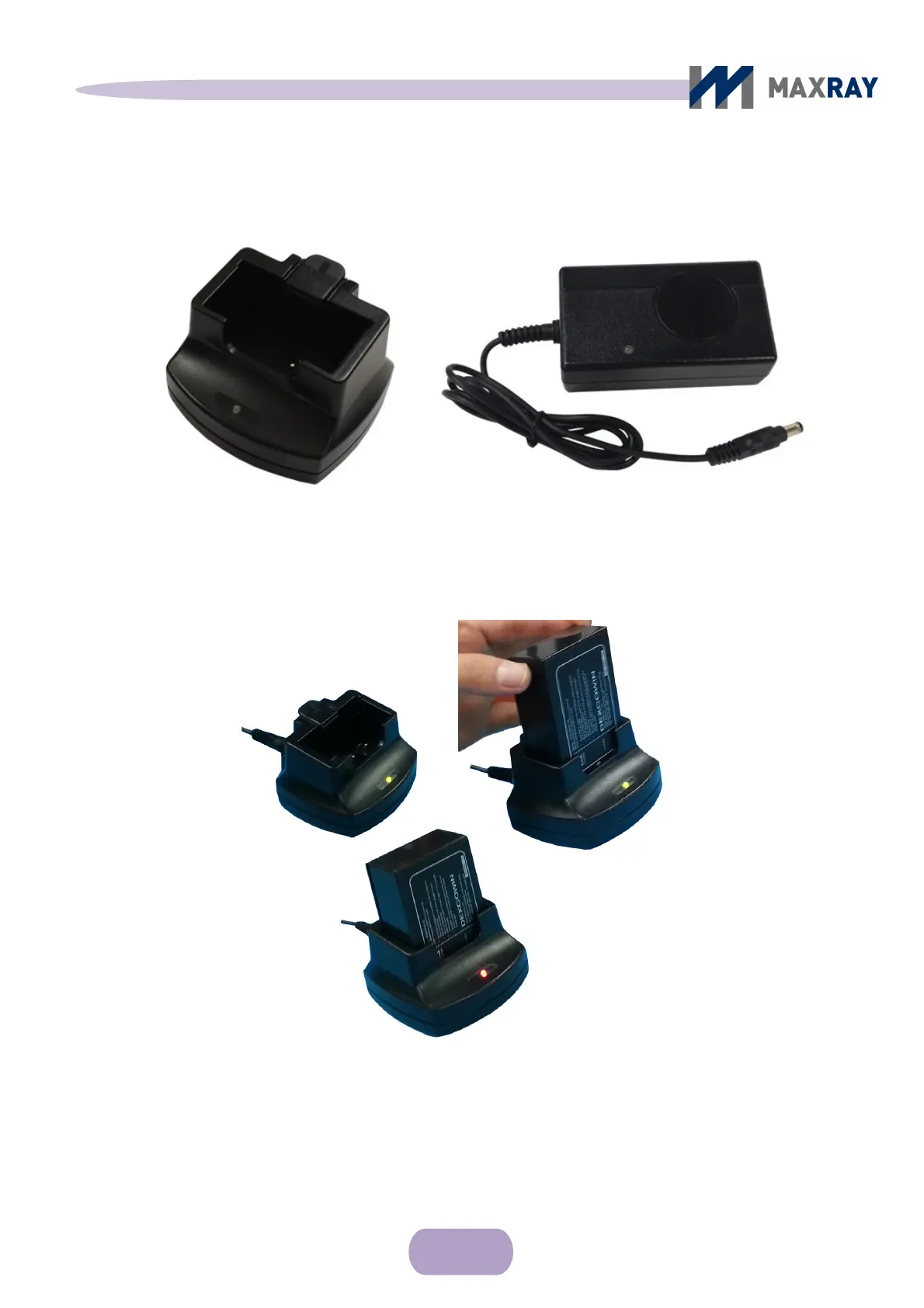

Figure 7.14 Battery cradle and charger adapter
Figure 7.15 Connecting the battery into the cradle
① Connect the charger
DC plug to the back side
of the jack on the batter
y
cradle.
② Fit the battery intro the cradle
in the direction shown here
③ Charging begins after the battery is in place
