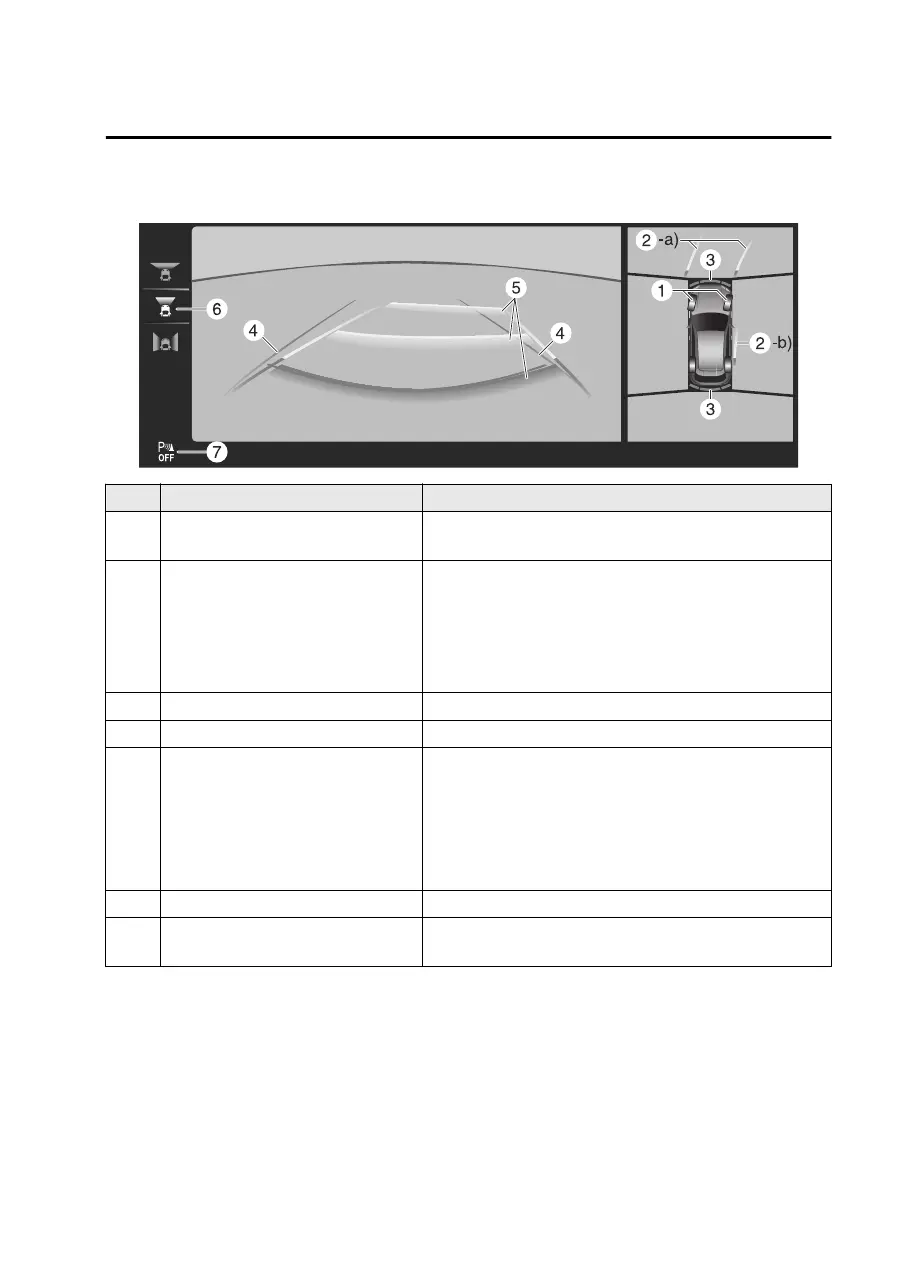

Top view, front view
Indication Content
1 Tire icon
Indicates the tire direction. Moves in conjunction with
the steering wheel operation.
2
Projected vehicle path lines (red/
yellow)
Indicates the approximate projected path of the vehicle.
Moves in conjunction with the steering wheel operation.
a) Indicates the path where the edge of the front bumper
is expected to travel.
b) Indicates the path where the inner side of the vehicle
is expected to travel.
3 Parking sensor detection indication Indicates the obstruction detection status.
4 Vehicle width guide lines (blue) Indicates the approximate width of the vehicle.
5
Projected vehicle path distance
guide lines (red/yellow)
Indicates the distance (from front end of bumper) in
front of the vehicle.
The red line indicates the point about 50 cm (19 in)
from the front end of the bumper.
The yellow lines indicate the points about 1 m (39 in)
and 2 m (78 in) from the front end of the bumper.
6 View status icon Indicates which image is selected.
7 Parking sensor status icon
Indicates that the parking sensor has a problem or it is
switched
off.
Driving
360° View Monitor
5-185
