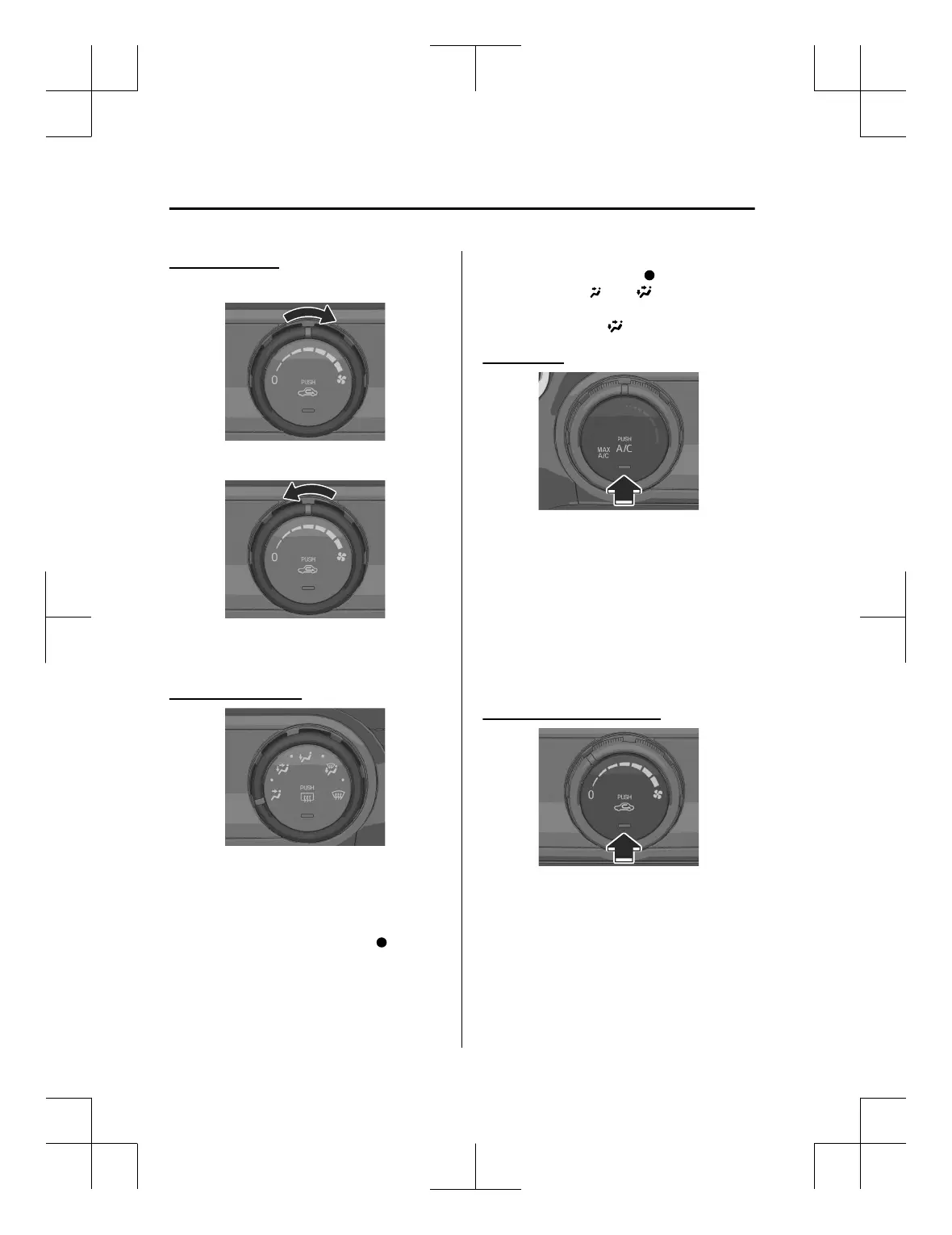

Fan control dial
How to increase the
airflow
amount
How to decrease the airflow amount
This dial allows variable fan speeds.
The airflow amount can be adjusted to
7 levels.
Mode selector dial
The desired airflow mode can be
selected.
NOTE
The mode selector dial can be set at
the intermediate positions (
)
between each mode. Set the dial to
an intermediate position if you want
to split the airflow between the two
modes.
For example, when the mode
selector dial is at the
position
between the
and positions,
airflow from the floor vent is less
than that of the
position.
A/C switch
Switches the air conditioner on and
off.
The indicator light on the switch will
illuminate when the fan control dial is
in any position except OFF.
NOTE
The air conditioner may not operate
when the ambient temperature falls to
nearly 0 ℃ (32 ℉) to protect the
system.
Air intake selector switch
The mode is switched between
recirculate mode and fresh air mode
each time the switch is pressed.
Equipment to Make Cabin More Comfortable
Manual Climate Control System
6-18
