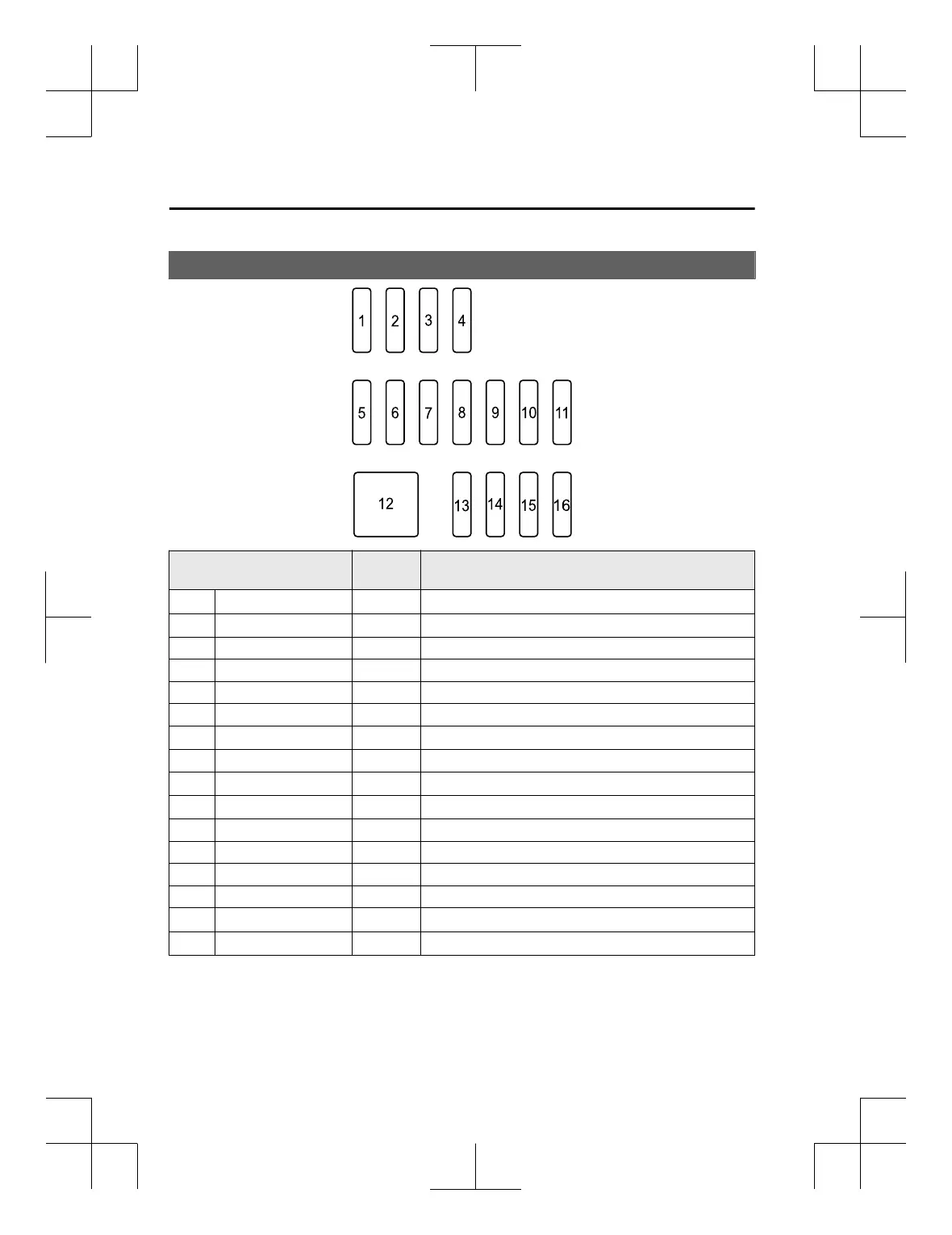

Fuse Panel Description
DESCRIPTION
FUSE RAT-
ING
PROTECTED COMPONENT
1 RHT R 30 A
Retractable hardtop (RH)
*
2 RHT L 30 A
Retractable hardtop (LH)
*
3 ―― ―
4 ENGINE6 10A ―
5 F.OUTLET 15 A Accessory sockets
6 ―― ―
7AT IND7.5 A
AT shift indicator
*
8 MIRROR 7.5 A Power control mirror
9 R_DECK R 30 A
Retractable hardtop (RH)
*
10 R_DECK L 30 A
Retractable hardtop (LH)
*
11 F.WASHER 15 A Windshield washer
12 P.WINDOW 30 A Power windows
13 ―― ―
14 SRS2/ESCL 15 A Electronic steering lock
15 SEAT WARM 20 A
Seat warmer
*
16 M.DEF 7.5 A
Mirror defogger
*
Inspection and Servicing/Cleaning
Vehicle Interior Inspection
9-44
*Some models.
