SENSOR PROBE INSTALLATION
Copyright © 2017 McCrometer, Inc. All printed material should not be changed or altered without permission of
McCrometer. Any published technical data and instructions are subject to change without notice. Contact your McCrometer
representative for current technical data and instructions.
www.mccrometer.com
3255 WEST STETSON AVENUE • HEMET, CALIFORNIA 92545 USA Printed In the U.S.A.
TEL: 951-652-6811 • 800-220-2279 • FAX: 951-652-3078 Lit. # 30120-48 Rev. 2.4 / 11-5-18
4

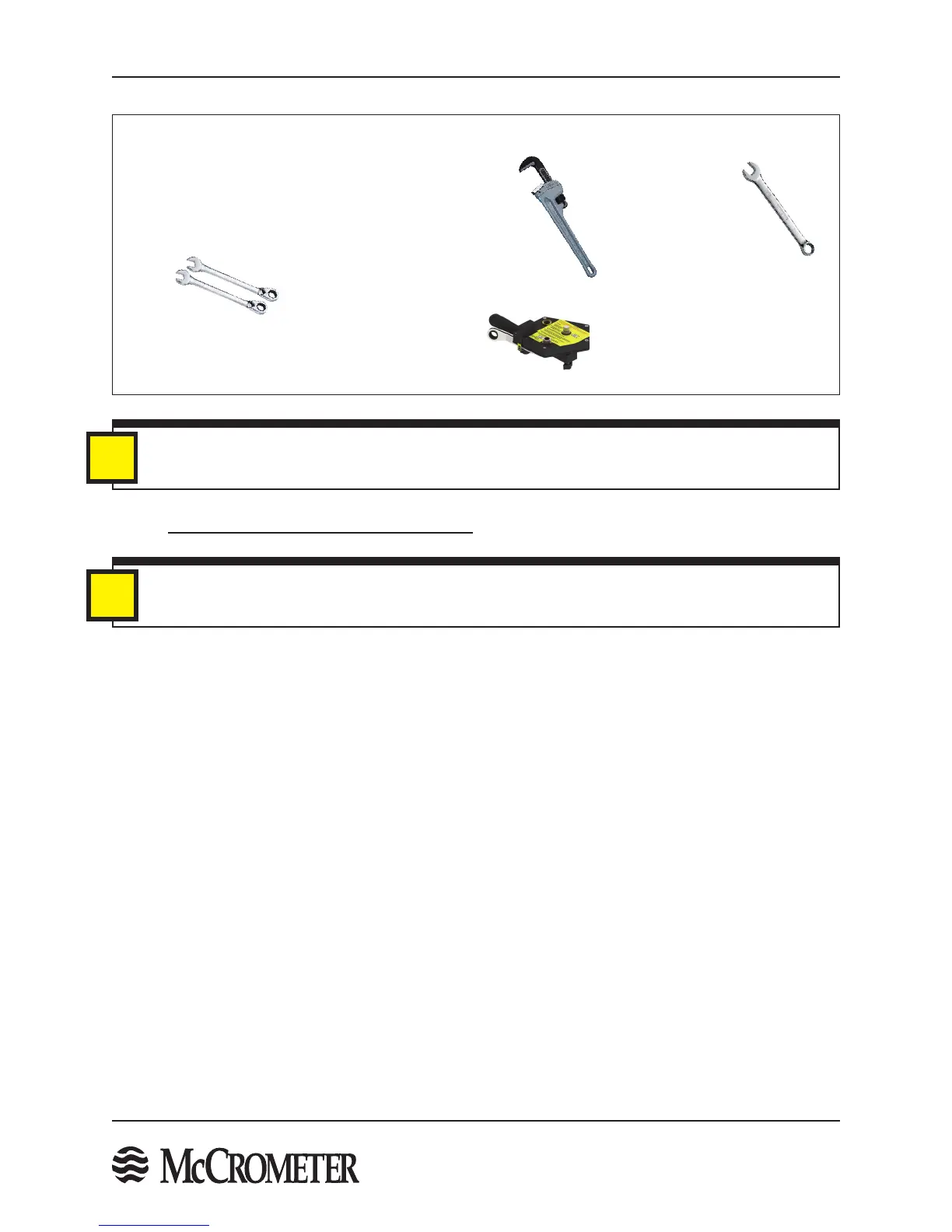

1.4 Tools Required for Installation
IMPORTANT
It is recommended that the Sensor Insertion Tool be used for easier and faster installation. See STEP 10.
IMPORTANT
This instrument shall only be implemented as permanently installed equipment.
i
i
2 - 9/16" or 3/4" reversible ratchet
wrenches. (Size is dependent
on the size of the retaining rods
supplied with the sensor and
determined at the time of order.)
Tools recommended for installation:
1 - pipe wrench
capable of a 4" span
1 - 7/16" wrench
or crescent wrench
1 - Sensor
Insertion Tool
3/8" Part Number 75031 for TSL
< 72" and pressure < 200 psi
1/2" Part Number 75032) for TSL
> 72" or pressure > 200 psi
Tools provided:
Please read the entire manual before installing the FPI Mag sensor. Due to size and pressure requirements
determined at the time of order, certain FPI Mag sensors are equipped with more robust 1/2" threaded rods, a
heavy spring, a larger top plate and a compression assembly designed to accept the larger insertion rods. For
these installations, please replace all references to 3/8" rods and nuts with 1/2". The standard sensor size is 1.25".
In some smaller applications the FPI Mag may use the smaller 0.75" sensor.
2.0 SENSOR PROBE INSTALLATION
