8 - MAINTENANCE INSTRUCTIONS
8-2. REPLACING CUTTER LINE-EASY-LOAD
HEAD (MT30725)

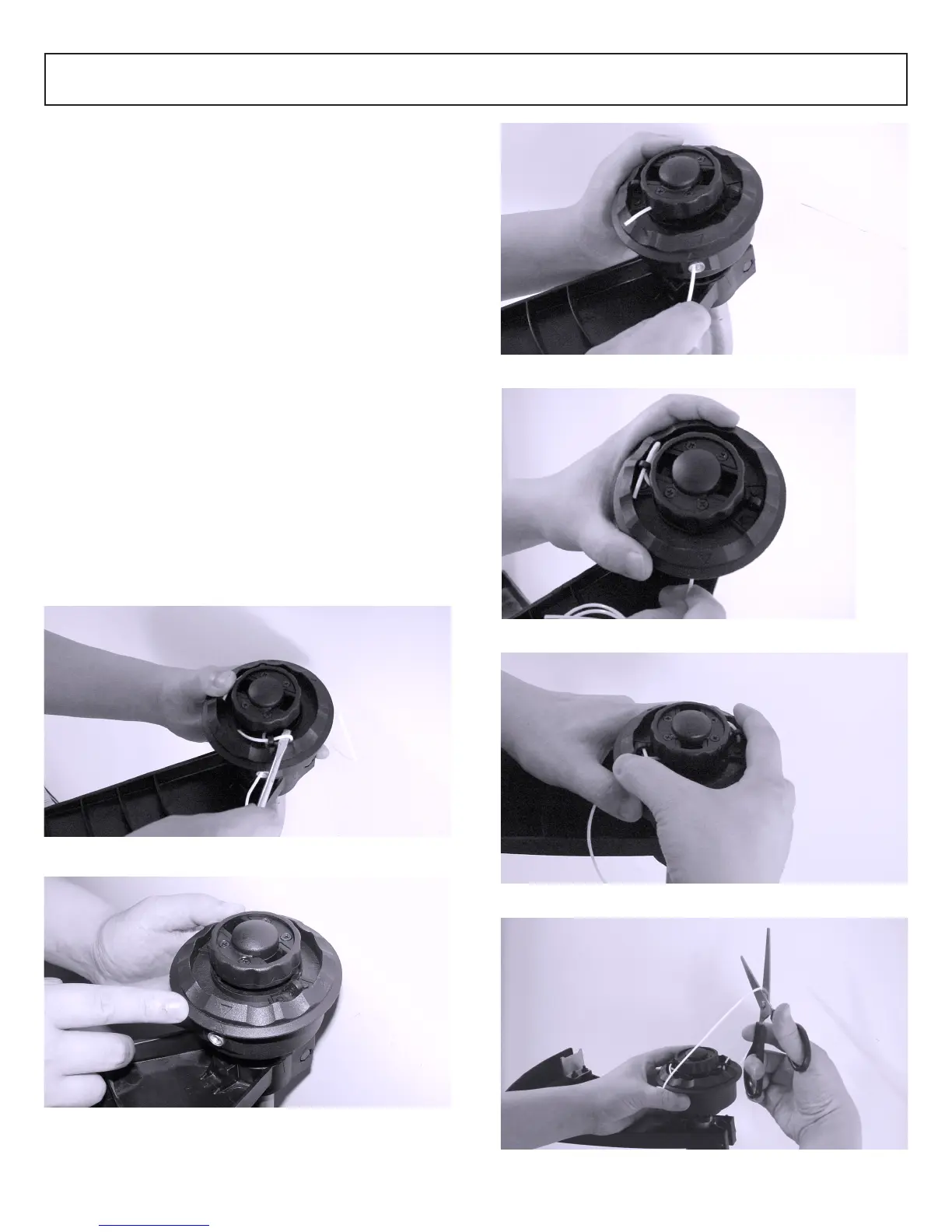

1. Use a small screwdriver or pointed rod to release line
from locking tabs. (Fig. 8-2A)
2.
Remove remaining line from head.
3. Align arrows on inner and outer spool.(Fig. 8-2B)
4. Cut a length of trimming line approximately 16 feet (5
meters) long.
5. While pushing inner spool down insert each end of line
through eyelets into feed slot on spool divider. Insure
line enters feed slots. Push line until approximately 2
inches (5 cm) appears from below bump knob.(Fig. 8-
2C)
6. Insert each end into locking tabs by pushing the line
end through lower tab hole and looping end back
through upper tab hole. Pull line at eyelet to tension.
(Fig. 8-2D)
7. Once both line ends are locked in place turn inner spool
counter clockwise in direction of arrows to load line.
(Fig. 8-2E).
8. Wind spool until a loop of line approximately 10 inches
(25cm) long is visible. Cut loop in half to create two cut-
ting line ends. Ensure each line end is not more than 5
inches (13cm) long. This will minimize load on engine
during starting. (Fig. 8-2F)
8-2A
8-2B
8-2C
8-2D
8-2E
8-2F
16
8 - MAINTENANCE INSTRUCTIONS
8-3. AIR FILTER
CAUTION
NEVER operate trimmer without the air filter. The air filter
must be kept clean. If it becomes damaged, install a new fil-
ter.
To Clean Air Filter:
1. Remove knob (A) holding air filter cover in place,
remove cover (B) and lift filter (C) from air box (Figure
8-3A).
2. Wash filter in soap and water. DO NOT USE GASO-
LINE!
3. Air dry filter.
4. Reinstall filter.
NOTE: Replace filter if frayed, torn, damaged or unable to
be cleaned.
8-4. FUEL CAP / FUEL FILTER
CAUTION
Remove fuel from unit and store in approved container
before starting this procedure. Open fuel cap slowly to
release any pressure which may have formed in fuel tank.
NOTE: Keep vent (A) on fuel cap clean of debris (Figure 8-
4A).
Fuel Filter:
1. Completely remove fuel cap from fuel tank (B) to be
able to remove fuel filter (C) from tank. (Figure 8-4B)
2. Pull filter (D) off with a twisting motion. (Figure 8-4C)
3. Replace fuel filter (D). (Figure 8-4C)
NOTE: Never operate the trimmer without the fuel fil-
ter. Internal engine damage could result!
8-3A
A
B
C
8-4A
A
8-4B
B
C
8-4C
D
