McFarlane 4100 Series - Page 71

800-627-8569 71 Reel Disk from McFarlane Mfg.

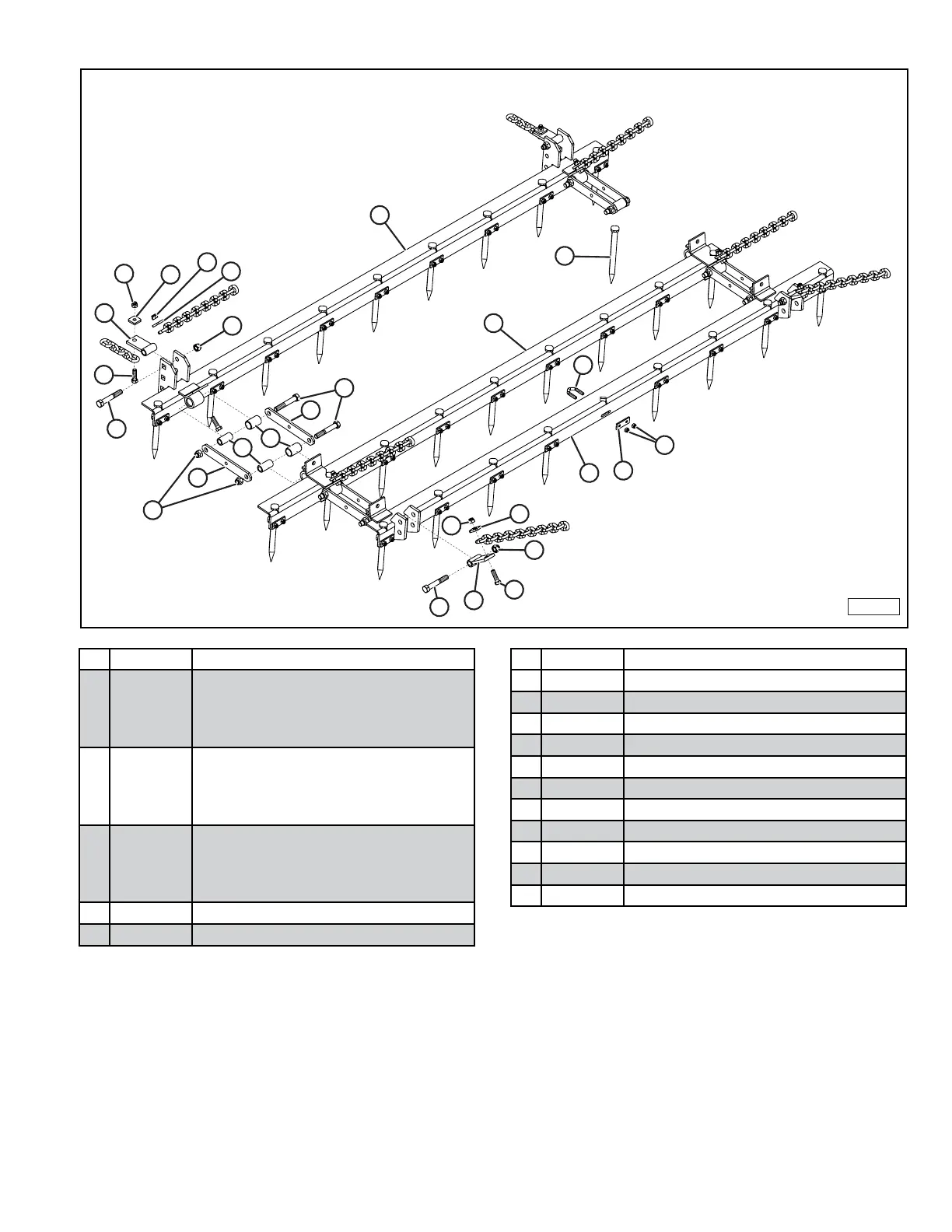

FA Harrow Section for RD-4100 Series
MFM-00106
2
5
5
5
1
6
6
6
7
7
8
8
8
3
13
9
9
9
10
10
16
15
14
12
11
4
4
Item Part Number Description
1
FA-551
FA-651
FA-751
FA-851
FA-951
NUMBER ONE HARROW BAR (FA-500-3)
NUMBER ONE HARROW BAR (FA-600-3)
NUMBER ONE HARROW BAR (FA-700-3)
NUMBER ONE HARROW BAR (FA-800-3)
NUMBER ONE HARROW BAR (FA-900-3)
2
FA-556
FA-656
FA-756
FA-856
FA-956
NUMBER TWO HARROW BAR (FA-500-3)
NUMBER TWO HARROW BAR (FA-600-3)
NUMBER TWO HARROW BAR (FA-700-3)
NUMBER TWO HARROW BAR (FA-800-3)
NUMBER TWO HARROW BAR (FA-900-3)
3
FA-557
FA-657
FA-757
FA-857
FA-957
NUMBER THREE HARROW BAR (FA-500-3)
NUMBER THREE HARROW BAR (FA-600-3)
NUMBER THREE HARROW BAR (FA-700-3)
NUMBER THREE HARROW BAR (FA-800-3)
NUMBER THREE HARROW BAR (FA-900-3)
4 BH-5018 1/2 – 13 X 1-3/4 GRADE 5 HEX BOLT
5 HDD-016 SQUARE WASHER – 1/2”
Item Part Number Description
6 NLT-5013 1/2-13 TOP LOCK NUT
7 FA-4105 PULL HOOK
8 BH-6340 5/8-11 X 4 GRADE 5 HEX BOLT
9 NLT-6311 5/8-11 TOP LOCK NUT
10 CT-105 CONNECTOR FLAT
11 CT-107 OUTER BUSHING
12 CT-102 INNER BUSHING
13 BV-3812 3/8” V BOLT
14 FA-4103 3/8” V-BOLT PLATE
15 NLT-3816 3/8-16 TOP LOCK NUT
16 FA-4110 3/4” X 10” TOOTH
