McFarlane 4100 Series - Page 72

Reel Disk from McFarlane Mfg. 72 800-627-8569

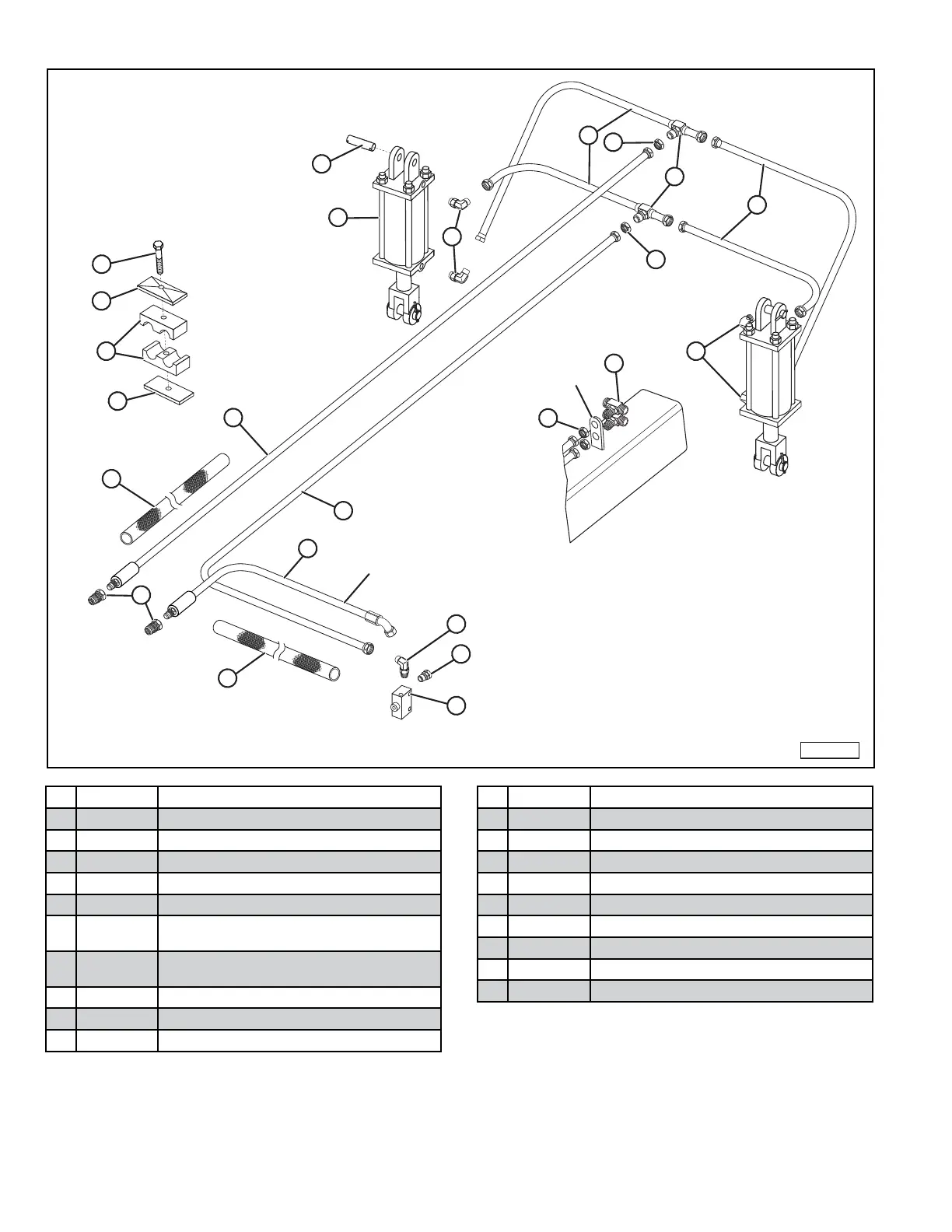

Wheel Lift Hydraulics for RD-4112, 4114, and 4116
MFM-0107
1
3
19
5
4
4
4
11
8
6
7
8
16
17
15
18
5
14
8
2
FRAME
BRACKET
LINE FROM TRACTOR GOES INTO
THE BACK OF THE STOP VALVE
10
9
12
13
Item Part Number Description
1 HYH-3255 1/2” X 255” HYDRAULIC HOSE
2 HYH-1030 1/2” X 214” HYDRAULIC HOSE
3 HYH-2094 1/2” X 94” HYDRAULIC HOSE
4 HYO-4002 1/2” TEE NUT
5 HYF-1222 TEE (1/2”m – 1/2”m – 1/2”m)
6
HYH-2028
HYH-2030
1/2” X 28” HYDRAULIC HOSE (4112)
1/2” X 30” HYDRAULIC HOSE (4114, 4116)
7
HYH-2070
HYH-2080
1/2” X 70” HYDRAULIC HOSE (4112, 4114)
1/2” X 80” HYDRAULIC HOSE (4116)
8 HYF-2220 ELBOW (1/2”m – 1/2” O-RING)
9 HYF-3220 ADAPTER (1/2”m – 1/2” O-RING)
10 HYO-2103 CYLINDER CLEVIS PIN, 1 X 3-1/2
Item Part Number Description
11 HYA-33008 3” X 8” CYLINDER, ASAE
12 HYS-2001 HYDRAULIC HOSE COVER, 110”
13 HYS-2004 HYDRAULIC HOSE COVER, 12”
14 HYO-3021 HYDRAULIC STOP VALVE
15* HYO-1206 HYDRAULIC CLAMP WELD PLATE, 1/2
16* HYO-1202 HYDRAULIC CLAMP BODY, 1/2 (3/4 O.D.)
17* HYO-1204 HYDRAULIC CLAMP COVER, 1/2
18* HYO-1208 HYDRAULIC CLAMP BOLT, 1/2 (1-3/4)
19 HYF-4002 HYDRAULIC DISCONNECT
* HYO-1201, CONSISTS OF 15, 16, 17, AND 18
