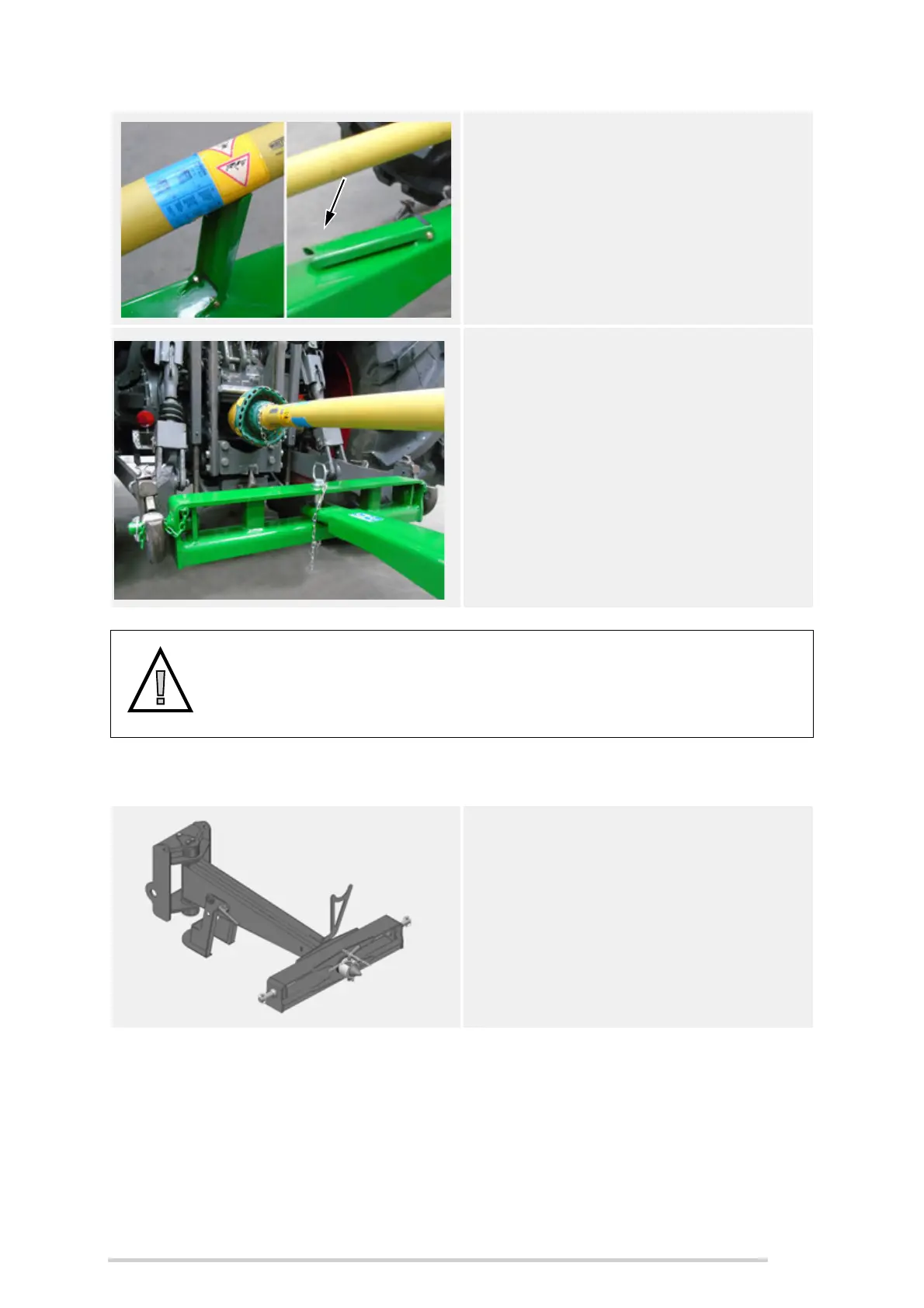

5.3.3 Swing drawbar option
4. Connect the PTO shaft to the tractor
and move the PTO shaft stand (1)
into the transport position, by
swinging it down, as shown. The
PTO shaft stand (1) must be used to
support the PTO shaft every time it is
disconnected from the tractor.
5. Once the PTO shaft has been
connected, the lower link arms
cannot be elevated beyond a certain
point. Raise the lower link arms
slightly and secure the drawbar
stand in the transport working
position. The drawbar stand is to be
used every time the machine is
disconnected from the tractor.
Ensure that the lights are connected.
CAUTION
: Do not raise the lower link arms once the PTO is connected
Once the PTO shaft has been connected, the lower link arms cannot be
elevated beyond a certain point. Otherwise the link coupler will make
contact with the PTO shaft causing irreparable damage.
1. The swing drawbar option assists
manoeuvrability when operating in
really confined areas. The main pivot
is moved back onto the machine
chassis and this coupled with an
articulating connection through the
tractor lift arms, provides a really
small turning radius.
