7.4 Auxiliary control box
The C4 Series machines are each equipped with an auxiliary control box located at the
rear of machine which functions as a floor and loading door controller.
1. Floor control switch
Push the switch up, to move the floor forwards (towards the rotor). Pull the switch down
to move the floor rearward (away from the rotor). The function enable button must also
be pressed for this switch to operate.
2. Floor 2 control switch
There is an extra switch on the C490 auxiliary control box to operate Floor 2 in forward
and reverse. The function enable button must also be pressed for this switch to operate.
Floor 2 is completely independent of the main floor and is only used to transfer material
in the rear section of the machine.
3. Loading door switch
Push the switch up to raise the loading door up. Pull the switch down to lower the loading
door down. The function enable button must also be pressed for this switch to operate.

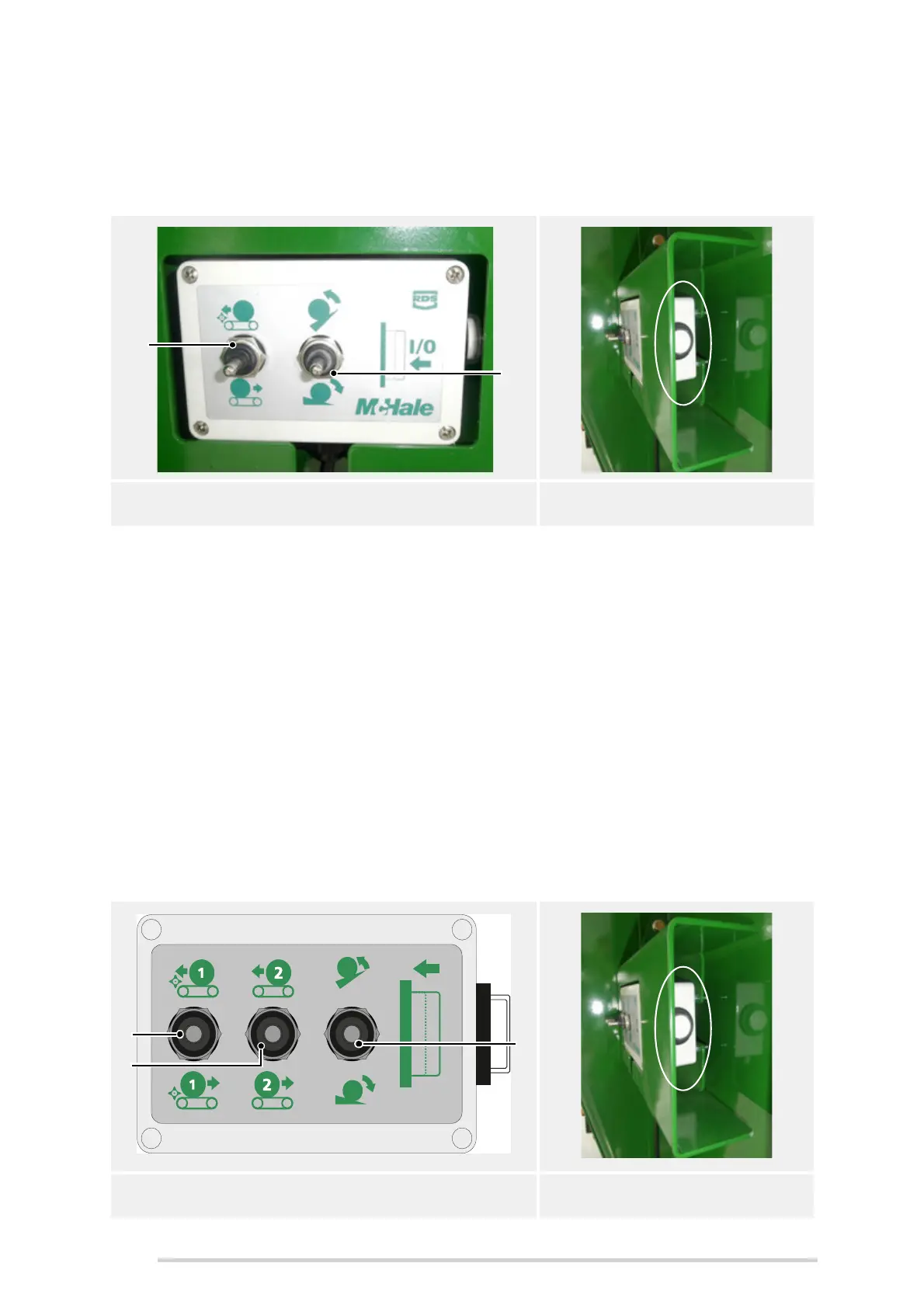

Auxiliary control box C430/C460/C470
Function enable button
Auxiliary control box C490
Function enable button
1
3
3
1
2
