6.3 Tyre inflation pressures (C460/C470/C490)
*Not available for the C490
6.4 Drawbar & PTO stand usage (C460/C470/C490)
The drawbar stand is to be used every time the machine is disconnected from the
tractor.
Ensure that the stand lock pin (2) is properly secured in the hole provided to prevent
the stand from collapse. Then place the PTO shaft stand in an upright position in order
to hold the PTO shaft in position. While using the machine, ensure that the drawbar
stand (1) is fully elevated with lock pin (2) in position and the PTO stand lowered.
CAUTION: Check the tyre pressure weekly
Check the machine tyres weekly for the pressures outlined in the
following table.
Details Type Pressure Part No.
260/70-15.3 122 A8 (Vredestein) Flotation+ 3.1 bar (45 psi) CWH00011*
340/55-16 133 A8 (Vredestein) Flotation+ 3.1 bar (45 psi) CWH00022
CAUTION: All stands must be rested on a solid footing
The stand must be rested on a solid footing, on level ground, using
wheel chocks if necessary.

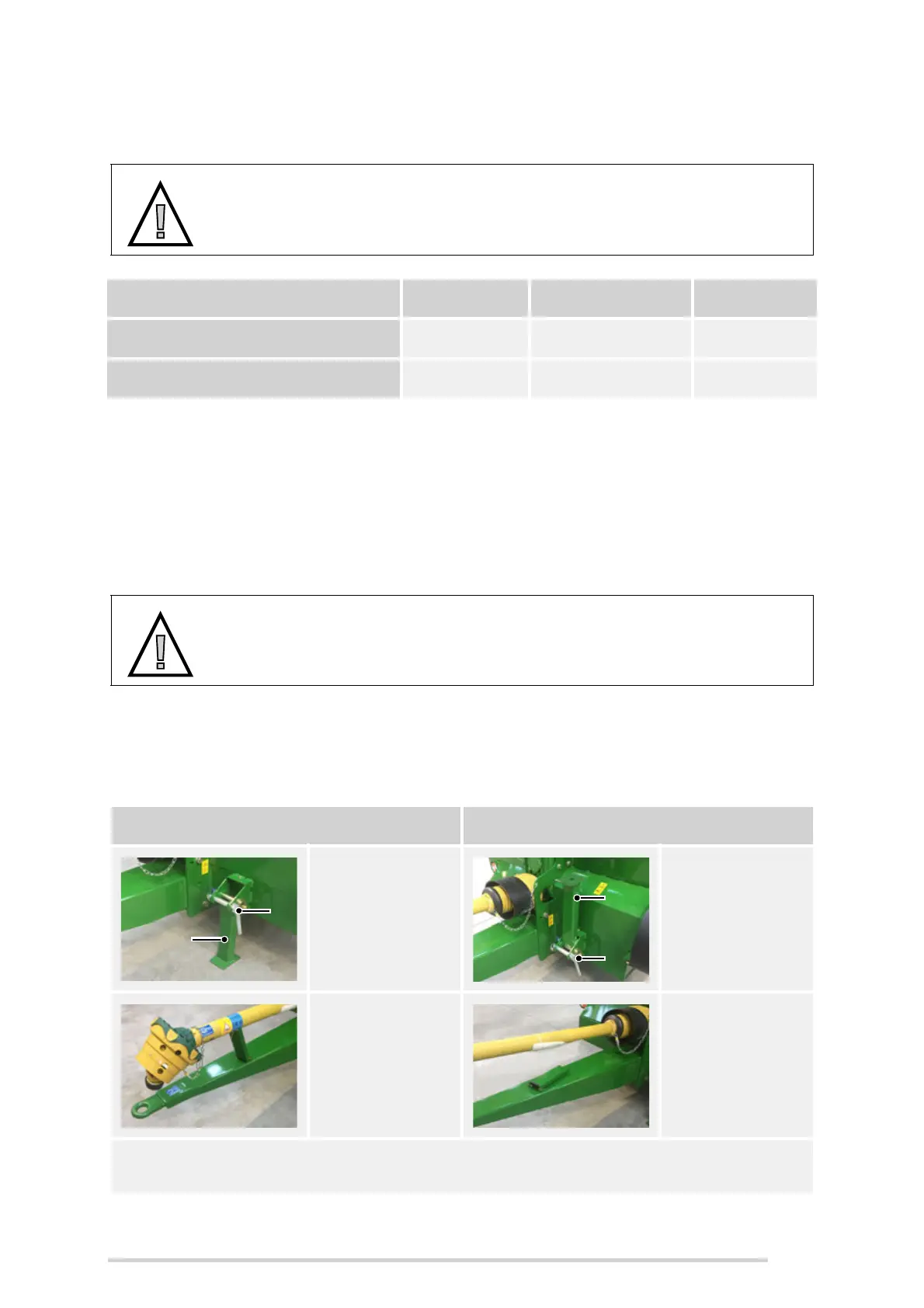

Storage position Transport position
Drawbar stand
down
Drawbar stand
up
PTO stand up
PTO stand
down
NOTE: The PTO stand must be down once the machine is attached to the tractor to
prevent damage to the PTO shaft.
