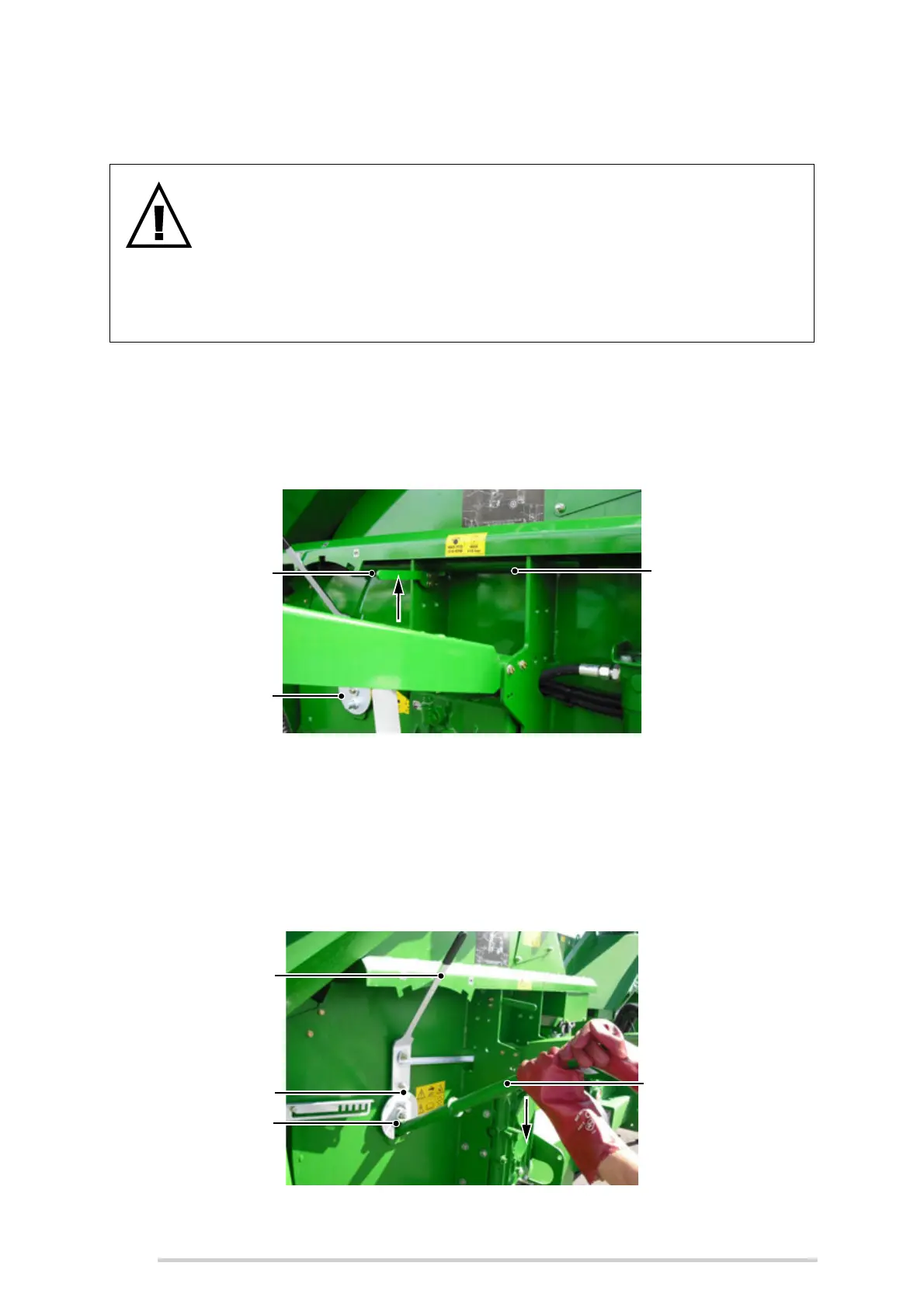

9.6 Clearing a fan blockage
If a clump of crop or foreign object has become entangled in the fan, first remove the
unblocking lever from its storage position. This lever is stored above the gear selection,
at the front of the machine. To release the unblocking lever, raise the safety latch (A),
whilst rotating the lever counter-clockwise 180°. Then, slide/retract the lever to the left
to release it.
Safety latch and unblocking lever
Select neutral by moving the gear selection lever to the central position. Rotate the
cover disc (180°) until you can insert the unblocking lever and pull down, as shown
below, to jack the fan backwards until the blockage is cleared. Never put fingers into
the jack back point! Once the fan is rotating freely, remove the unblocking lever and
place it back into its storage position securely, using the reverse order of removal and
spin the cover disc 180° shut and select the required fan gear.
Clearing fan blockage
WARNING
: Shut down PTO and tractor if carrying out adjustments
When maintenance or repair work has to be carried out on the machine,
the hand brake must be applied, engine shut down with ignition key
removed. The PTO shaft must be removed from the PTO stub, with the
hydraulic and electric power supply disconnected. It is forbidden to
open any safety guards or carry out any work on the machine unless the
specified precautions have been carried out.
Unblocking
lever
Cover disc
Safety latch
A
Gear
selection
lever
Cover disc
Jack-back
point
Unblocking
lever
