McHale C430/C460/C470/C490 Bale Chopper
59

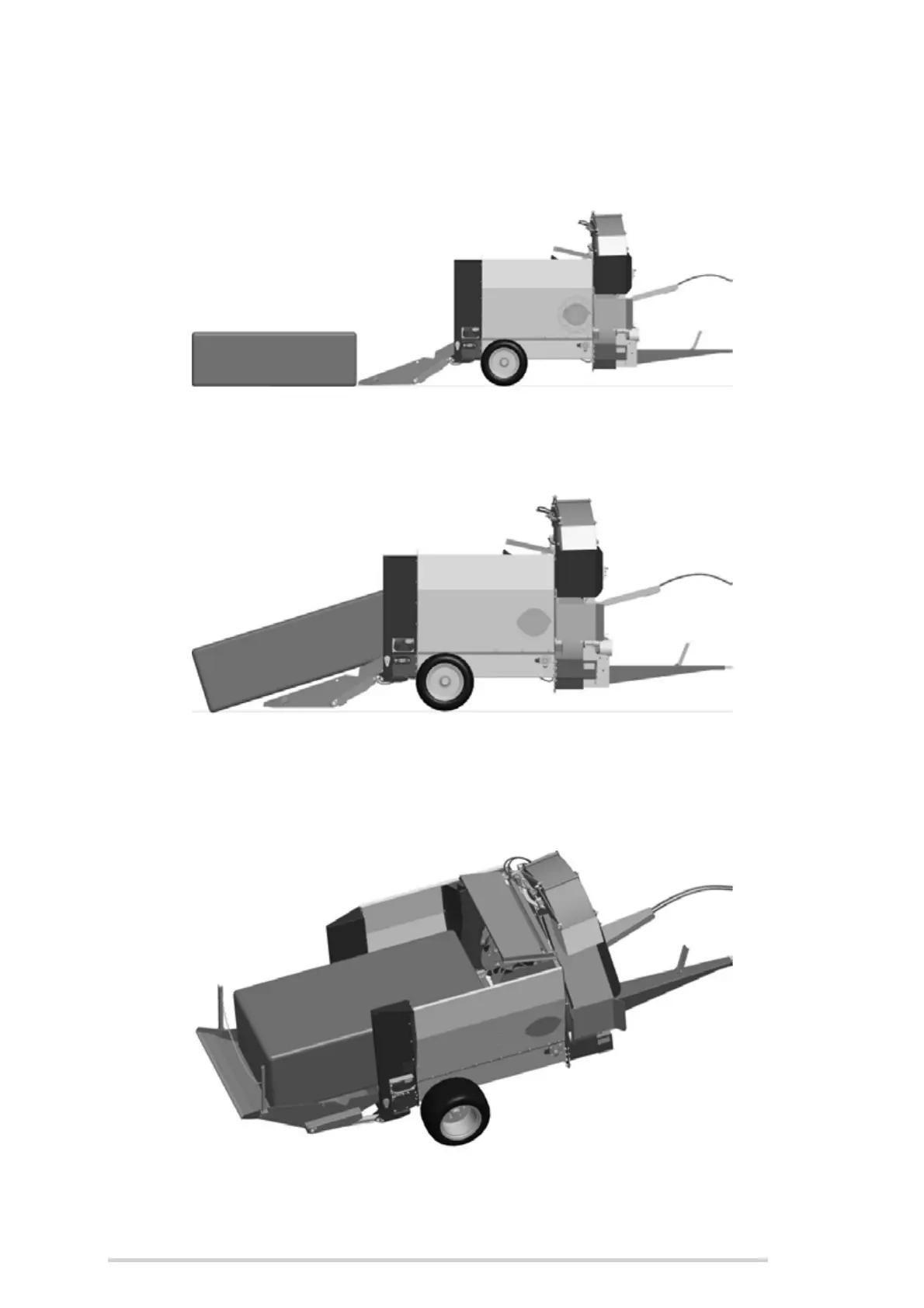

5. Loading large square bales from the ground. Place the bale against a solid
backstop on a flat level surface. Line up the machine and reverse the loading
door back under the bale. The leading edge of the door must be between 10
and 30 mm from the ground.
6. Reverse the loading door under the bale until the door is between 400 and
600 mm from the backstop.
7. Elevate the loading door so the top edge of the door sides are horizontal. Move
the floor forward to bring the bale into the bale chamber. Leave clearance
between the bale and the rotor. Fit the square bale retaining chain and post into
the door brackets provided. Remove any string, netting or plastic.
8. Loose crop must always be loaded using a loader; with the loading door closed
fully. Avoid contact between the loader and any part of the machine.
