Packing the MX100
When shipping the MX100, it is highly recommended
that the unit be packed as it was originally shipped to
avoid damage. Failure to properly pack the unit will
likely result in damage. (The front panel is made of
glass!) If you need any of the packing material, you
can contact McIntosh Customer Service. Use only
packing material that is in good condition and replace
any material that has seen better days.
It is very important that the four plastic feet are
attached to the bottom of the equipment. This will
ensure the proper equipment location on the bottom
pad. Failure to do this will result in shipping damage.
Quantity Part Number Description
1 034668 Shipping carton only
2 034669 End cap
1 033836 Inside carton only
2 033725 Top or filler pad
1 034576 Bottom pad
2 034446 Foam plug
4 017937 Plastic foot
4 400159 #10-32 x 3/4” screw
4 404080 #10 Flat washer
1 034667 Accessory Box
2 034500 Slotted foam
1 034501 Divider foam
SLOTTED
FOAM (2)
DIVIDER
FOAM
ACCESSORY
BOX
MICROPHONE
MINI BOOM
MICROPHONE
CABLE
END CAP
INSIDE
CARTON
SHIPPING
CARTON
TOP PAD
UNIT WITH
(4) FEET ON
BOTTOM COVER
FOAM PLUG
10-32 X 3/4”
SCREW WITH
WASHER (4)
BOTTOM PAD
FILLER PAD
INSIDE
CARTON
PLASTIC
FOOT (4)
MICROPHONE
STAND
IMPORTANT
(READ ABOVE)

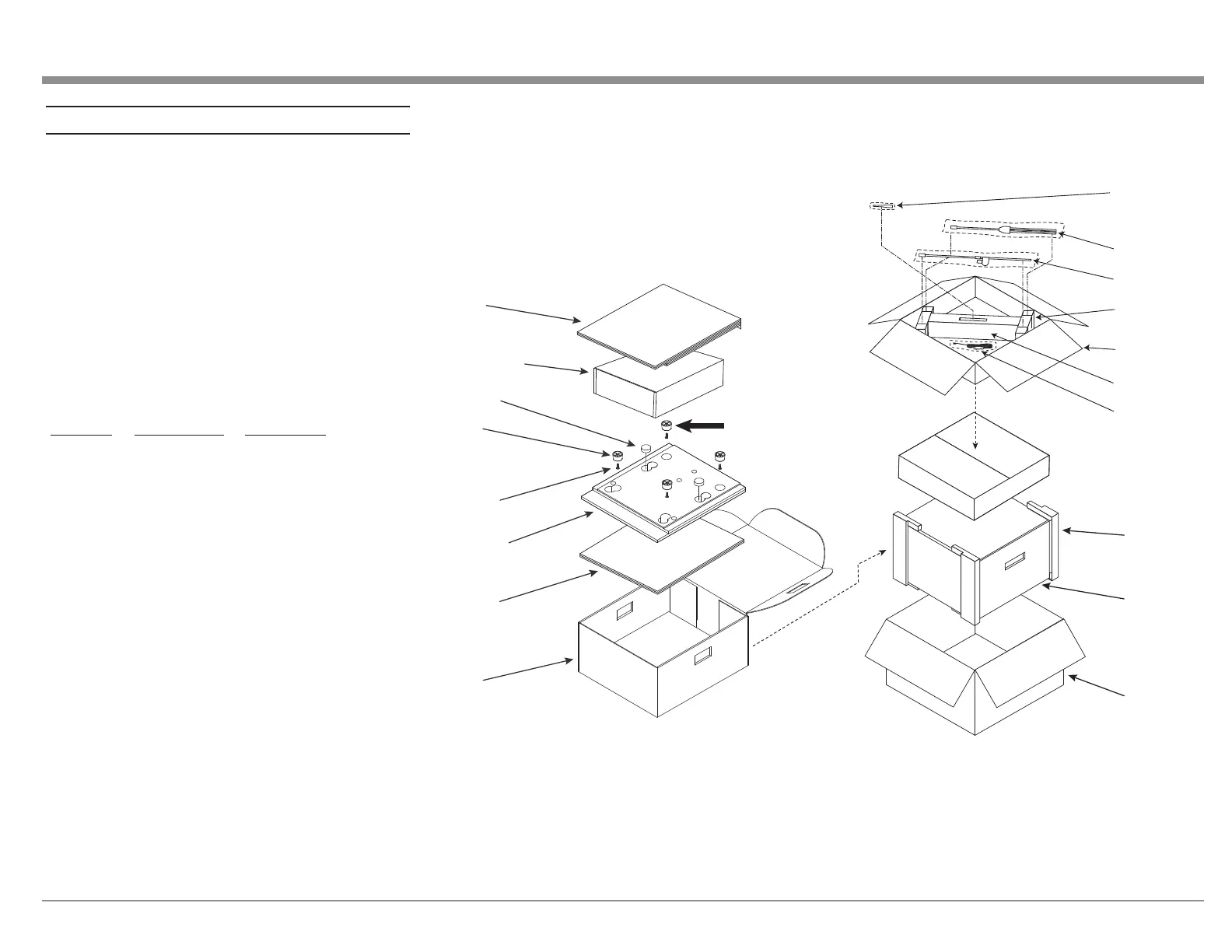

Figure 30– Re-packing diagram
