McIntosh MX100

22

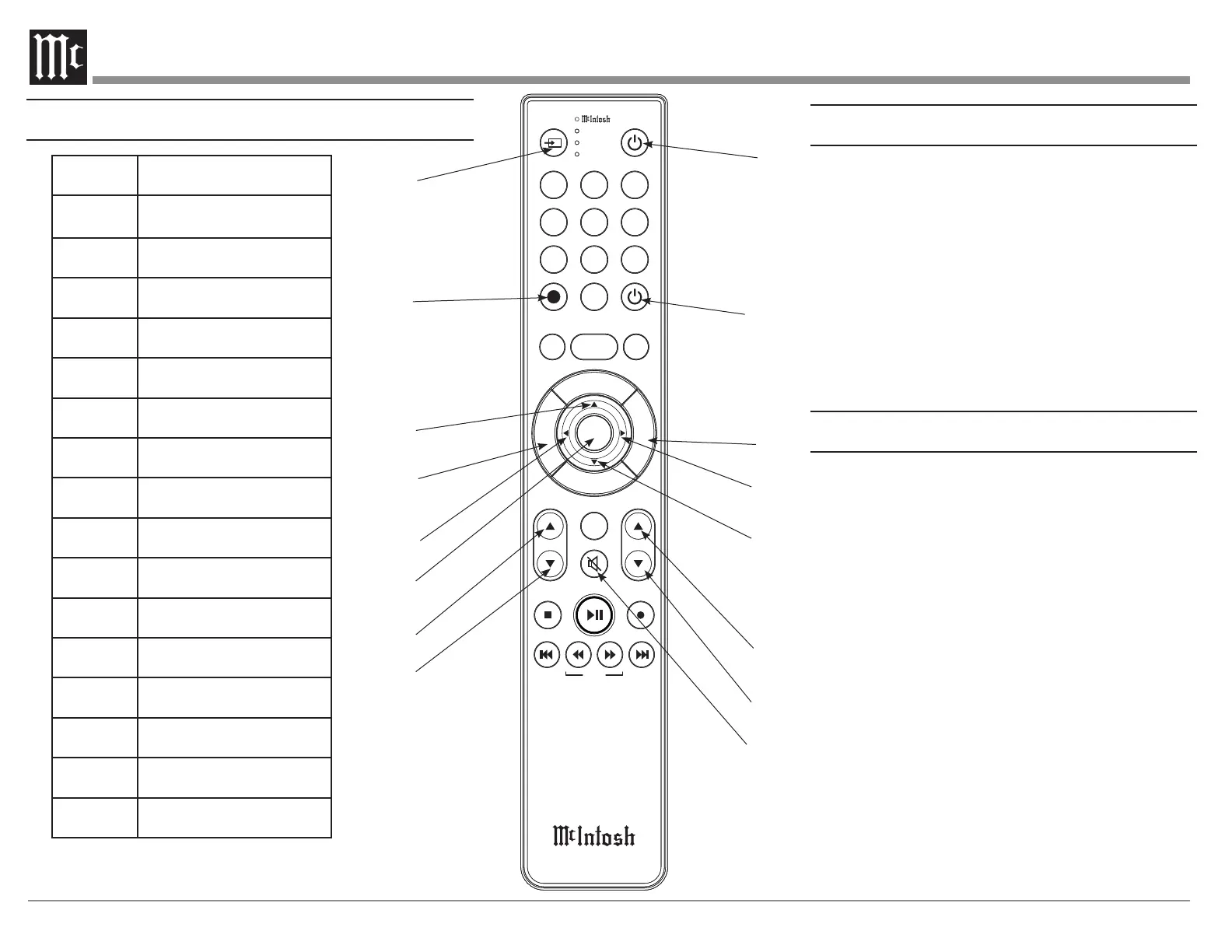

Remote Control Buons
CABLE
TV
AUX
1
2
3
4
5
6
7
8
9
0
AM PRESET
FM
INPUT
VOL
PRESET SEEK PRESET
HRO85
BAND
SELECT
AM
OUTPUT2
OUTPUT 1
LEVEL UP
MENU
INFO
LEVEL DN
TRIM
GUIDE
EXIT
MODE
SETUP
1
2
4
3
5
6
10
11
12
13
14
15
16
7
8
9
Key MX100 Command
1
Device
2 Setup
3 Up
4 Trim
5 Left
6 Select
7 Input Up
8 Input Down
9 Power On
10 Power Off
11 Mode
12 Right
13 Down
14 Volume Up
15 Volume Down
16 Mute
Addional Discrete Commands
Additional discrete commands for external control
systems are available:
OPT1, OPT2, COAX1, COAX2, HDMI1, HDMI2,
HDMI3, HDMI4, HDMITV and Power (Cycle)
These additional commands can be accessed using an
optional McIntosh HR093 Service Remote Control.
A list of these commands as well as Pronto Hex
Codes can be found in the MX100 Pronto Hex Codes
document located in the Download section of the
MX100 product information at mcintoshlabs.com.
You can also contact McIntosh Technical Assistance
or your dealer for more information.
Remote Control Baeries
The Remote Control, part number HR085, included
with the MX100 is powered by two AAA batteries.
To insert or remove batteries, open the battery
compartment by removing the cover located on the
back of the Remote Control. To open, pull the clasp
located just above the opening downward.
