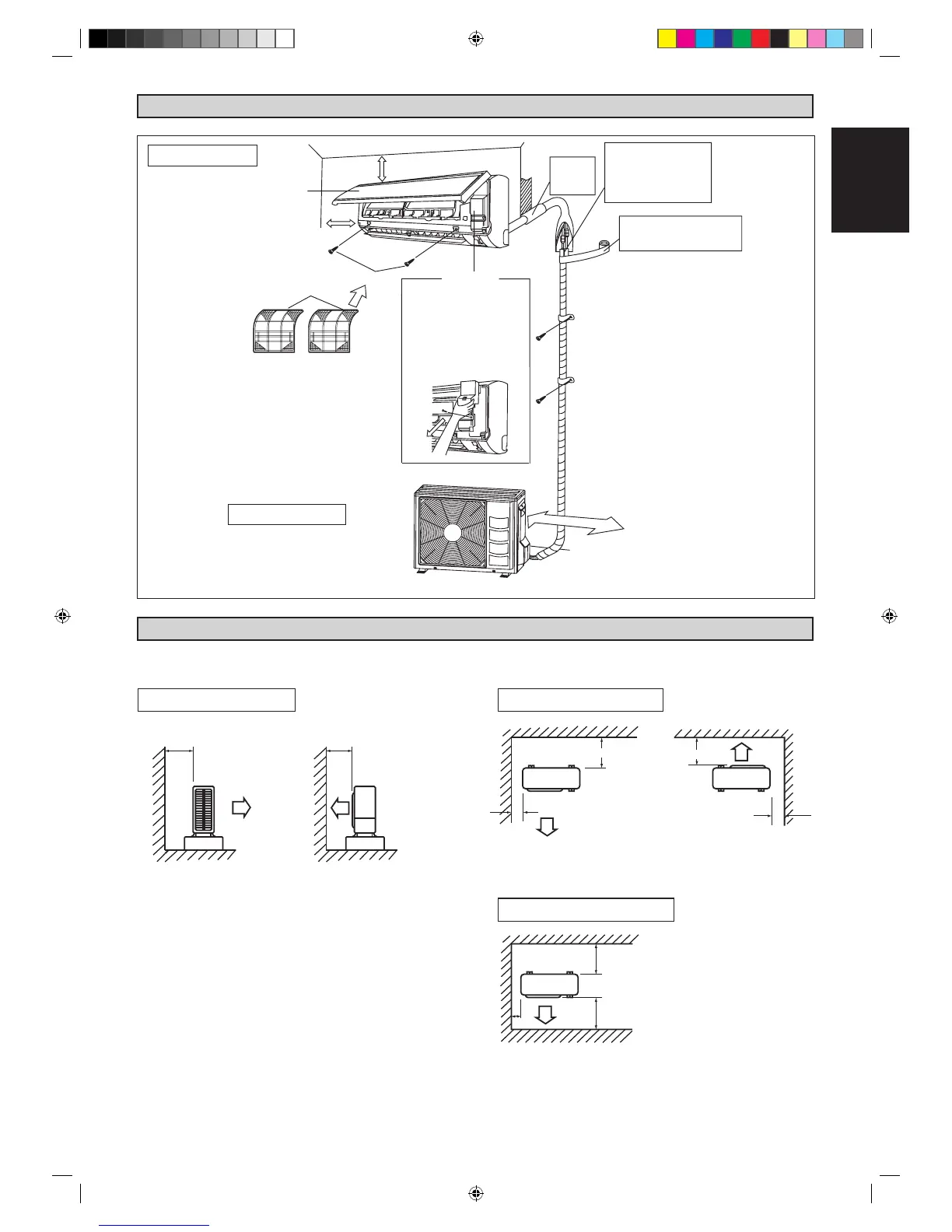

INSTALLATION DIAGRAM
.
INSTALLATION OF THE OUTDOOR UNIT
• Where a wall or other obstacle is in the path of outdoor unit’s intake or exhaust airflow, follow the installation guidelines below.
Indoor Unit
30mm or more from ceiling
Front Panel
50mm or more from walls
(on both sides)
Air filter
Outdoor Unit
Caulk pipe
hole gap
with putty.
Cut thermal insulation pipe to
an appropriate length and wrap
it with tape, making sure that no
gap is left in the insulation pipe’s
cut line.
Wrap the insulation pipe with the
finishing tape from bottom to top.
Service lid
• Opening service lid
Service lid is opening/closing
type.
• Opening method
1) Remove the service lid
screws.
2) Pull out the service lid
diagonally down in the direction
of the arrow.
3) Pull down.
250mm from wall
Wall facing one side Wall facing two sides
More than 50 More than 100
Side View
More than 50
More than 100 More than 150
More than 50
Top View
Wall facing three sides
More than 150
More than 300
More
than 50
Top View Unit: mm
M4 X 12L
