McQuay RPS User Manual

Page 46 IM-738

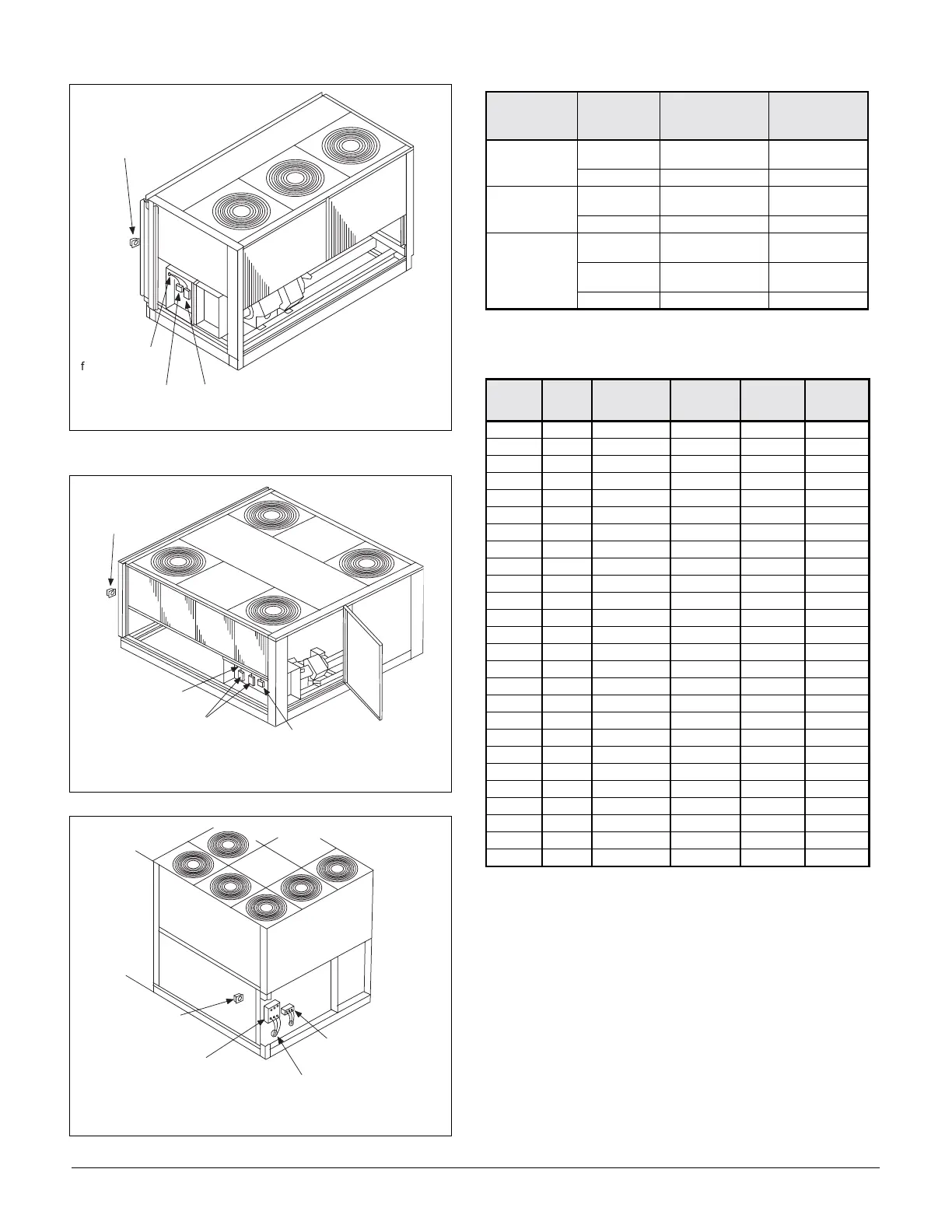

Figure 54. RCS 015C-030C Power Wiring Connections
Figure 55. RCS 036C & 040C Power Wiring Connections
Figure 56. RCS 045 - 075 Power Wiring Connections
Table 16: Multiple Point Power Connection Options
Table 17: Recommended 3-phase power wiring*
Notes:
1. All wire sizes assume separate conduit for each set of
parallel conductors.
2. All wire sizes based on NEC Table 310-16 for THW wire (copper).
Canadian electrical code wire ampacities may vary.
3. All wire sizes assume no voltage drop for short power leads.
*To provide that disconnects and power blocks mate with power wiring.
C o n d u i t & H u b
( S h i p p e d w i t h
R C S U n i t )
7 / 8 " K n o c k o u t
f
o r W i r e E n t r y *
F u s e B l o c k
F B 1
F u s e B l o c k
F B 1 2
* F i e l d t o c u t l a r g e r h o l e s
a s r e q u i r e d f o r p o w e r w i r e .
C o n d u i t & H u b
( S h i p p e d w i t h
R C S U n i t )
7 / 8 " K n o c k o u t
f o r W i r e E n t r y *
F u s e B l o c k
F B 1 , F B 2
F u s e B l o c k F B 1 2
* F i e l d t o c u t l a r g e r h o l e s a s r e q u i r e d f o r p o w e r w i r e .
C o n d u i t & H u b
( S h i p p e d w i t h
R C S U n i t )
P o w e r B l o c k P B 4 o r
D i s c o n n e c t S w i t c h D S 4
7 / 8 " K n o c k o u t f o r W i r e E n t r y
( F i e l d t o c u t l a r g e r h o l e s a s
r e q u i r e d f o r p o w e r w i r e . )
T e r m i n a l B l o c k T B 1
f o r 1 1 5 V S e r v i c e
R e c e p t a c l e C i r c u i t
Number of
Electrical
Circuits
Disconnect
Designation
Load
Location (See
Figure 21)
2
DS2
Supply & return tan
motors
Main control panel
DS1 Balance of unit Main control panel
2
DS3 Electric heat
Electric heat
control panel
DS1 Balance of unit Main control panel
3
DS3 Electric heat
Electric heat
control panel
DS2
Supply & return fan
motors, controls
Main control panel
DS1 Balance of unit Main control panel
WIRE
GAUGE
QTY./
POLE
INSULATION
RATING (°C)
NO. OF
CONDUITS
CONDUIT
(TRADE
SIZE, IN.)
FOR MCA
UP TO
(AMPS)
10 1 60 1 1/2 30
8 1 60 1 3/4 40
6 1 60 1 1 55
4 1 60 1 1-1/4 70
3 1 60 1 1-1/4 85
2 1 60 1 1-1/4 95
1 1 75 1 1-1/4 130
1/0 1 75 1 1-1/2 150
2/0 1 75 1 2 175
3/0 1 75 1 2 200
4/0 1 75 1 2 230
250 1 75 1 2-1/2 255
300 1 75 1 2-1/2 285
350 1 75 1 3 310
400 1 75 1 3 335
500 1 75 1 3 380
3/0 2 75 2 2 400
4/0 2 75 2 2 460
250 2 75 2 2-1/2 510
300 2 75 2 2-1/2 570
350 2 75 2 3 620
400 2 75 2 3 670
500 2 75 2 3 760
250 3 75 3 2-1/2 765
300 3 75 3 2-1/2 855
350 3 75 3 3 930
