Page 8 IM-738

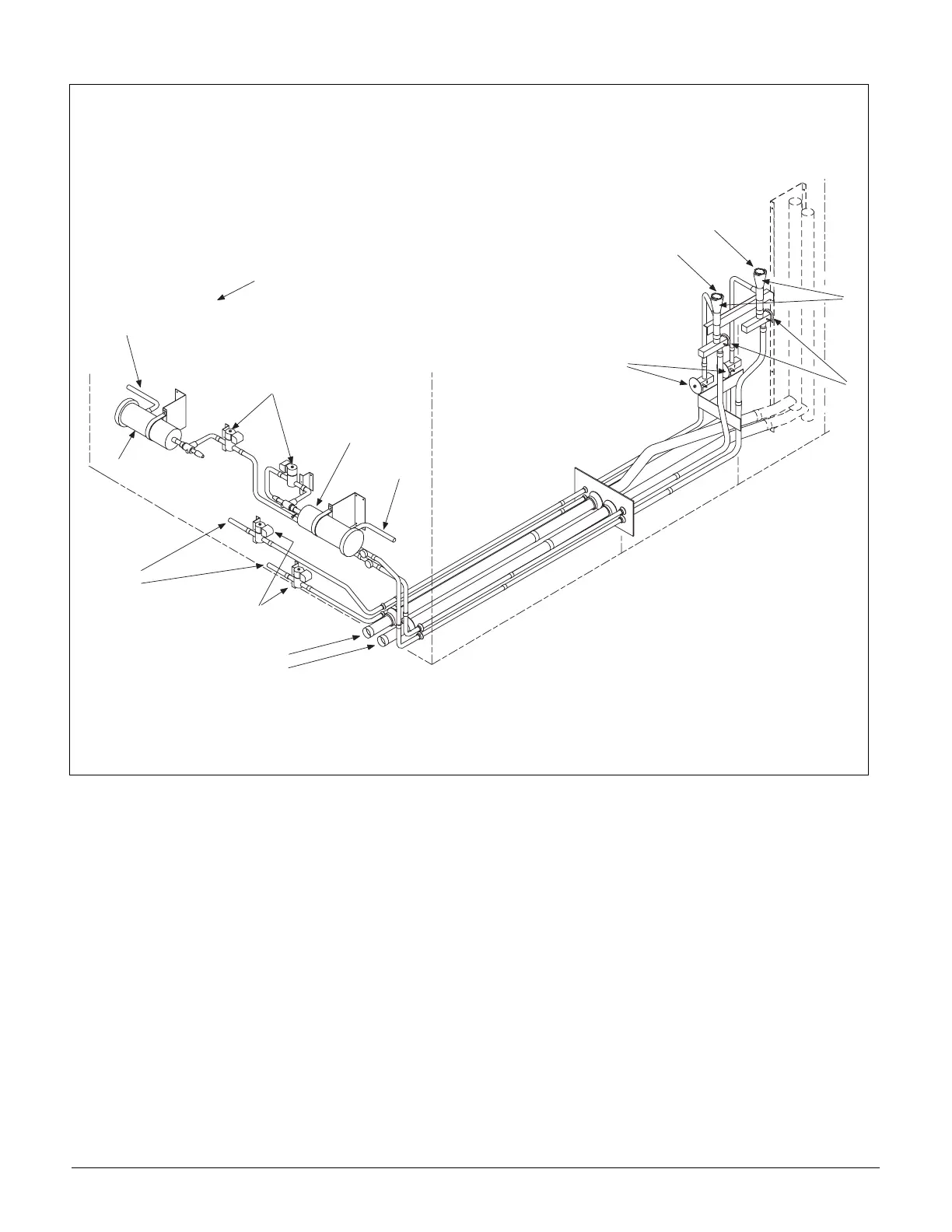

Figure 5. Air Handler Piping (Flat DX)
L i q u i d L i n e
C i r c u i t # 1
2
1
L i q u i d L i n e
C i r c u i t # 2
1
S u c t i o n L i n e
C i r c u i t # 1
C i r c u i t # 2
O p t i o n a l
H o t G a s
B y p a s s
L i n e
C i r c u i t # 1
C i r c u i t # 2
4
5
6
7
C i r c u i t # 1
C i r c u i t # 2
C o n d e n s e r
S e c t i o n
Legend
1 - Filter-Drier
2 - Liquid Line Solenoid Valve
3 - Sightglass
4 - Hot Gas Bypass Solenoid Valve (Optional)
5 - Hot Gas Bypass Valve (Optional)
6 - Thermostatic Expansion Valve
7 - Distributor
