Uncoupling

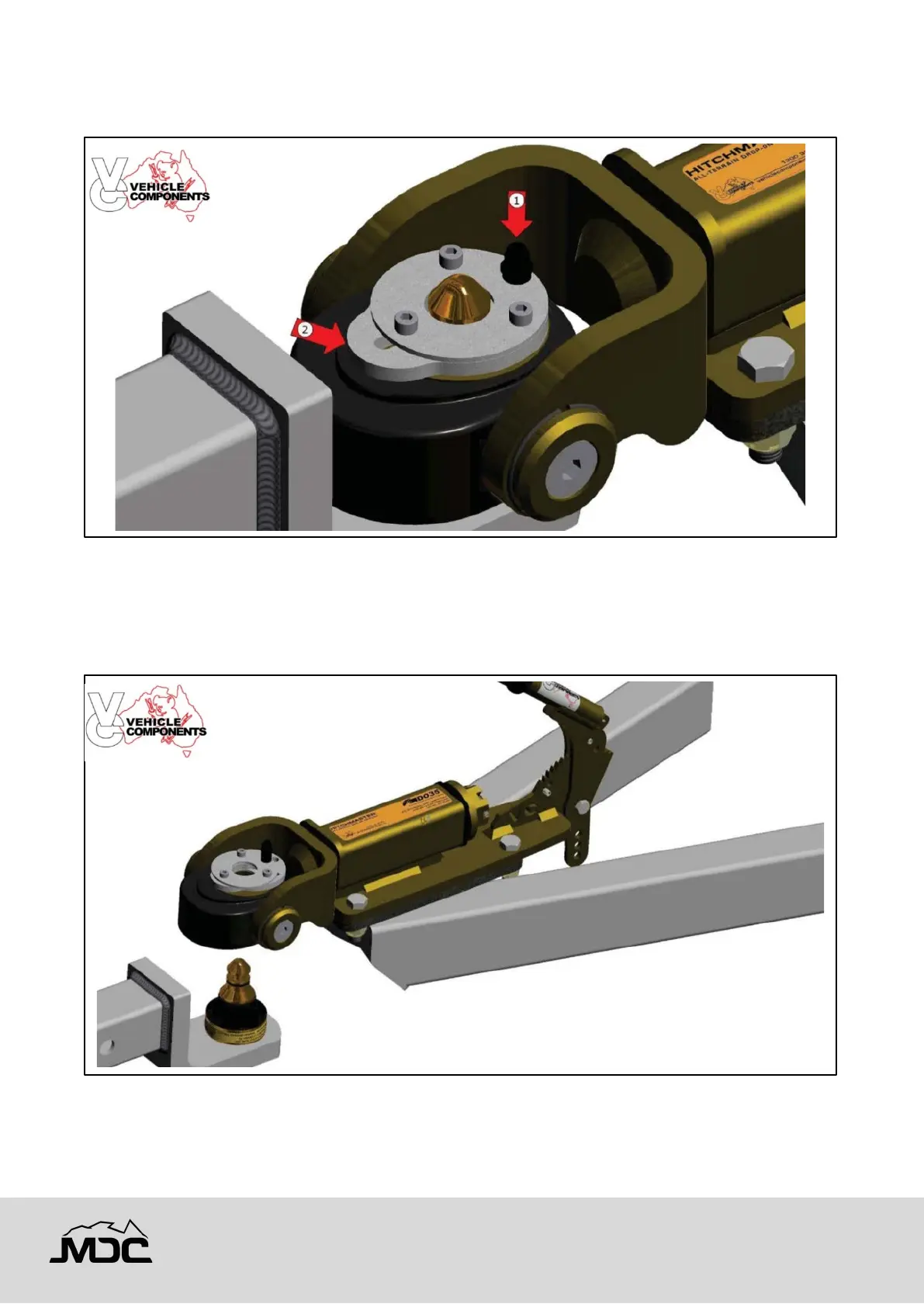

STEP 1
Push down the button 1 and push the locking mechanism back 2. When the locking mechanism is all the
way back, release the button while holding the mechanism to ensure it does not spring back to the locked
position.
STEP 2
Lift the coupling up off the tow pin.
