Suspension
Suspension maintenance should be done as per the schedule contained in this booklet. Regular lubrication and

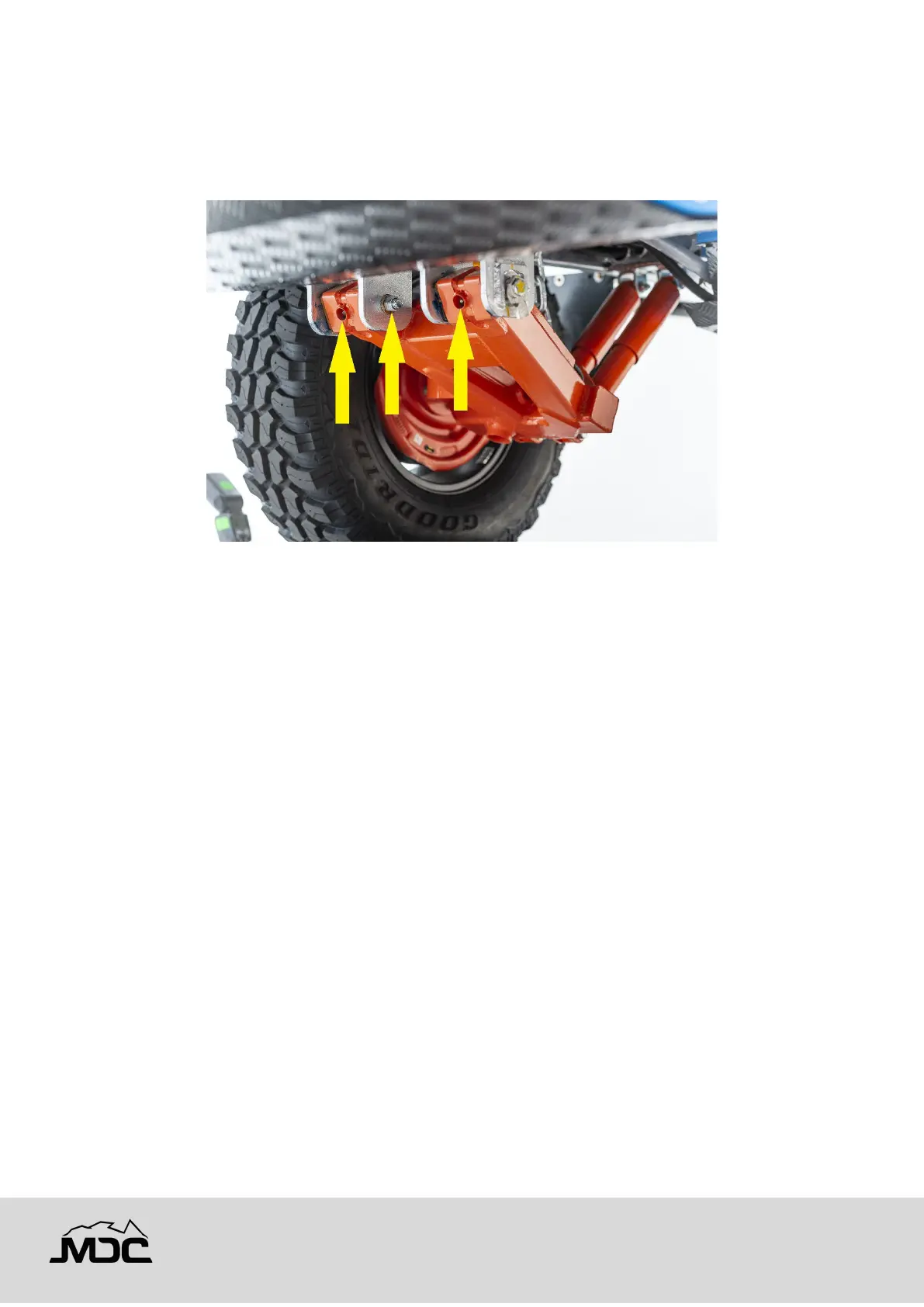

inspection are critical, and the grease points are indicated below. Regular checks of the torque on the trailing arm
bolts indicated will prolong correct wheel alignment.
Trailing arm suspension should not be reversed up gutters and obstructions in a heavy matter. Always use a ramp
or similar if you are backing over high gutters and obstacles.
Handbrake
A correctly adjusted handbrake should raise 1/3 to ½ of the allowable range at the handbrake handle. Poorly
adjusted handbrakes are dangerous. Under adjusted they may allow the trailer to roll and over adjusted can cause
brake linings to drag and overheat the brakes while driving.
Parking brakes are mechanically operated by cable means. The cable attachment occurs outside of the brake
backing plate. Cable force applied to the parking lever creates a torque through the pivot pin and cam assembly.
Torque transferred to the parking cam results in a spreading force between the primary and secondary shoes. The
shoes in turn, move towards the drum until contact is made. Friction generated between the drum and lining
contact surface results in parking brake capability.
Use the cable adjuster to give enough tension to be able to set the handbrake lever on the last two notches of
the coupling or handbrake is 1/3 raised when unladen. This needs to be checked again when the trailer is loaded.
If the cable is too tight, the brakes will be applied as the axle moves backward under spring deflection.
