IMC15
6
4.2 Mounting
All installation work has to be carried out by qualified person-
nel.
Before installing the device check it thoroughly on transporta-
tion damage and mind the following points:
• Never install a device having transportation damages!
• Report any case of transportation damage immediately to
the manufacturer!
• Always send back the device using the original packaging!
For the installation please refer to the dimensions given in the
appendix. When placing the device in the plant (e.g. a cabinet)
please check, that air flow for cooling the device is not blocked
and that the climatic requirements are respected at all times.

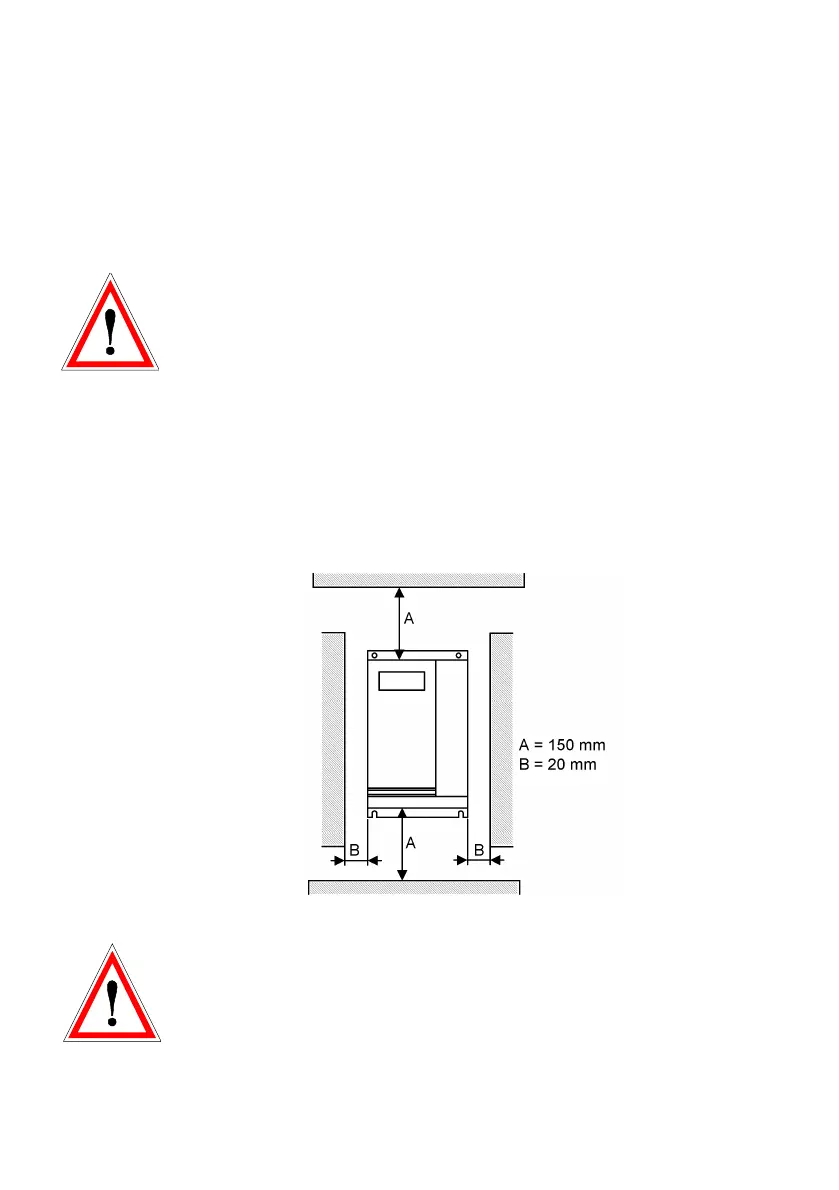

Due to the heating of the device under operation, the following
spacings have to be respected for the installation:
The IMC15 is listed as an „open type device“ and must be
installed into a machine or a plant. Installations that allow
open access to the device are prohibited.
