IMC15
8

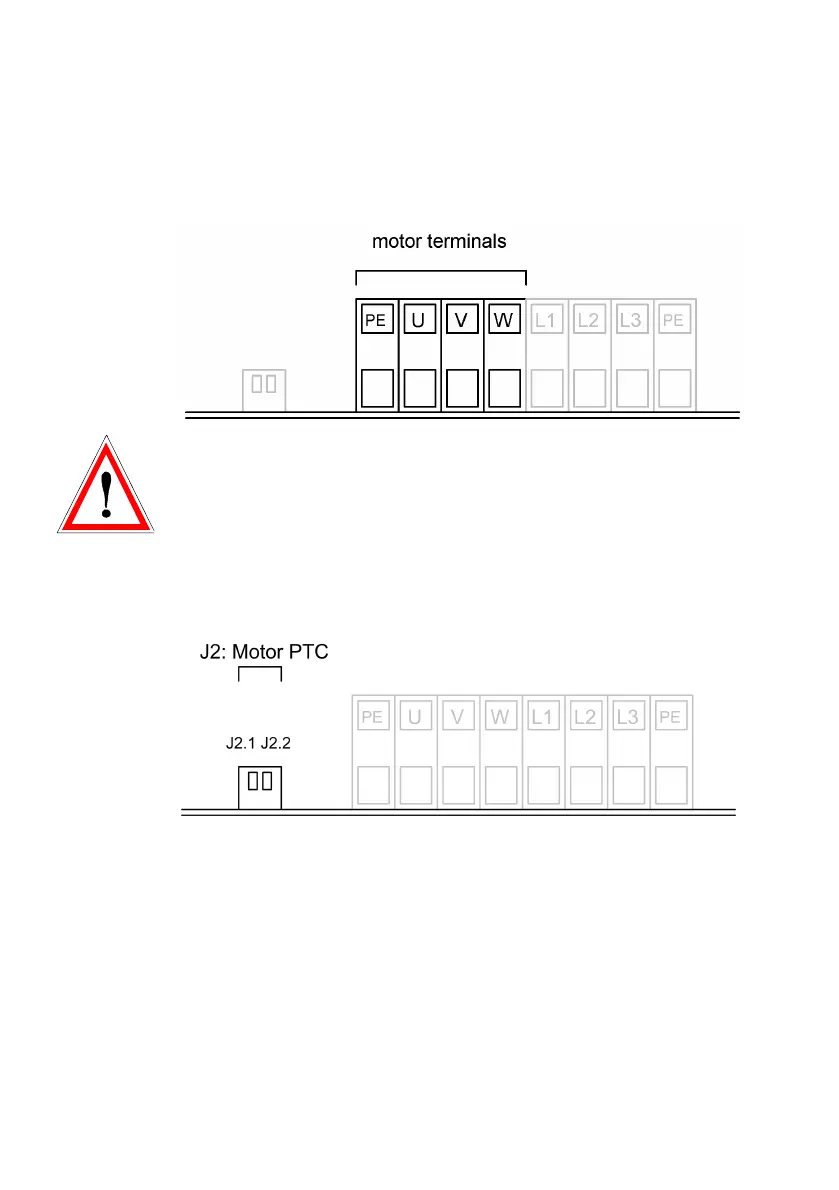

4.3.3 Motor Terminal Block
To ensure proper sense of rotation, always respect the motor
phase succession given by the supplier.
The device has been designed to be used with permanent
magnet synchronous motors and has to be set anew if the
motor changes. Never operate any motor without prior con-
sent of MECOS AG.
If the motor is equipped with a PTC for stator winding tempe-
rature limit monitoring, it can be connected to the terminal
block J2 intended for that use (no polarity to be respected)
