4 Installation
5
4 INSTALLATION

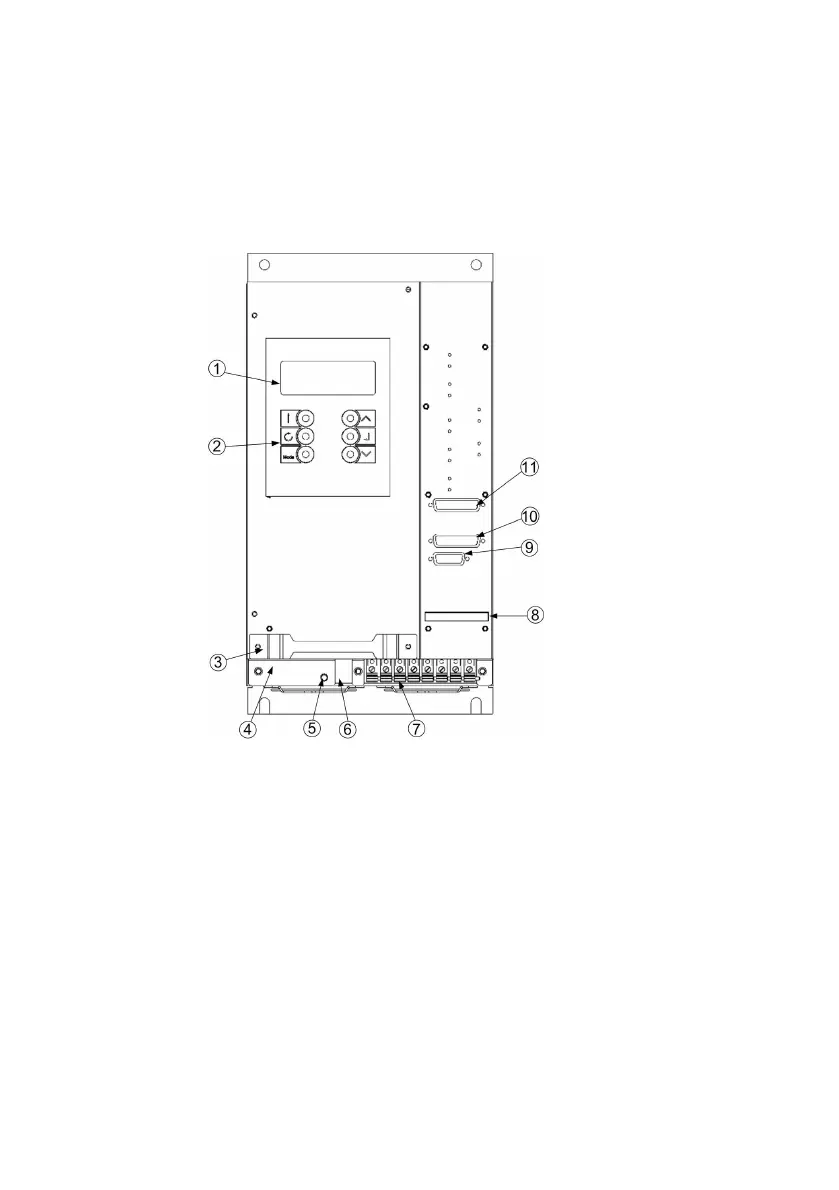

4.1 Overview
1. Display (LCD)
2. Keypad
3. Mounting rail for magnetic bearing cabling
4. Slot for flash memory card
5. Dowel pin for electrical shield connection
6. Terminal block for stator winding temperature monitoring by PTC
(cage clamp: AWG 26-14, 0.14-1.5 mm
2
)
7. Terminal block for motor and mains connections
(screw terminal block:AWG 18-6, 0.82-13.3 mm
2
)
8. Digital I/O interface
9. Connector for the sensors (cable lenghts up to 23 m)
10. Connector for the sensors using SMX6B for variable cable lengths
from 2 to 31 m as well as CAN bus
11. Connector for the bearing magnets
