MECOS IMC15 - 5.3 Menus

IMC15
18
5.3 Menus
5.3.1 Menu Tree

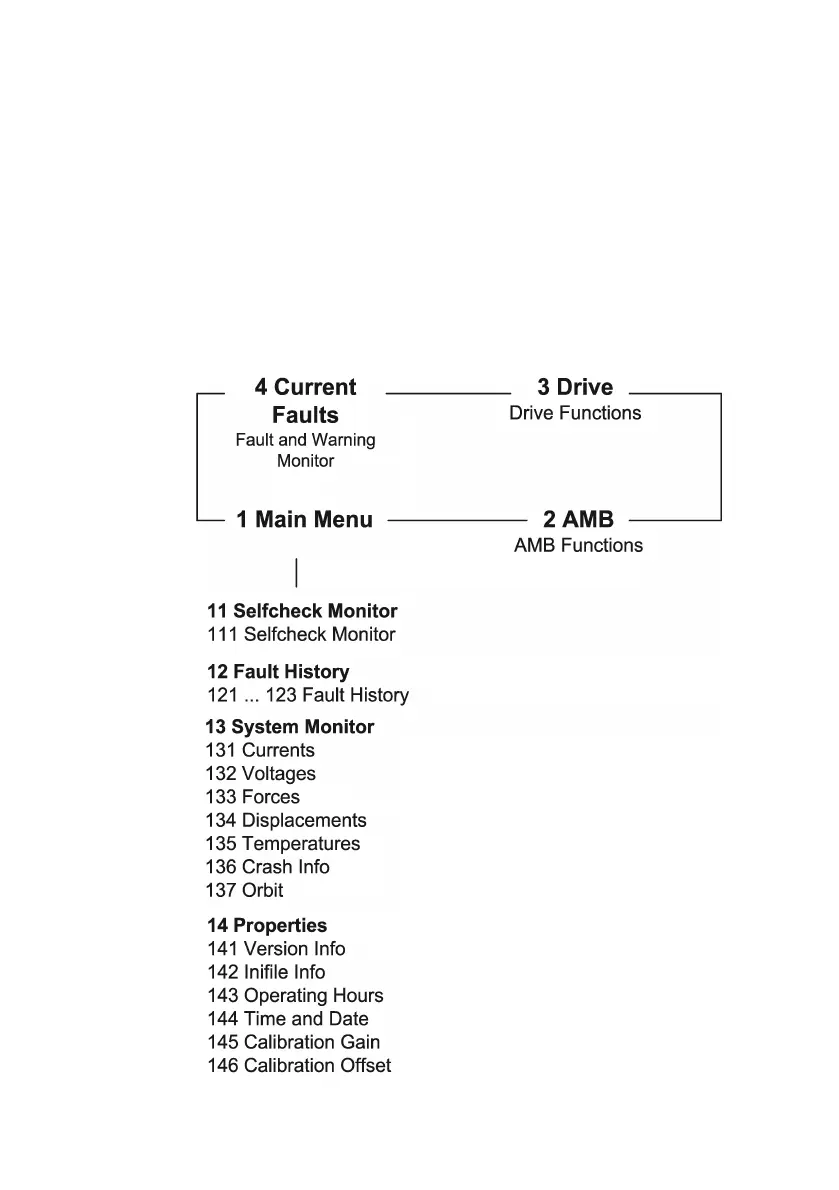

The menu tree shown below provides an overview over the
menus that can be accessed using the display and the keypad
of the IMC15. The 4 modes „Main Menu“, „AMB“, „Drive“ and
„Current Faults“ can be accessed using the „Mode“ Button. The
contents of the modes is explained in the following sections.
