4.3.5 Connectors of the Customer Specific Interfaces

Dependig on the model of IMC15 one or more of the following

connectors may be provided:

For the pin assignment and electrical specification of the

DigI/O connector please refer to the appendix.

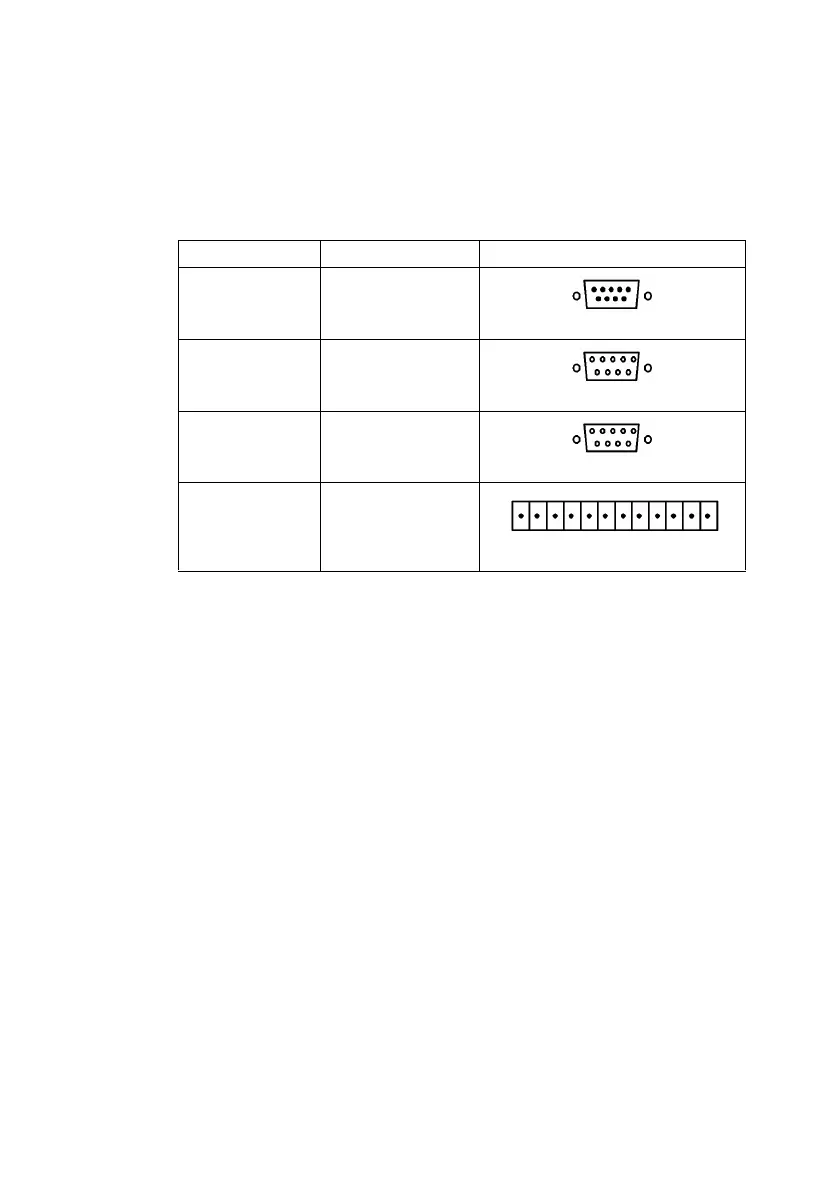

Designation Function Connector

X5 Multipur-

pose

Measurement

signals

D-Sub 9 pin, male

X6 CAN Field bus

D-Sub 9 pin, female

X7 Profibus Field bus

D-Sub 9 pin, female

X2 Dig I/O Digital inputs,

outputs and insu-

lated supply

Mini-Combicon 12 pin, male
