• Digitale Interface (Digital I/O)

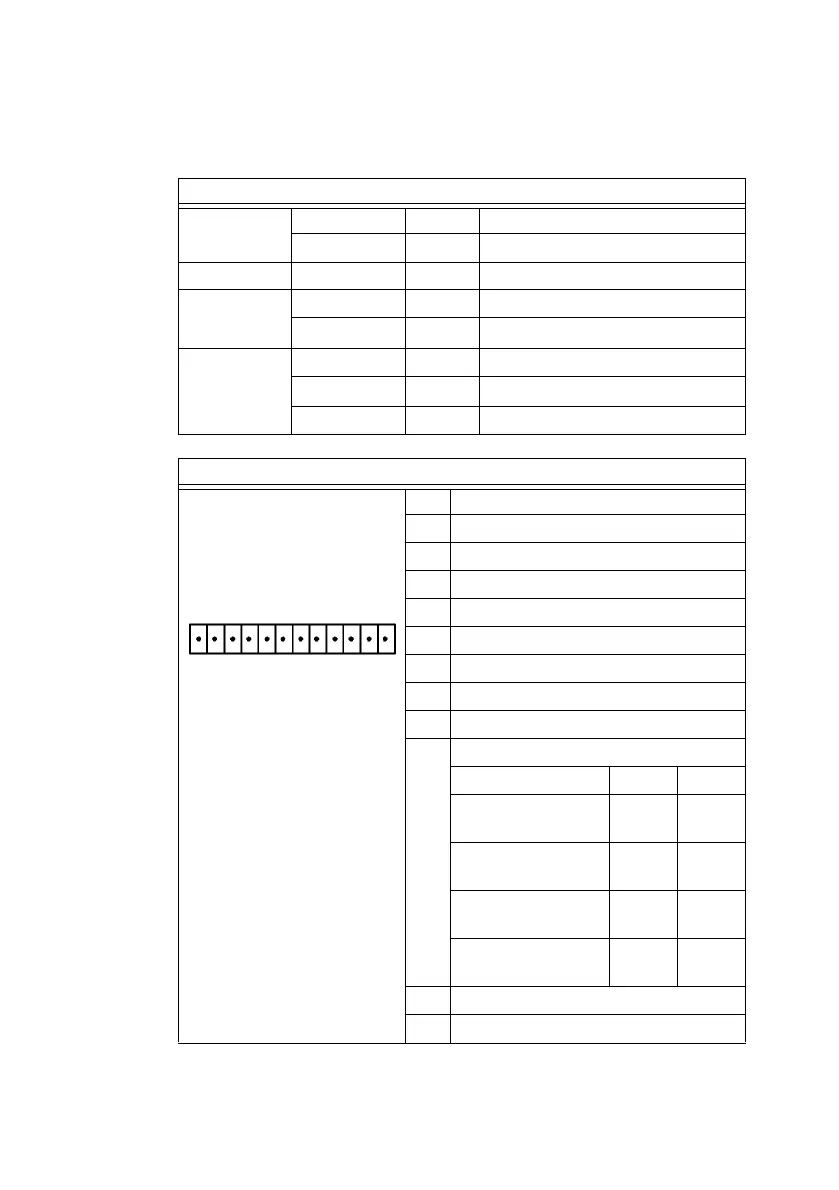

Electrical Specifications
Uout No Load 25 V
@200mA 23.2 V @ Ta = 55 °C
Iout Maximum 0.2 A @ Ta = 55 °C
Digital Out Umax 80 V Open collector output
I
source
10 mA
Digital In Uin,max 30 V
Uin,typ 24 V I
sink
= 7.5 mA
Uin,min 15 V minimal voltage for logic „1“
Pin Out Connector X2
1 12
1 +24 V
2 GND
3 Out: nominal speed reached
4 Out: no drive fault
5 Out: no bearing fault
6 In: reset fault
7 In: drive start
8 In: Selection of Inifile
9 Out: No drive or bearing warning
10 In: Selection of Inifile
X2:8 X2:10
Inifile 1
LSM4000,900Hz
open open
Inifile 2
LSM3000,900Hz
+24 V open
Inifile 3
LSM4000,1100Hz
open +24 V
Inifile 4
LSM3000,760Hz
+24 V +24 V
11 Sleep mode on (+24 V) / off
12 not used
