compact piezo led connections

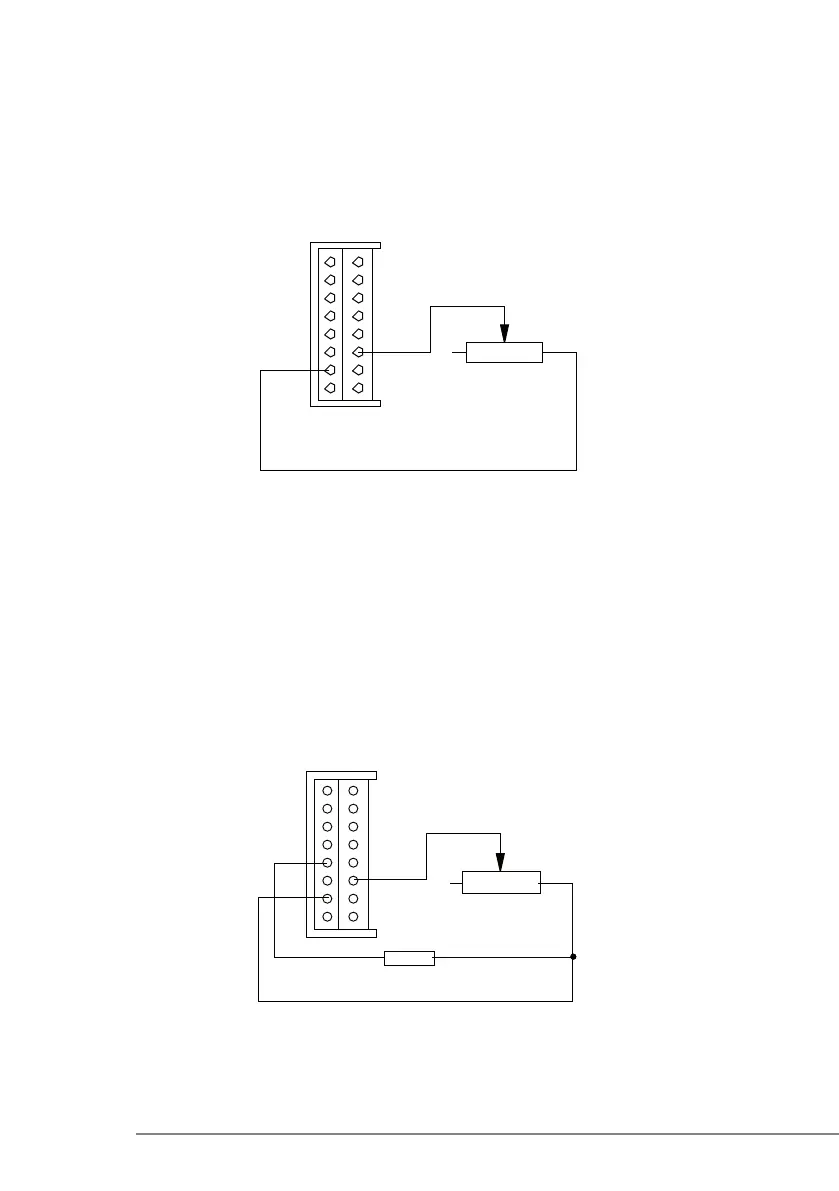

Power regulation
Connect the potentiometer of 2.2K between pins 6 and 10.
The maximum power corresponds to resistance 0.
Connect the potentiometer of 10 K between pins 6 and 10 and a setting resistance of 20 Kohm
1/8W 1% between pins 12 and 10.
The maximum power corresponds to resistance 0.
1
2
3
4
5
6
7
8
13
16
15
14
12
9
10
11
Potentiometer
10 K linear
Resistence
20 K 1/8 W 1%
1
2
3
4
5
6
7
8
13
16
15
14
12
9
10
11
Potentiometer
2.2 K linear
