26
compact piezo led connections

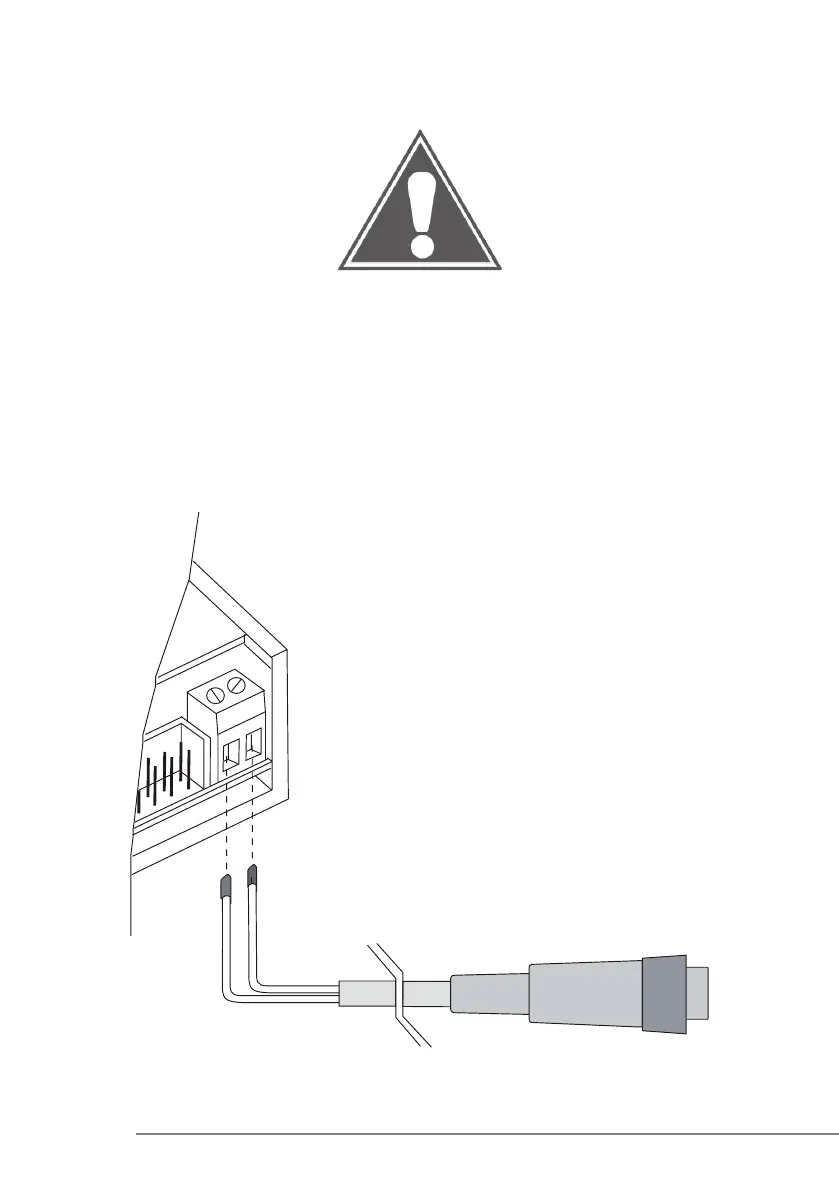

Connecting the scaler handpiece cord
1 Connect the handpiece cord wires to terminal M2 respecting the polarity
RS - red wire
NE - black wire
2 The voltage of the line that powers the appliance must comply with the indications given on the
data plate and with the connecting diagram selected.
3 Do not put the scaler handpiece cord’s red and black wires with other wires.
4 If long connections are necessary for powering, use wires with a suitable cross section like, for
instance, 1.5 mm
2
.
Handpiece cord
Black
wire
Red
wire
