mectron COMPACT PIEZO LED - Page 25

25

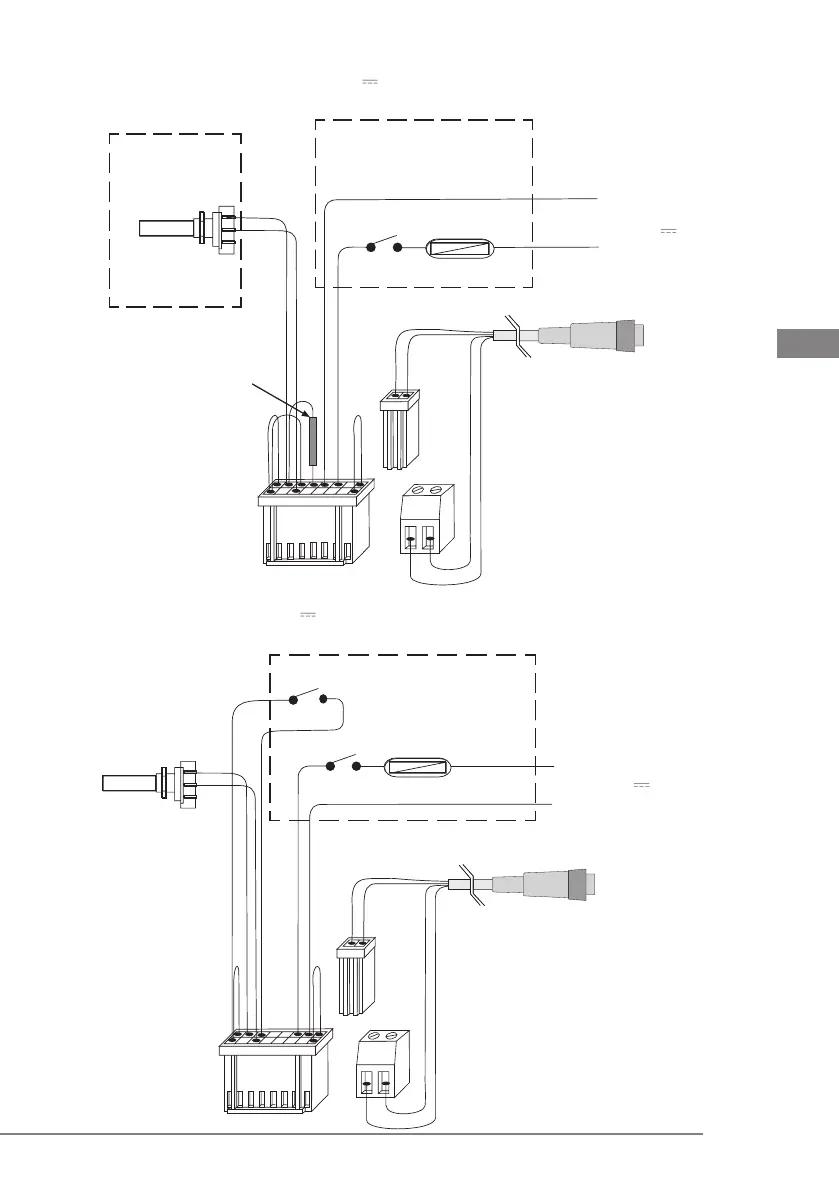

compact piezo led connections
EN
-  Power (24V
~
or 32 V ) and consent are footswitch controlled.
A potentiometer (4.7K linear) adjusts power.
-  Power (32 V
) is supplied through the contact on the quiver and
positive consent is footswitch controlled.
8 7 6 5 4 3 2 1
9 16
1 2
T 2 A
Footswitch
Fuse
Fuse holder, fuse and foot-
switch are not included in Mec-
tron’s supply
Yellow
Yellow
Potentiometer
4.7 K linear
Black
Red
Scaler handpiece cord
White
White
Supply voltage
24 V
~
50/60 Hz o
32 V
Minimum 40VA
Potentiometer is
not included in
Mectron’s supply.
Resistence
39 K 1/8 W 1%
Violet
Gray
 
       
 
Supply voltage
32 V
Minimum 40VA
Blue
Blue
Potentiometer
2,2 K linear
Black
Red
Scaler handpiece cord
Black
Red
T 2 A
Footswitch
Fuse
Quiver
Yellow
Yellow
Fuse holder, fuse,
footswitch and quiver
are not included in
Mectron’s supply
Violet
Gray
