mectron COMPACT PIEZO LED - Page 24

24

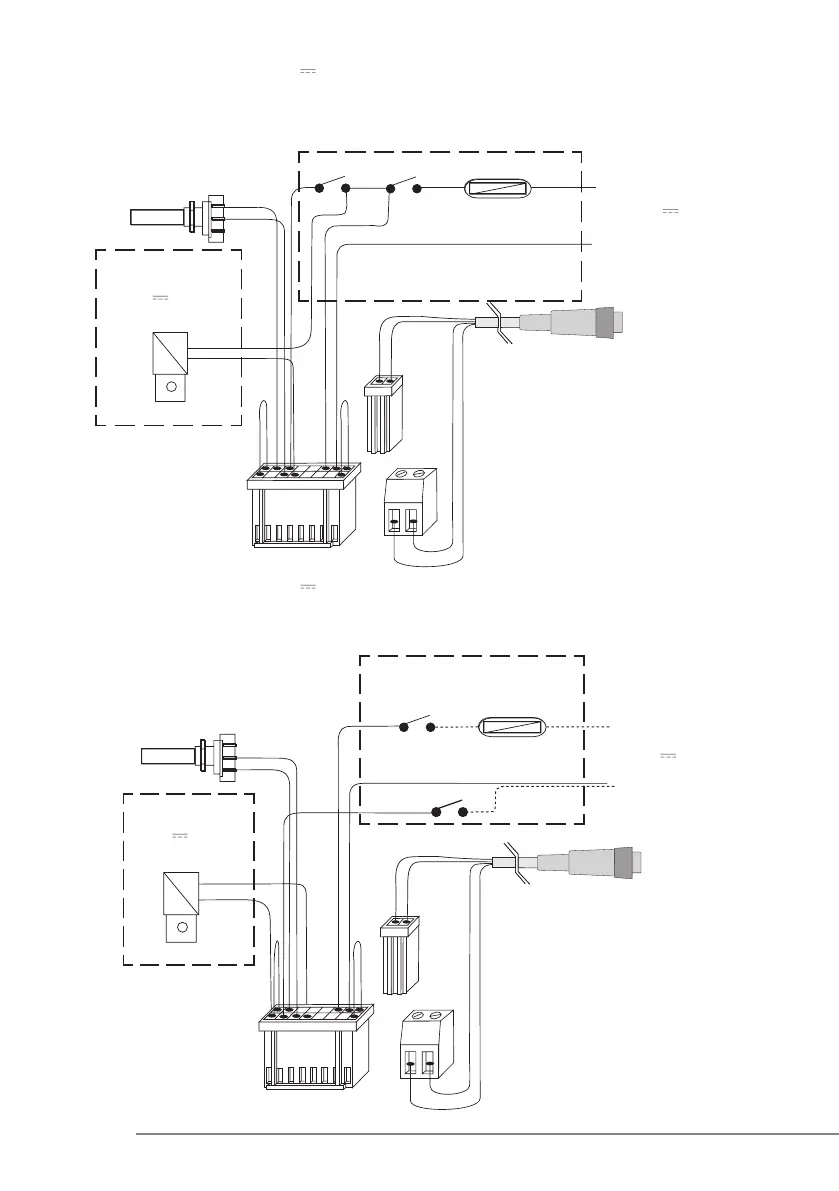

compact piezo led connections
8 7 6 5 4 3 2 1
9 16
1 2
T 2 A
Black
Footswitch
Fuse
Supply voltage
32 V
Minimum 40VA
Quiver
Negative
Positive
Fuse holder, fuse, footswitch and
quiver are not included in
Mectron’s supply
Yellow
Yellow
Green
Potentiometer
2.2 K linear
Solenoid valve
(optional)
24 V 2,5W
Black
Red
Scaler handpiece cord
Green
White
Brown
Violet
Gray
-  Power (32 V ) is supplied through the contact on the quiver and
consent is footswitch controlled. This type of connection permits very
fast ON/OFF cycles and does not stress the external power circuit with high
loads.
1 2
9 16
8 7 6 5 4 3 2 1
Blue
T 2 A
Black
Red
Footswitch
Fuse
Supply voltage
32 V
Minimum 40VA
Quiver
Negative
Positive
Fuse holder, fuse, footswitch and
quiver are not included in
Mectron’s supply
Yellow
Yellow
Green
Potentiometer
2.2 K linear
Solenoid valve
(optional)
24 V 2,5W
Black
Red
Scaler handpiece cord
Violet
Gray
-  Power (32 V ) is supplied through the contact on the quiver and
negative consent is footswitch controlled. This type of connection allows very
fast ON/OFF cycles and does not stress the external power circuit with high
loads.
