mectron COMPACT PIEZO LED - Power Regulation 0-10 V; Controls; Solenoid Valve Control

20

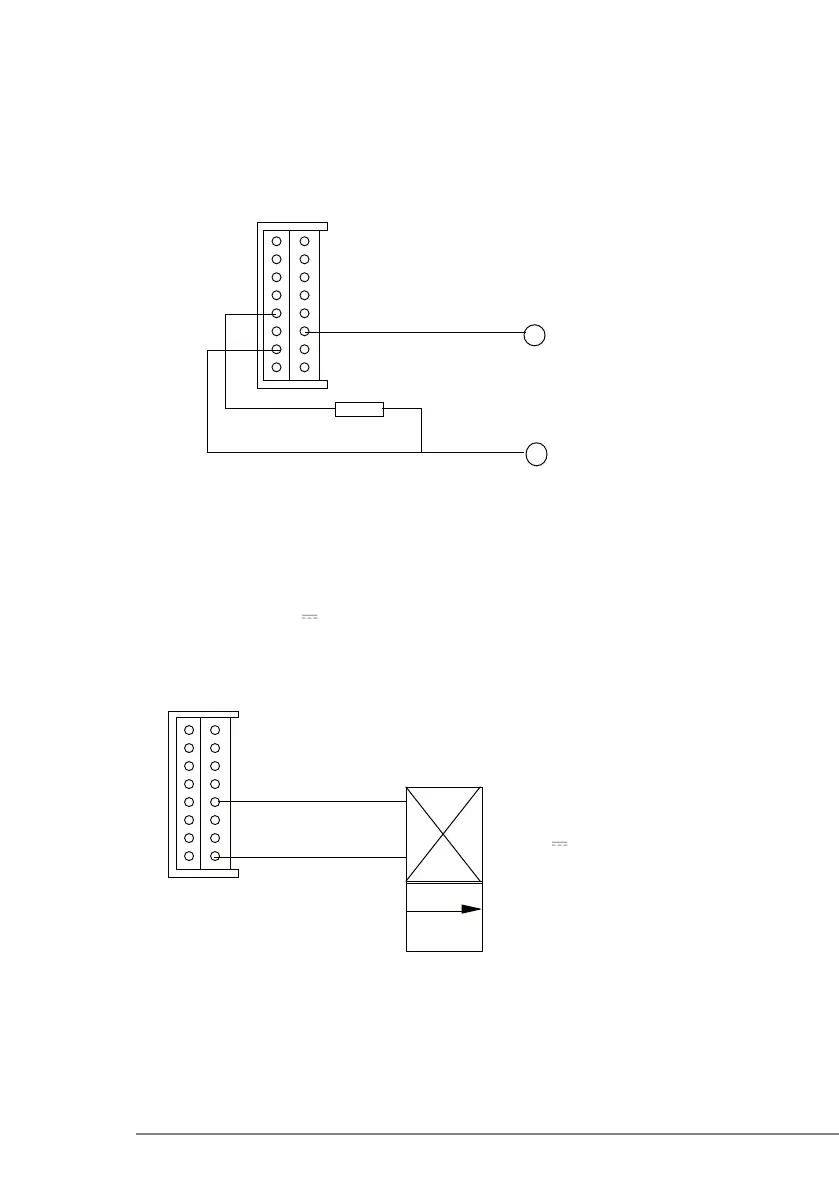

compact piezo led connections

The power modulation can be carried out with a variable voltage between 0 and 10 Volts applied
between pins 6 and 10 (earth).
Connect a setting resistance of 10 K 1/8W 1% between pins 12 and 10.
1
2
3
4
5
6
7
8
13
16
15
14
12
9
10
11
Solenoid valve
(optional)
24 V 2,5W
-
+
0-10V 1mA
1
2
3
4
5
6
7
8
13
16
15
14
12
9
10
11
Resistence
10 K 1/8 W 1%
Controls

Connect a solenoid valve at 24 V 2,5 W to pins 5 and 8.
