11
WIKA operating instructions hydraulic high pressure controller model CPC8000-H
PN 0018708001B 11/2020 EN
EN
2. Short overview
2.2 Components
2.2.1 CPC8000-HC pneumatic pressure controller
The CPC8000-HC is composed of:
■
A CPC8000 pnuematic pressure controller
■
A 35 bar (508 psi) gauge pilot transducer
■
Optional internal barometric reference transducer
■
Touchscreen interface for local operation
■
Communication ports on rear panel for remote operation
■
Programmable sequences for automated calibration

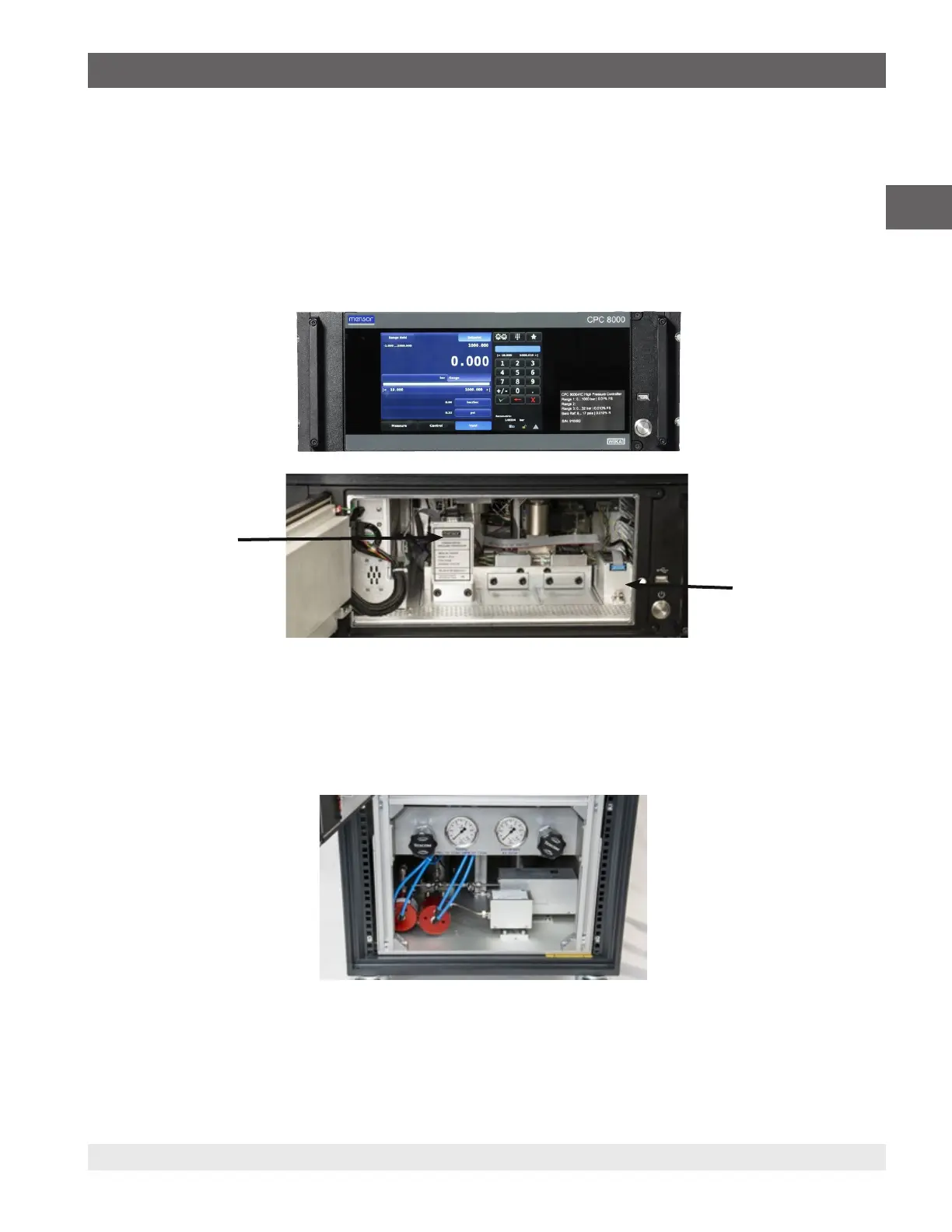

Figure 2.2.1 CPC8000-HC 1
2.2.2 CPC8000-HM hydraulic module
The CPC8000-HM is the housing for the intensifiers and reference pressure transducers. This module consists of:
■
Two intensifiers working in parallel for quick control and larger volumes
■
Priming pump to ensure the DUT and intensifiers are purged
■
Media reservoir tank with sight glass for maintaining an optimal fluid level
■
Filling nozzle for easy refilling of the hydraulic media. (Sebacate, Shell Tellus and distilled water. Consult factory for other media)
Figure 2.2.2 CPC8000-HM
2.3 Turning On
Apply power to the power connector on the rear panel of the CPC8000-HC with the included power cord and press the power
switch to ON. The system will go through an initialization process, which takes about 1 minute, and then a display will appear
similar to the screen shown below. The instrument must be powered on for a minimum of 60 minutes to allow for best system
accuracy.
Optional barometric
reference
Pilot Transducer
To Next Page
