6.4.2.2 Sensor Settings
The Sensor settings can be accessed by entering the Settings application from the Main screen and choosing the Sensor
tab on the bottom row. This application allows adjustments to the filtering, resolution, units, rate units, and user units 1 and 2. All of
these adjustments are applied as changes to the instrument software, they are not permanently stored on the sensor.

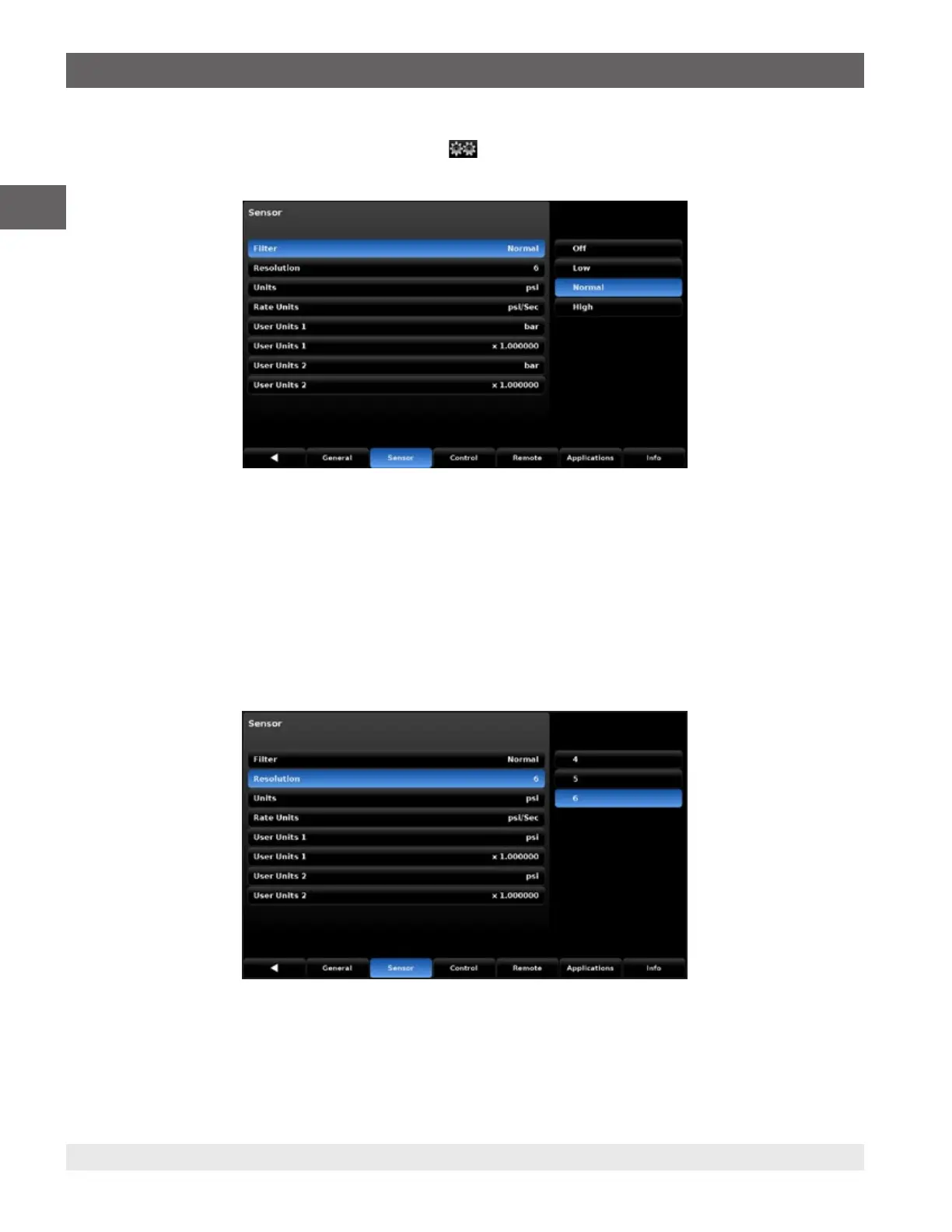

Figure 6.4.2.2 Sensor Settings
6.4.2.2.1 Sensor Filter
By default, the Sensor settings tab will open to the Filter setting menu(Figure 6.4.2.2). This setting applies a software filter to
smooth out the pressure readings. Because of differences in resolution, greater filtering may display a more stable reading for
some pressure units. By default, the filter is set to "Normal", users can select varying degrees of filtering for the current units by
selecting "Off", "Low", or "High".
6.4.2.2.2 Sensor Resolution
The resolution of the displayed pressure value can be set in the Sensor settings using the Resolution button. The resolution allows
the user to select between 4 and 6 digits of resolution on the sensor reading on the main screen.
6.4.2.2.3
Figure 6.4.2.2.2 Resolution
Units Setting
The pressure units setting can be found in the Sensor setting application by pressing the "Units" button(Figure 6.4.2.2.3). Pressing
this will open a scrolling menu on the right side of the screen that allows the user to select pressure units in English or Metric
systems. Selecting any of these units will change the unit of measure for all of the internal pressure transducers and will also apply
these units to readings taken remotely. This setting is identical to the Units button on the Main screen.
