6.4.2.1.4 Brightness
The Brightness settings can be adjusted by selecting the "Brightness" button and pressing a location on the green bar graph on
the right side of the screen (Figure 6.4.2.1.4). This can be adjusted from 10% at the bottom point, up to 100% at the top. This
adjustment will be implemented on all screens and can be saved to configurations. By default the brightness is set to 70%.

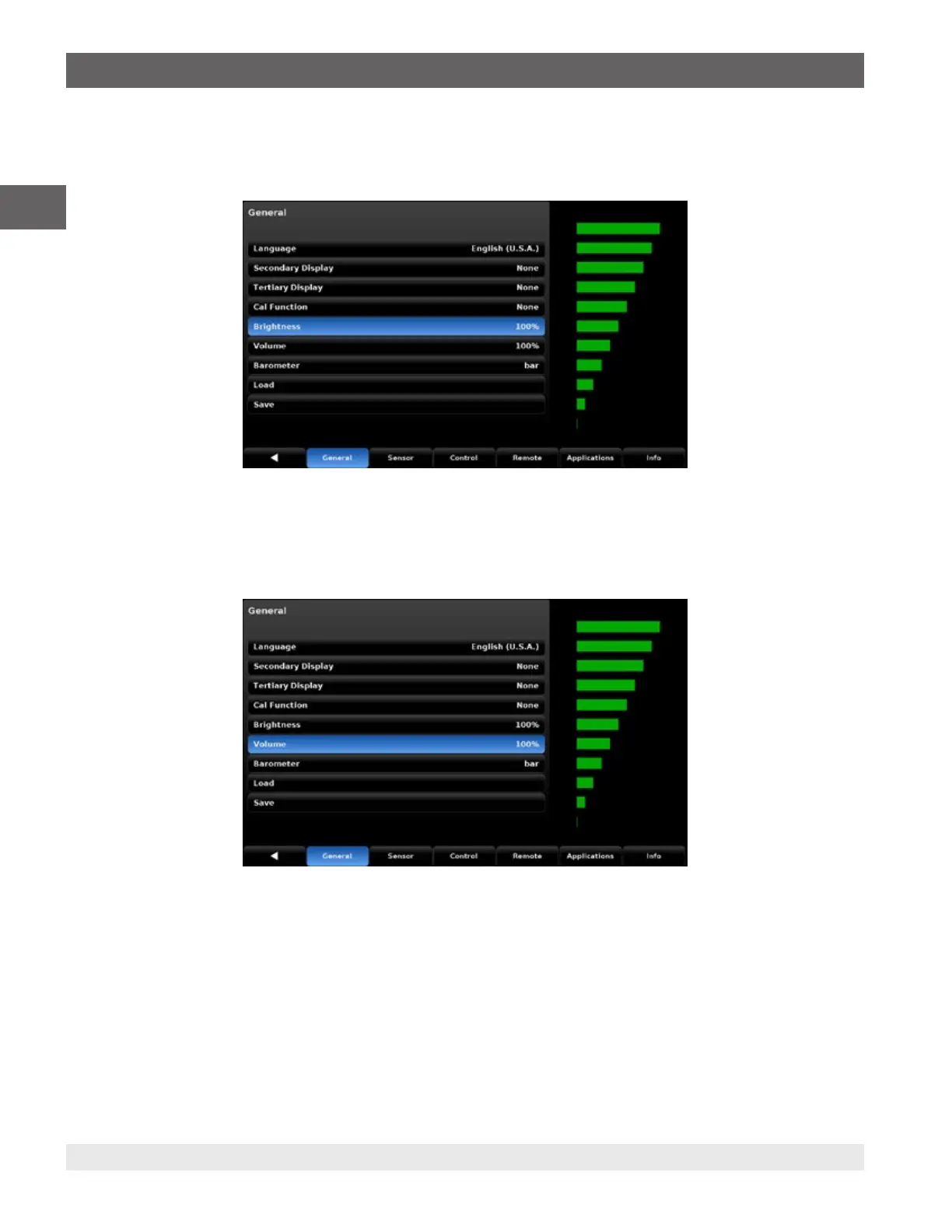

Figure 6.4.2.1.4 Brightness
6.4.2.1.5 Volume
The volume settings can be adjusted by selecting the "Volume" button and pressing a location on the green bar graph on the
right side of the screen (Figure 6.4.2.1.5). This can be adjusted from 0% to 100% and the volume setting can be saved to a
configuration. By default the volume is set to 70%.
6.4.2.1.6
Figure 6.4.2.1.5 Volume
Barometer Units
The barometer units are selected on the general tab by pressing "Barometer" and then selecting the units on the right side of the
screen (Figure 6.4.2.1.6). The barometer units are available in all the standard pressure units and can be in metric or english
units. The chosen units will appear next to the barometeric reference pressure reading located on the status bar in the bottom right
corner of the main screen. The barometer selection will only appear if the optional barometric reference transducer is installed in
the controller.
