44
WIKA operating instructions hydraulic high pressure controller, model CPC8000-H
PN 0018708001B 11/2020 EN
EN
6. Operation

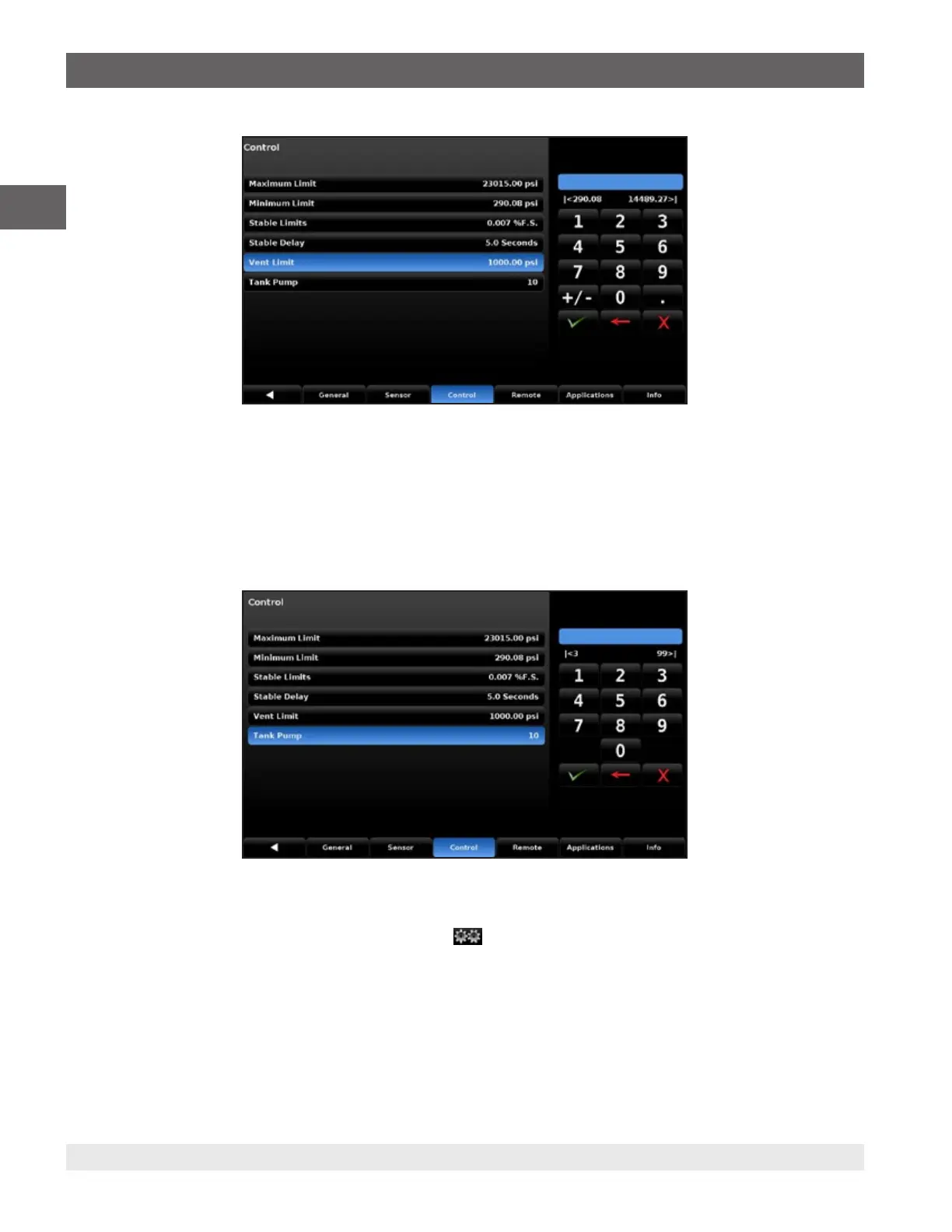

Figure 6.4.2.3.3 Vent Limit
6.4.2.3.4 Tank Pump
The Tank Pump setting can be found in the Control application and modified by pressing "Tank Pump"(Figure 6.4.2.3.4). The Tank
Pump is the number of cycles that the priming process will attempt before failure. This process occurs when the instrument is
switched from Vent mode to Control mode. The CPC8000-H will attempt to flood the system with hydraulic media to a threshold
pressure. If this threshold pressure is not reached, it will cycle the priming pump again. This process will continue until the Tank
Pump value has been reached. The Tank Pump has a default value of 10 cycles but can be set anywhere between 3 and 99.
Figure 6.4.2.3.4 Tank Pump
6.4.2.4 Remote Settings
The Remote settings can be accessed by entering the Settings application from the Main screen and choosing the Remote
tab on the bottom row (Figure 6.4.2.4). This application contains two pages and allows adjustments to the command set,
termination character, and all settings related to IEEE-488, ethernet, and serial communication ports. This application is used
when configuring a remote connection between the CPC8000-H and an external computer. Details about remote operations and
commands can be found in Section 7.
