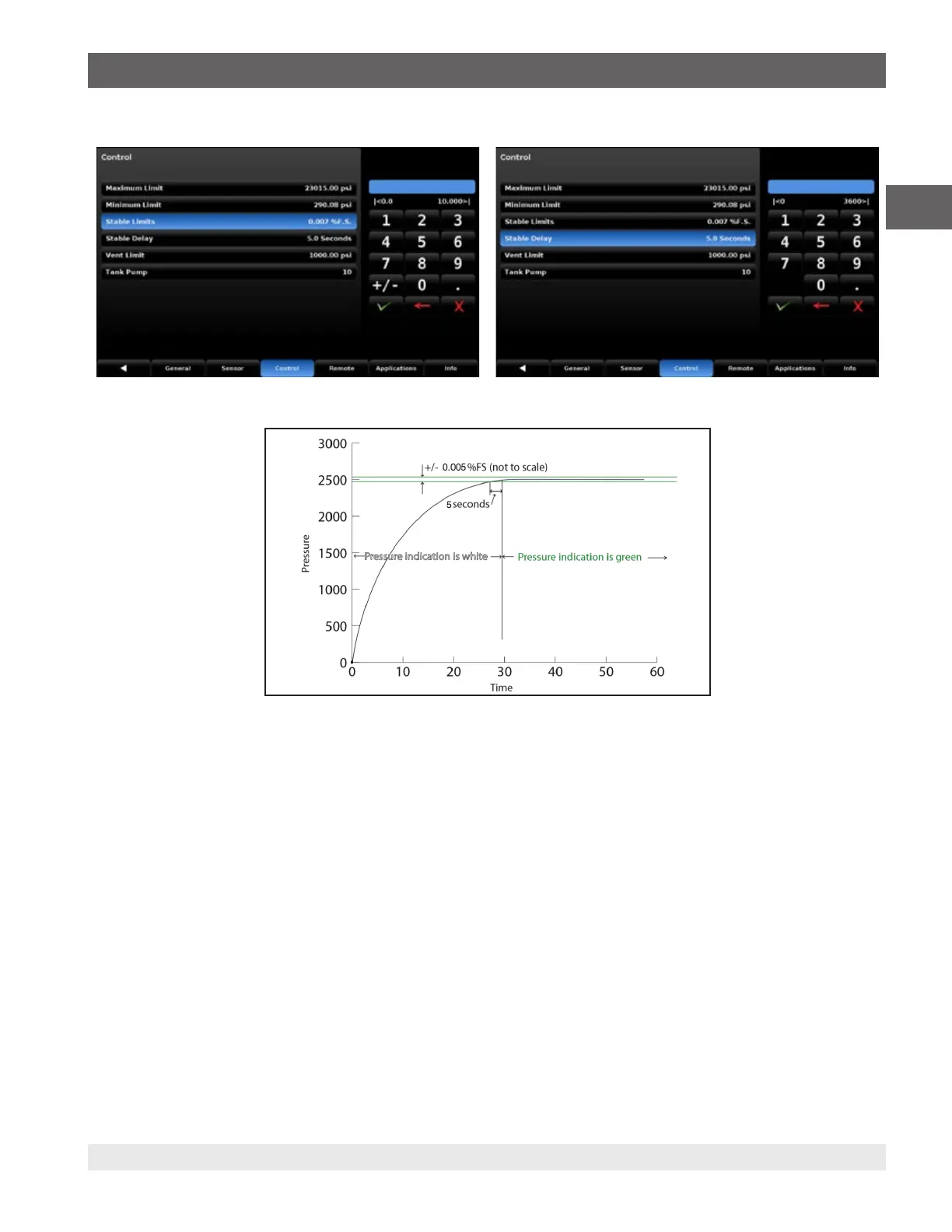

Figure 6.4.2.3.2-B Stable Delay
Figure 6.4.2.3.2-A Stable Limits
Figure 6.4.2.3.2-C Graph Illustration
6.4.2.3.3 Vent Limit
The Vent Limit can be found within the Control application by pressing "Vent Limit" (Figure 6.4.2.3.3). This is the pressure at
which the controlled vent stops and the vent solenoid is opened, causing the pressure to vent through the vent port uncontrolled.
The vent limit can be set within the values. At this pressure, the pneumatic pressure will be relieved through the vent port on the
CPC8000-HC, and the hydraulic pressure will be released back to the media reservoir on the CPC8000-HM.
