WIKA operating instructions hydraulic high pressure controller model CPC8000-H
PN 0018708001B 11/2020 EN
EN
7.5 Serial
Set the Serial communication parameters as shown in Section 6.4.2.4 Remote Settings. The serial communication port allows the
CPC8000-H to communicate in RS-232 format with computers, terminals, PDAs, or similar hosts.
These parameters should be set to match your host computer. Default settings are: 57600 baud, 8 data bits, 1 stop bit, no parity,
and no echo.
If echo is ON, the CPC8000-H will immediately echo back characters sent over the serial port. The Serial function allows the user
to set the RS-232 serial port settings by selecting from the choices provided:
■
Baud
⇒
9600
⇒
19200
⇒
38400
⇒
57600
⇒
115200
■
Data Bits
⇒
7
⇒
8
■
Stop Bits
⇒
1
⇒
2
■
Parity
⇒
Even
⇒
Odd
⇒
None
■
Echo settings
⇒
On
⇒
Off
7.5.1 Serial Cable Requirements

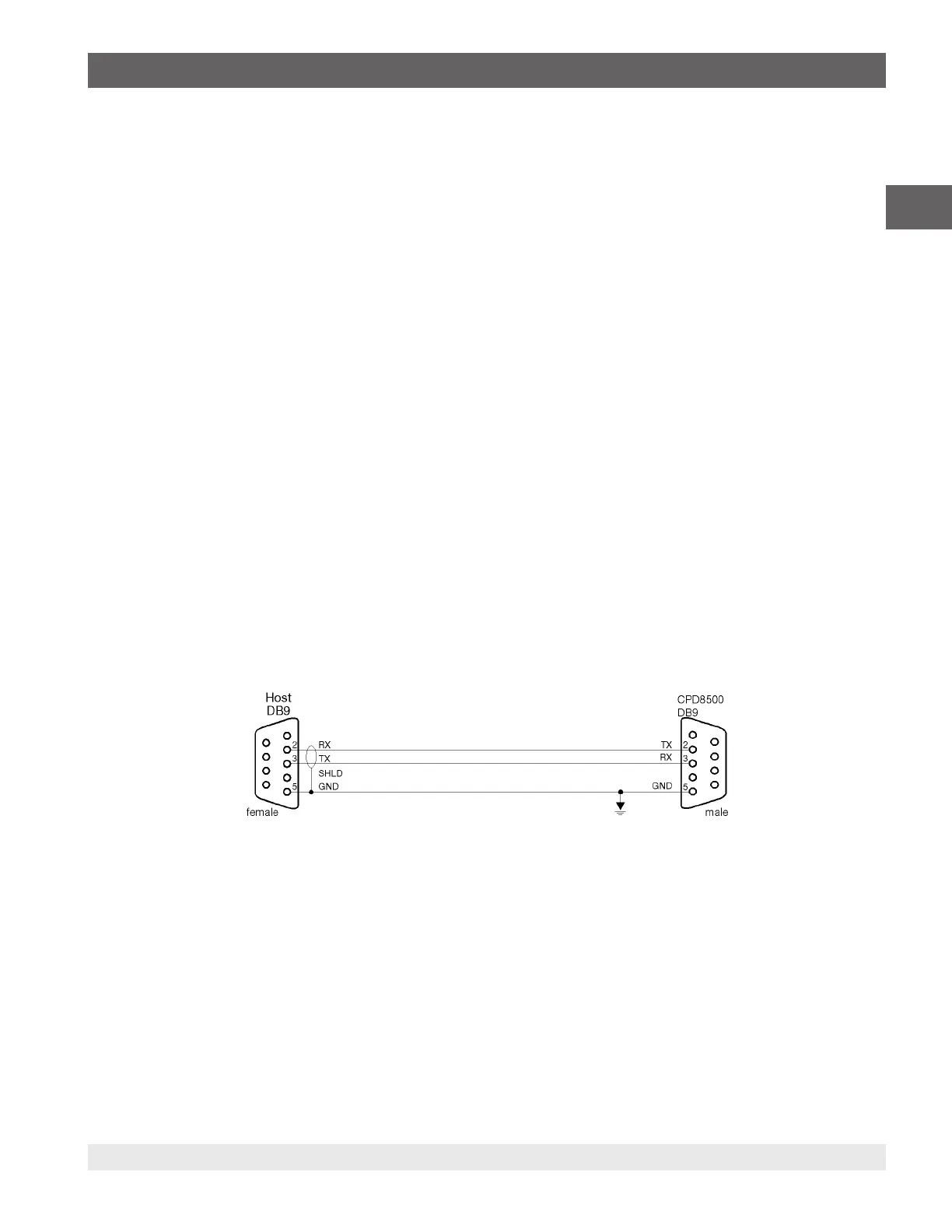

RS-232 communications are transmitted over a three conductor, shielded cable terminated in a standard DB9 connector on the
instrument end, and a different gender connector on the host end. The proper pin-outs are shown in the following illustration.
