WIKA operating instructions hydraulic high pressure controller model CPC8000-H
PN 0018708001B 11/2020 EN
EN

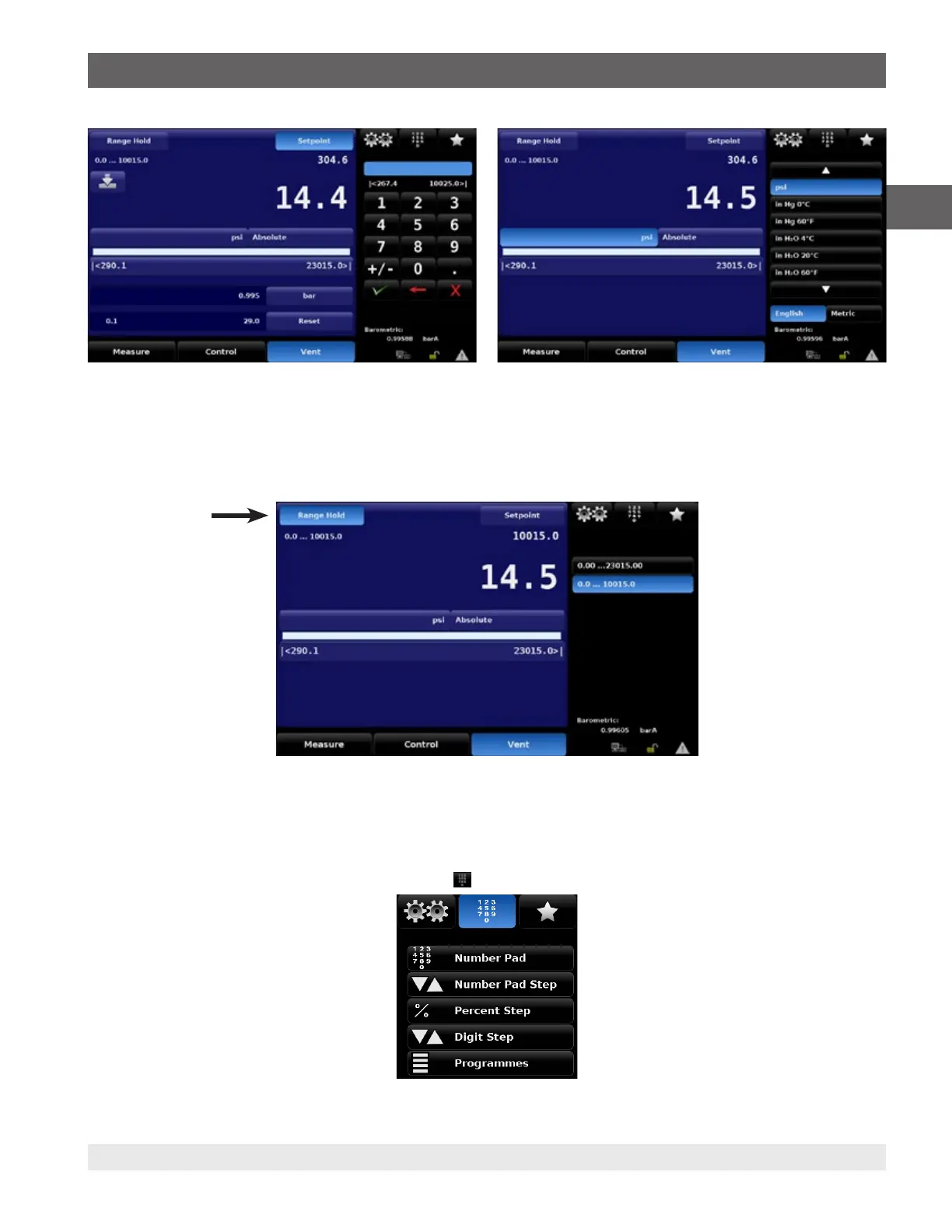

Figure 6.4.1-B Main Screen w/Auxiliary
Figure 6.4.1-C Main Screen Units
6.4.1.1 Range Hold
The Range Hold button allows the user to select the active range transducer from a list of installed transducers. By clicking Range
Hold, the user can select the active transducer from the primary and optional secondary transducer. The instrument must be fully
vented in order to switch between ranges. The primary range will always be listed on top and the secondary range will be beneath.
Range Hold
Figure 6.4.1.1 Range Hold
6.4.1.2 Setpoint
By default, the Setpoint button is enabled on the screen with a keypad accessible on the right third(Figure 6.4.1.2-B). The Setpoint
button allows the user to enter the desired pressure value within the range of the transducers and module inside the instrument.
There are multiple ways of entering the control setpoint: numeric keypad, number pad step, percentage step, digit step or a
program. These methods can be accessed by pressing the keypad button on the top right of the screen(Figure 6.4.1.2-A).
6. Operation
Figure 6.4.1.2 Keypad Options
