4000 MPC GEN II PISTOL GRIP REMOTE CONTROL INSTALLATION INSTRUCTIONS
Page 12 / 22 90-8M0103111 FEBRUARY 2015

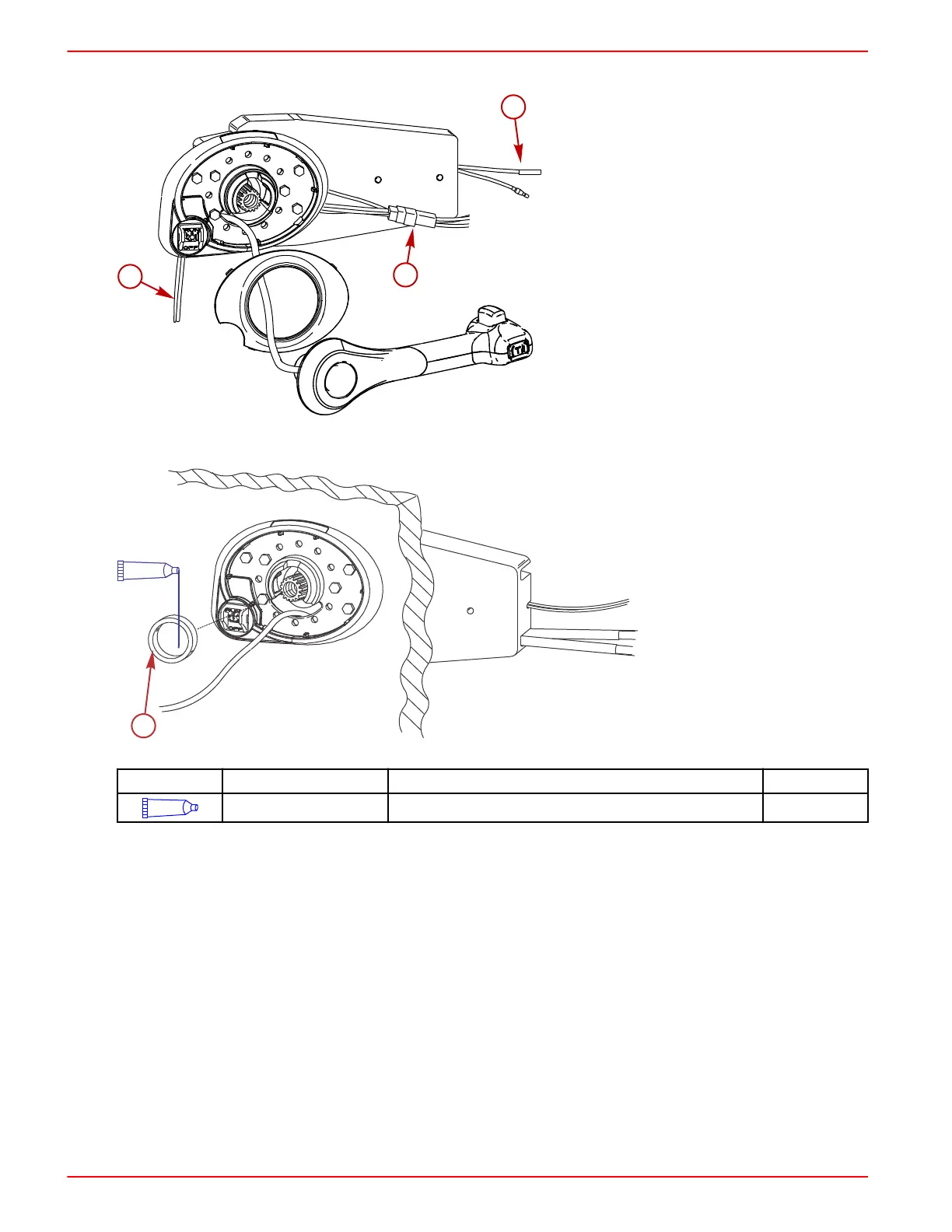

4. Connect the trim switch connector to the trim motor harness connectors.
a - Lanyard stop switch leads
b - Neutral start safety switch leads
c - Trim switch connection
5. Install the bushing into the module assembly. Apply a small amount of 2‑4‑C with PTFE to the inside diameter of the
bushing.
a - Bushing
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Inside diameter of the module assembly bushing 92-802859A 1
24970
b
a
c
17446
95
a
