4. Repeat step 3. until the alignment tool installs easily (SLIDES FREELY WITH TWO
FINGERS) all the way into and out of engine coupler splines. Do not check by turning
the alignment tool.
22029
a
b

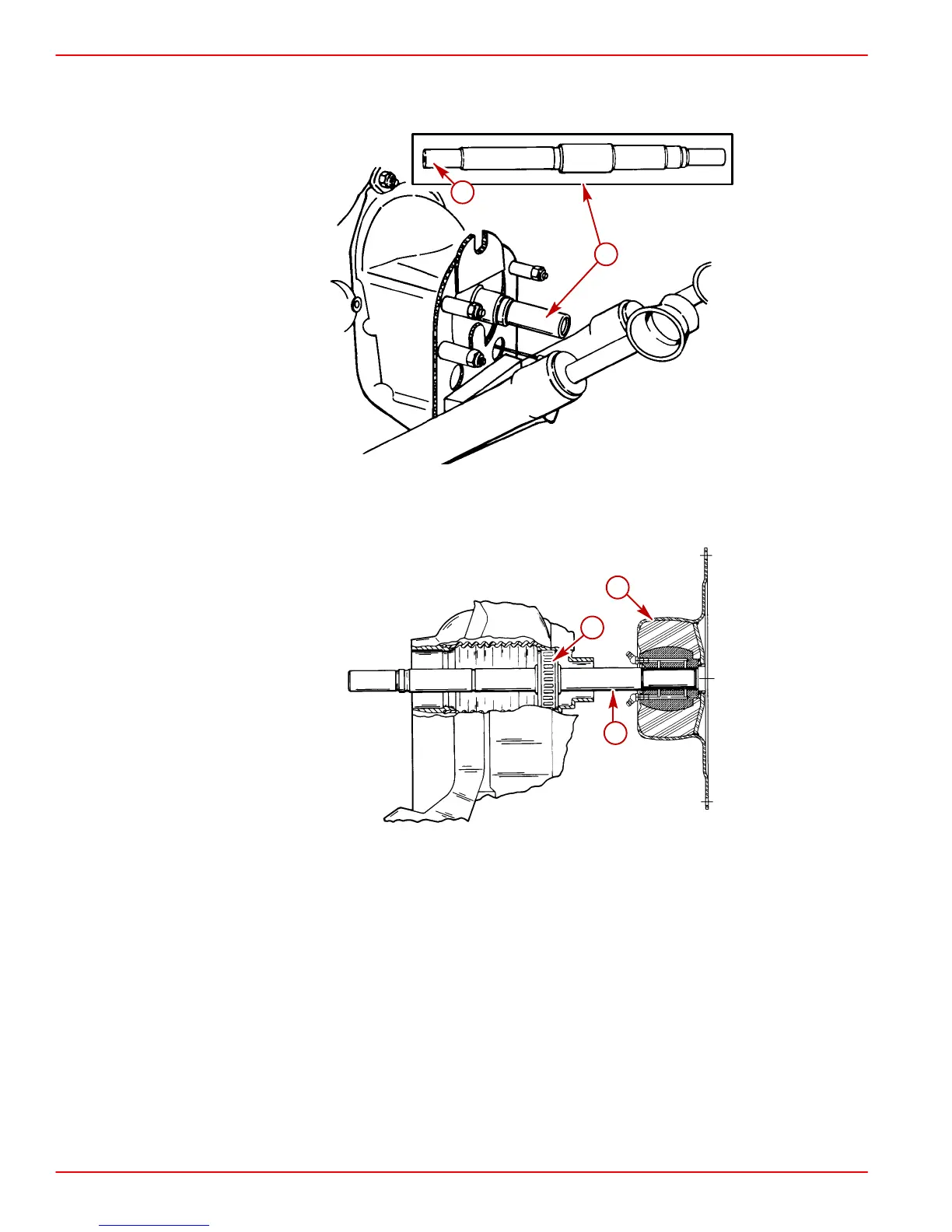

a-Alignment Tool (Use Only Recommended Alignment Tool)
b-Insert This End Of Alignment Tool Through Gimbal Housing Assembly
27647
c
b
a
a-Alignment Tool
b-Gimbal Bearing
c-Engine Coupler
