GASOLINE STERNDRIVE INSTALLATION MANUAL
90-860172011 Page 51 of 137
IMPORTANT: Finished boat stringer must position engine so that a minimum mount
adjustment exists after front mount is adjusted down to stringer. This allows for
future adjustments.
5. 3.0L Center Mount Model:
a. Set the engine on the stringer.
b. Relieve the hoist tension.
c. Attach the hoist to the center alignment eye.
d. Fasten front mount to the stringer.
e. Recheck alignment.
f. Tighten locknut and jam nut securely.
22054
a
b
c
d
e
b

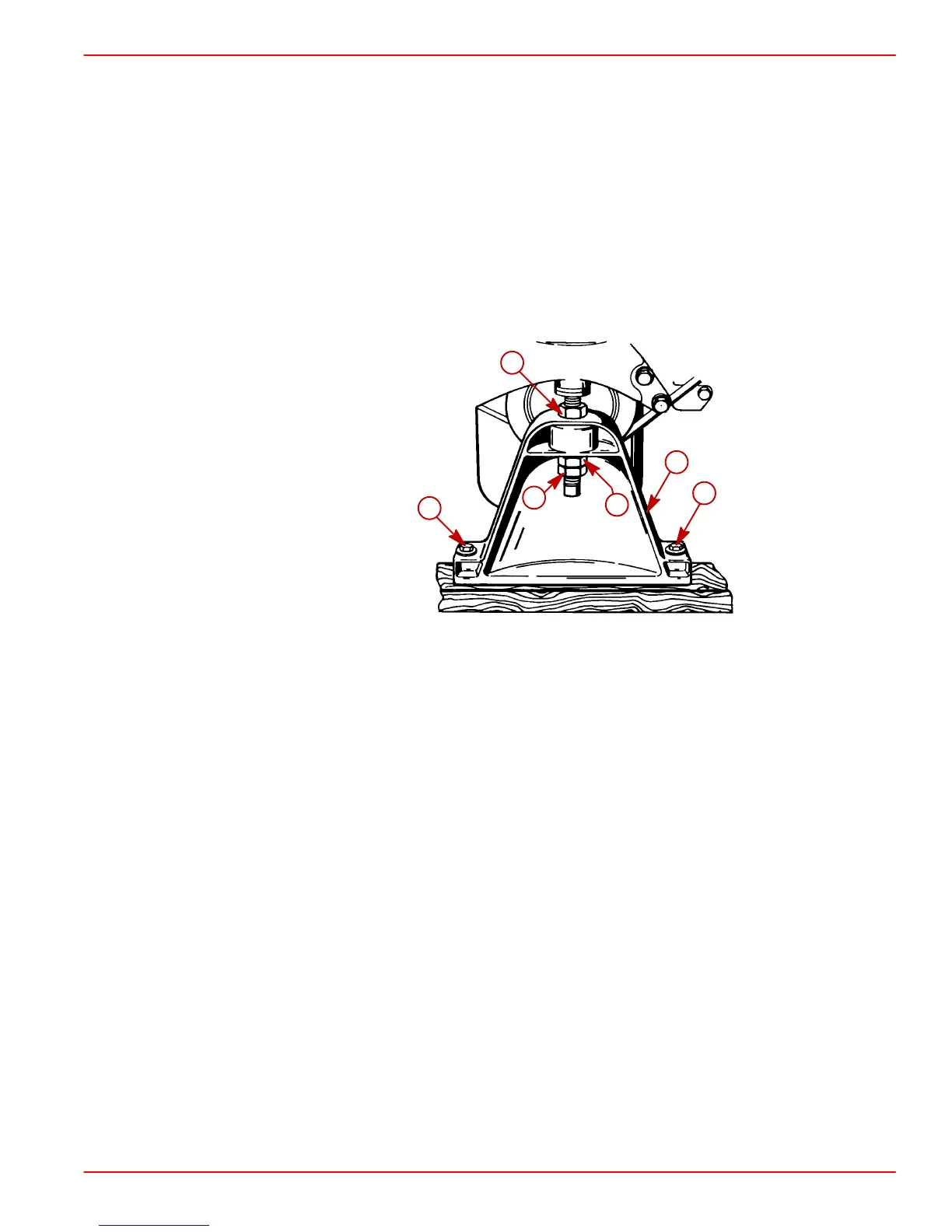

3.0L Center Mount Model
a-Front Mount
b-Attaching Bolts and Flat Washers
c-Adjusting Nut
d-Locknut
e-Jam Nut
