DRIVE SHAFT / PROPELLER SHAFT MODELS
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 8F-9
3. Apply Loctite 271 to threads of bottom drive shaft shield retaining screws and install bot-
tom shields on engine and transom end. Then install both top shields as shown. Torque
all fasteners to 30 lb. ft. (41 N·m).
70245
a
b
c
d
e

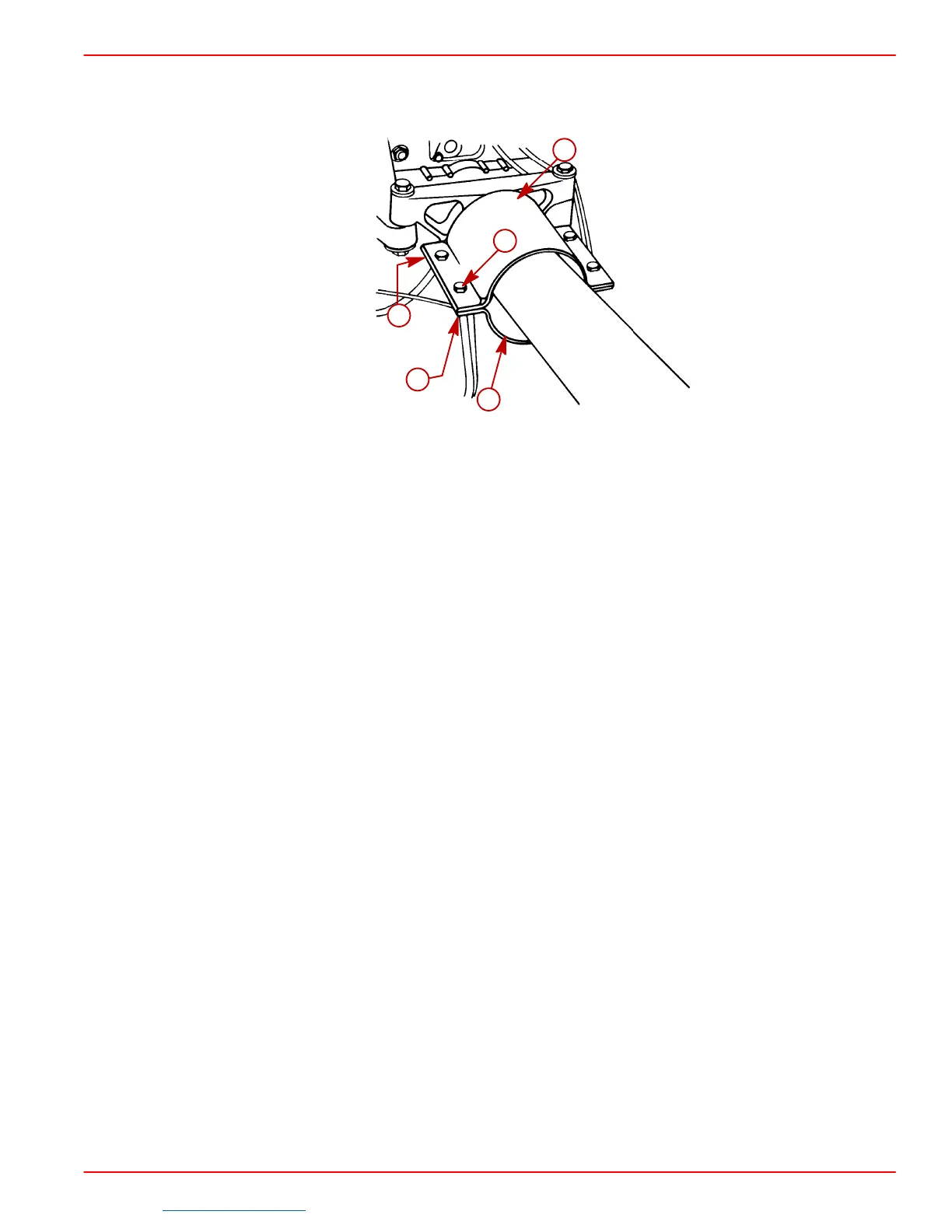

Top Shield and Bottom Shield at Transom End (Engine End Similar)
a-Top Shield
b-Bottom Shield
c-Bolt 3/8-16 x 7/8 in. (22 mm); 4 Used
d-Nut 3/8-16; 4 Used
e-Screws (3 Used - Hidden In This View)
