MULTI-PORT FUEL INJECTION DISASSEMBLY AND REASSEMBLY

SERVICE MANUAL NUMBER 23

90-861326--1 MARCH 1999 Page 5C-9

Throttle Body

NOTICE

Refer to “Precautions” in this section, BEFORE proceeding.

REMOVAL

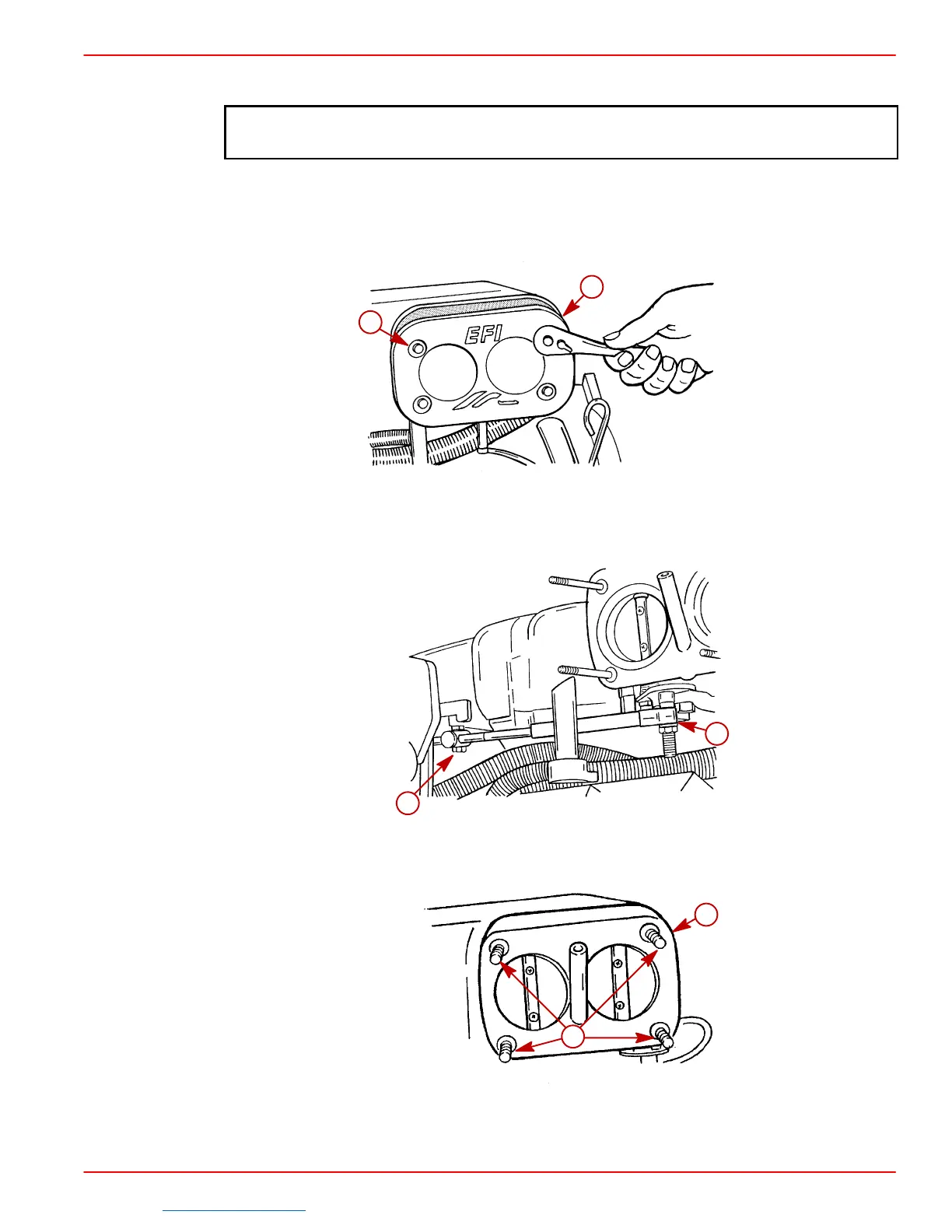

1. Remove four flame arrestor mounting cap nuts and remove flame arrestor from throttle

body.

72790

a-Flame Arrestor

b-Cap Nuts (4)

2. Disconnect throttle linkage.

72791

a-Throttle Linkage Connections

3. Remove four throttle body mounting studs using a stud driver.

72792

a-Throttle Body

b-Throttle Body Mounting Studs
