STARTING SYSTEM SERVICE MANUAL NUMBER 23
Page 4A-42 90-861326--1 MARCH 1999

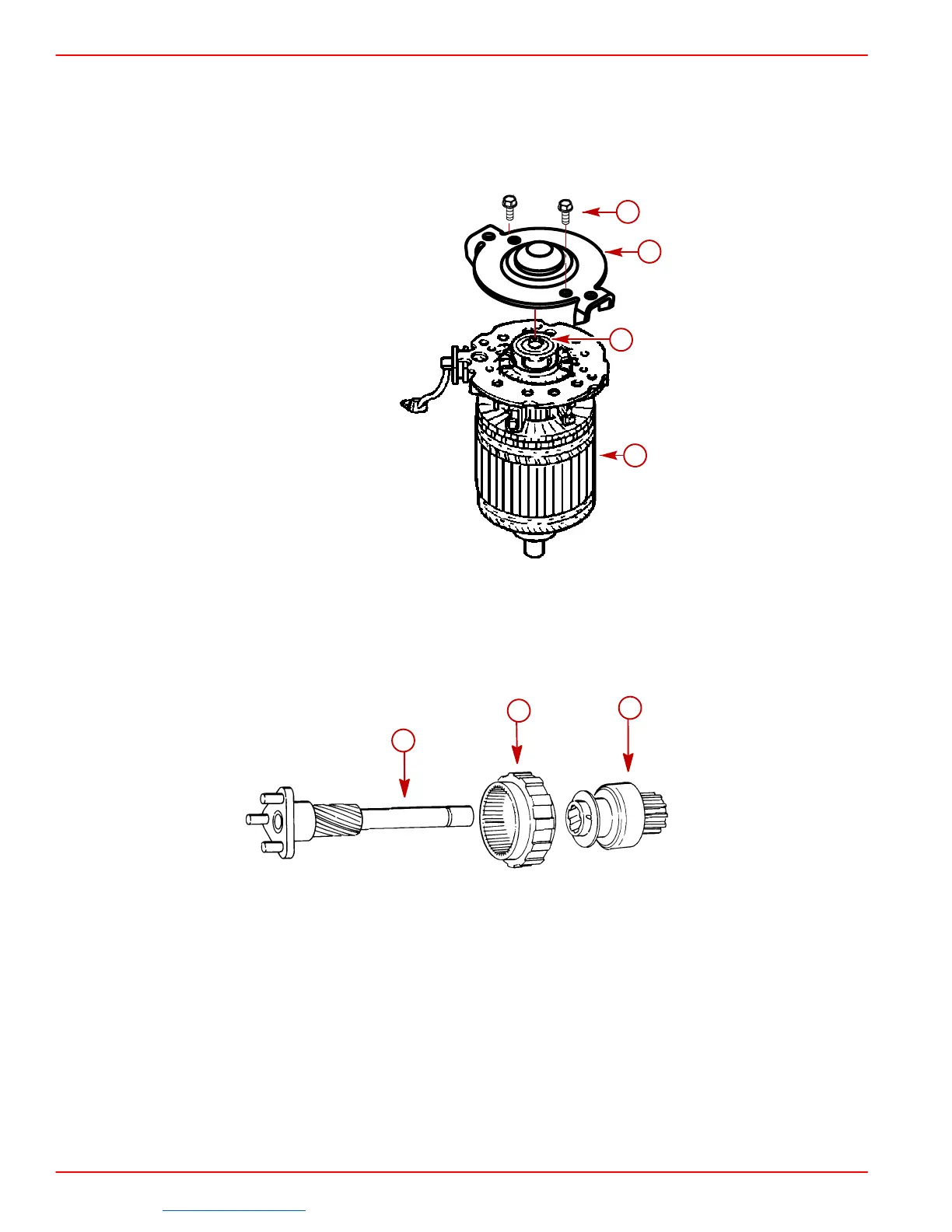

Reassembly
1. Install brush holder and bearing on armature.
2. Align brush lead grommet with field frame cut-out. Align holes of end frame with holes
of brush holder and drive housing. Install end frame on brush holder. Tighten screws
securely.
75821
d
c
b
a
a-Screw (2)
b-End Frame
c-Brush Holder
d-Armature
3. Install gear and drive over planetary gear shaft.
74087
a
b
c
Typical
a-Planetary Gear Shaft Assembly
b-Gear
c-Drive
