CLOSED COOLED (FRESH WATER) MODELS SERVICE MANUAL NUMBER 23

Page 6B-22 90-861326--1 MARCH 1999

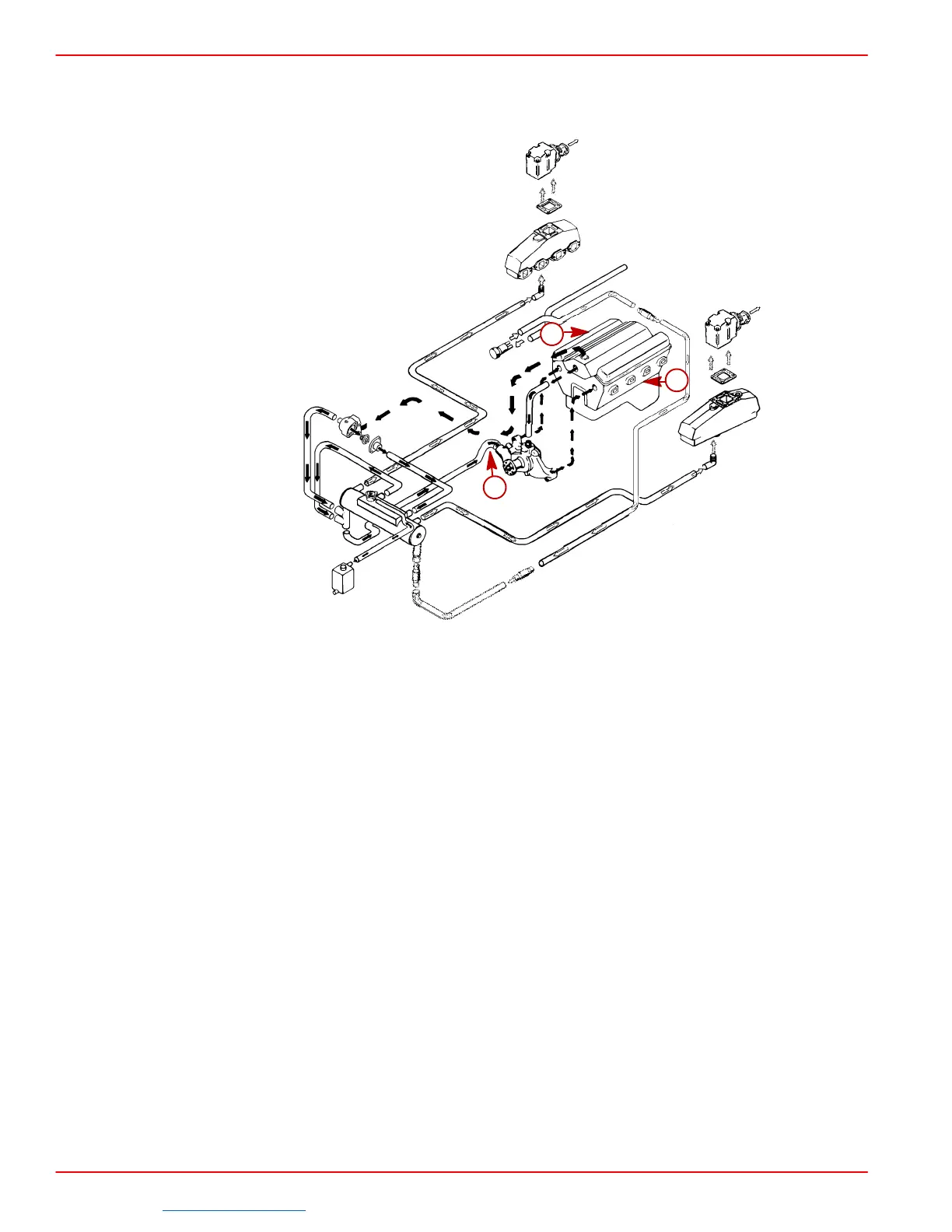

Draining Diagram (Coolant Section of System)

75005

a-Remove Hoses (Lift, Lower or Bend To Completely Drain).

b-Remove Block Plugs (Repeatedly Clean Out Holes Using A Stiff Wire Until

Entire System Is Drained).
