DRIVE SHAFT / PROPELLER SHAFT MODELS SERVICE MANUAL NUMBER 23

Page 8F-6 90-861326--1 MARCH 1999

3. Remove drive shaft fasteners and drive shaft.

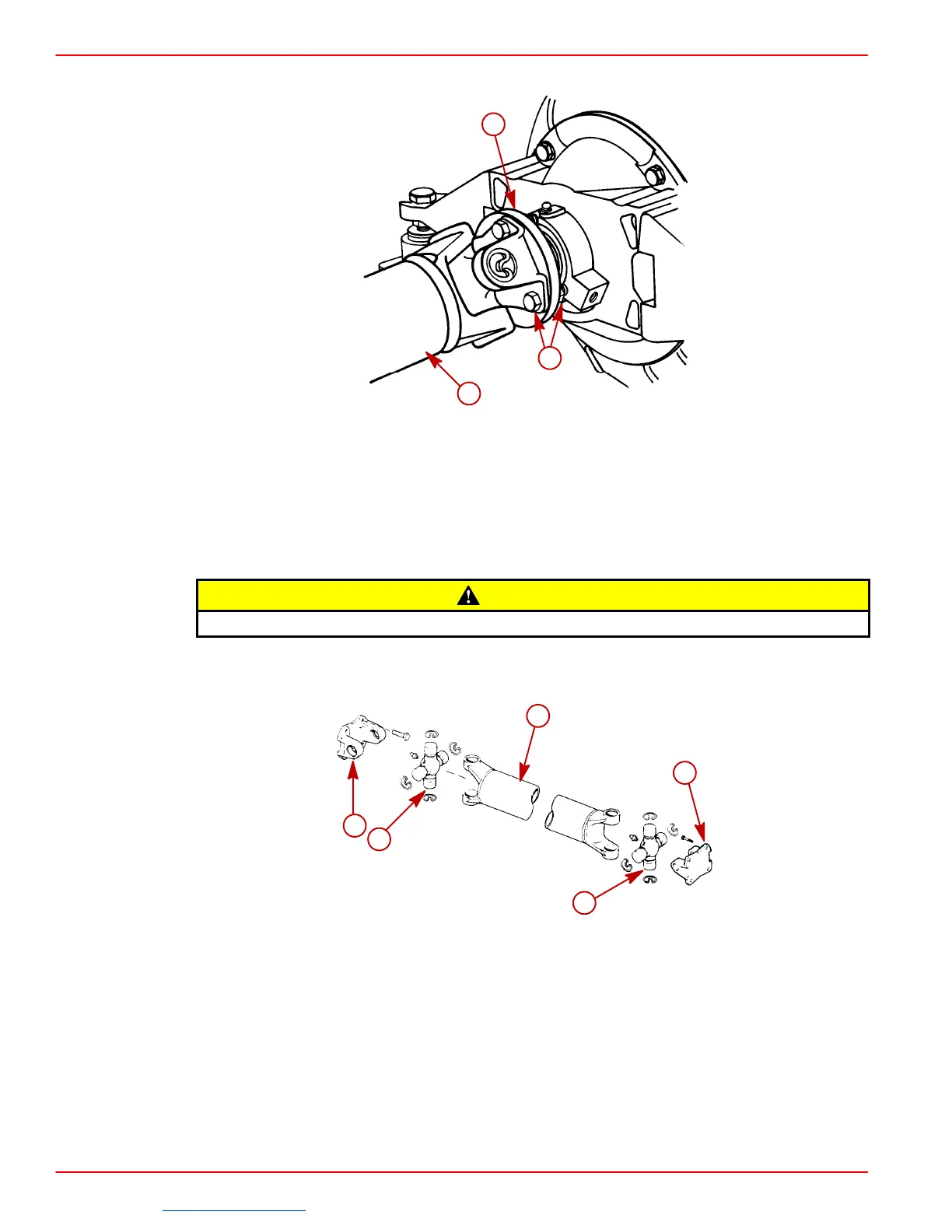

70237

Engine End Shown (Transom End Similar)

a-Output Shaft Flange

b-Drive Shaft

c-Bolt With Nut (4 Total)

Repair

CAUTION

Be sure U-joint locking rings are seated properly after replacing U-joints.

1. Replace U-joints, if required.

2. Replace flange, if required.

a-Flange

b-U-Joint

c-Drive Shaft
