Mercury MerCruiser MCM 502 Mag MPI

To Next Page

To Previous Page

WIRING DIAGRAMS SERVICE MANUAL NUMBER 23

Page 4E-12 90-861326--1 MARCH 1999

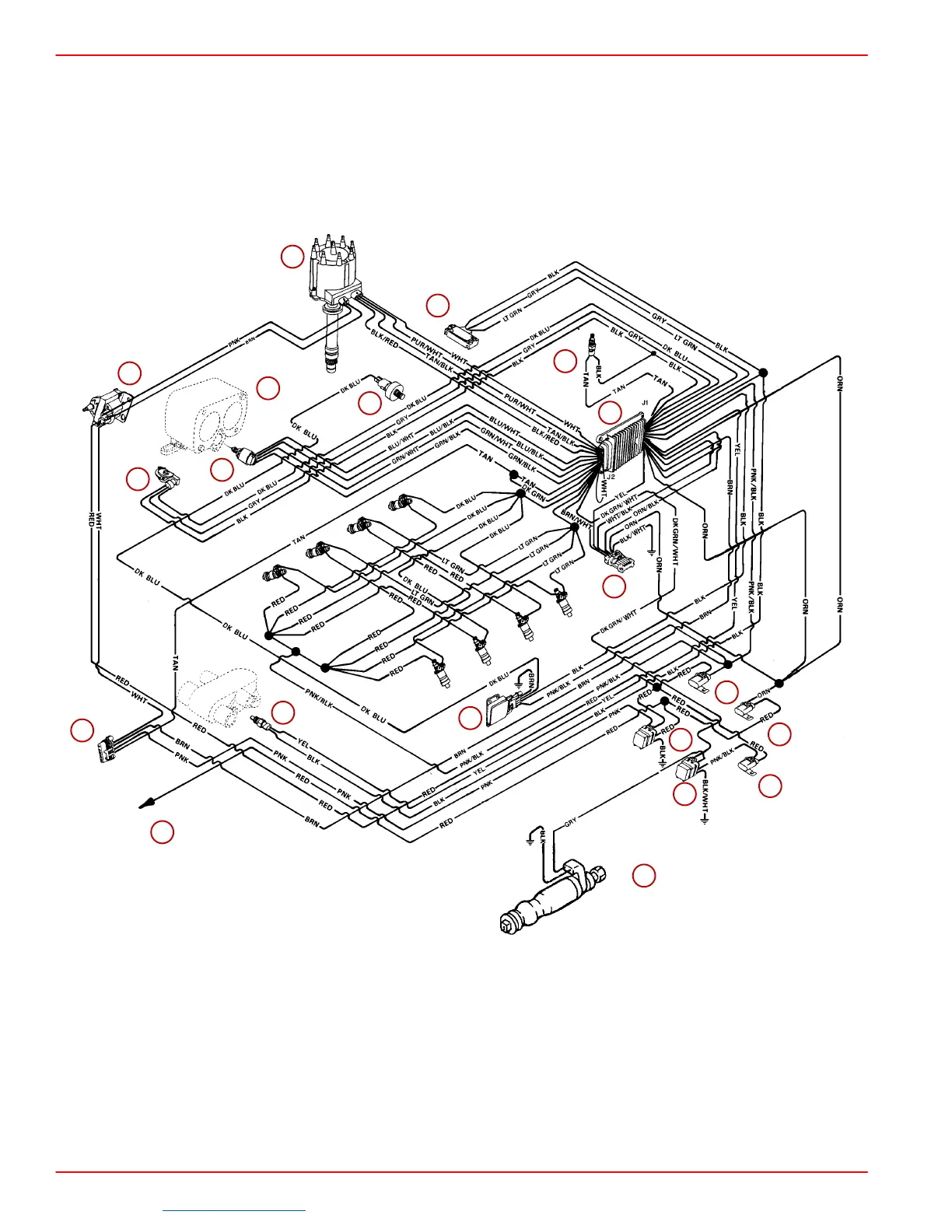

Fuel Injection Wiring Harness Diagrams

MEFI 1 MCM (Sterndrive) 454 / 502 Mag MPI and MIE (Inboard) 454 Mag MPI

Horizon and 8.2L MPI Models

NOTE: All BLACK wires with a ground symbol are interconnected within the EFI system

harness.

75635
