COLLECTORS SERVICE MANUAL NUMBER 23
Page 7D-10 90-861326--1 MARCH 1999

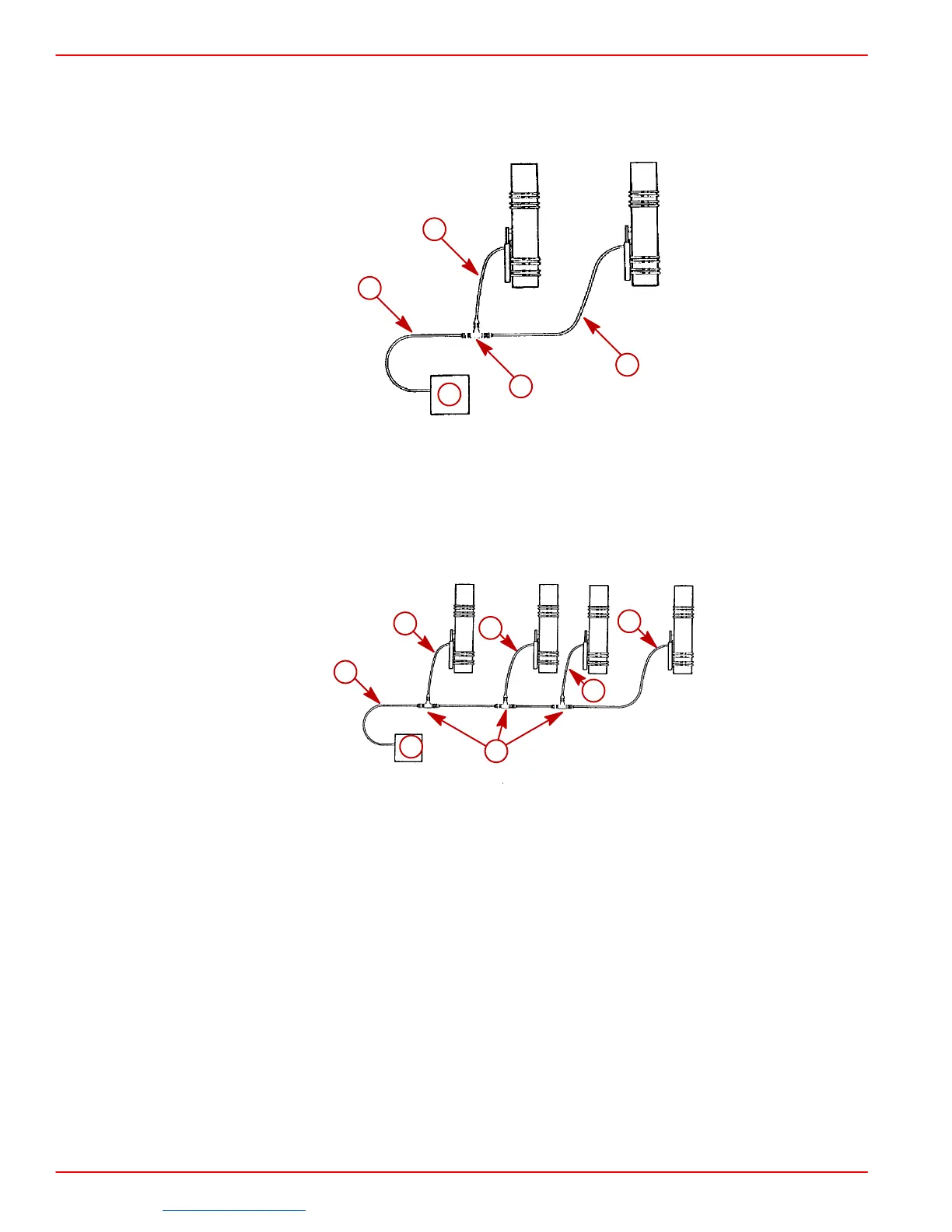

Air Tube Routing
1. Route air tubing from air pump to silencer valve cylinders. Do not route air tubing close
to hot surfaces. Excessive heat will damage air tubes.
72775
c
d
b
a
d
Single Engine
a-Air Tube
b-T-Fittings
c-Air Pump Assembly
d-Air Tube To Air Cylinder - On Each Silencer Valve
72776
a
c
b
d
d
d
d
Dual Engine
a-Air Tube
b-T-Fittings
c-Air Pump Assembly
d-Air Tube To Air Cylinder - On Each Silencer Valve
